SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fi re or explosion may
result causing property damage, personal
injury, or loss of life.
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of
this or any other appliance.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone 1 (866) 820-8686 • www.napoleonfi replaces.com • hearth@napoleonproducts.com
$10.00
NEFL32CHS / NEFL42CHS / NEFL50CHS / NEFL60CHS / NEFL74CHS / NEFL100CHS
NEFL32CHD / NEFL42CHD / NEFL50CHD / NEFL60CHD / NEFL74CHD / NEFL100CHD
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
- SWALLOWING MAY LEAD TO SERIOUS INJURY IN AS LITTLE AS 2 HOURS
OR DEATH, DUE TO CHEMICAL BURNS AND POTENTIAL PERFORATION OF
THE OESOPHAGUS.
- IF YOU SUSPECT YOUR CHILD HAS SWALLOWED OR INSERTED A
BUTTON BATTERY, IMMEDIATELY SEEK URGENT MEDICAL ASSISTANCE.
- EXAMINE DEVICES AND MAKE SURE THE BATTERY COMPARTMENT IS
CORRECTLY SECURED, E.G. THAT THE SCREW OR OTHER MECHANICAL
FASTENER IS TIGHTENED. DO NOT USE IF COMPARTMENT IS NOT
SECURE.
- DISPOSE OF USED BUTTON BATTERIES IMMEDIATELY AND SAFELY. FLAT
BATTERIES CAN STILL BE DANGEROUS.
- TELL OTHERS ABOUT THE RISK ASSOCIATED WITH BUTTON BATTERIES
AND HOW TO KEEP THEIR CHILDREN SAFE.

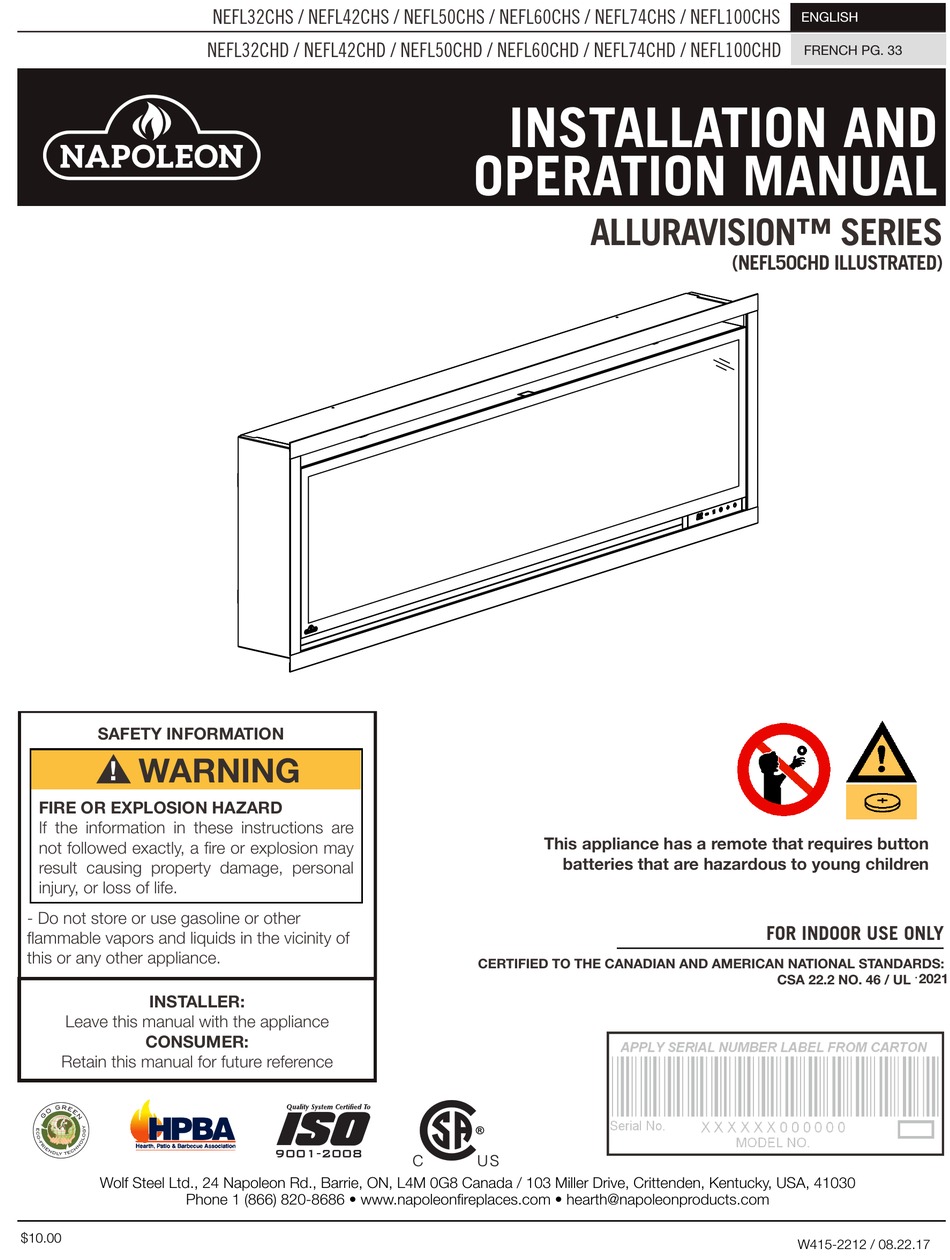

INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
ALLURAVISION™ SERIES
WARNING!
ADD BUTTON BATTERY WARNING IF APPLICABLE
This appliance has a remote that requires button
batteries that are hazardous to young children
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA /
INTERTEK
LOGO
ENGLISH
FRENCH PG. 33
PRODUCT NAME™

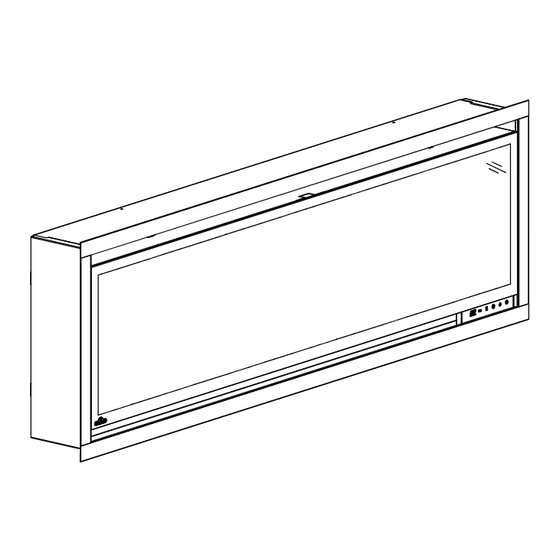

(NEFL50CHD ILLUSTRATED)
ADD PRODUCT CODE
(IF MULTIPLE, _____ ILLUSTRATED)
ADD PRODUCT IMAGE
FOR INDOOR USE ONLY
CSA 22.2 NO. 46 / UL 1278
W415-2212 / 08.22.17
A
AVERTIS
ENFANTS
- L'INGESTION PEU
HEURES OU LA MO
RATION POTENTIE
- SI VOUS PENSEZ
BOUTON, CONSUL
- EXAMINEZ LES A
BATTERIE EST BIE
2021
EST SERRÉE. NE P
- ÉLIMINER LES PI
SÉCURITÉ. LES PI
- RENSEIGNEZ-VO
FAÇON DE GARDE
