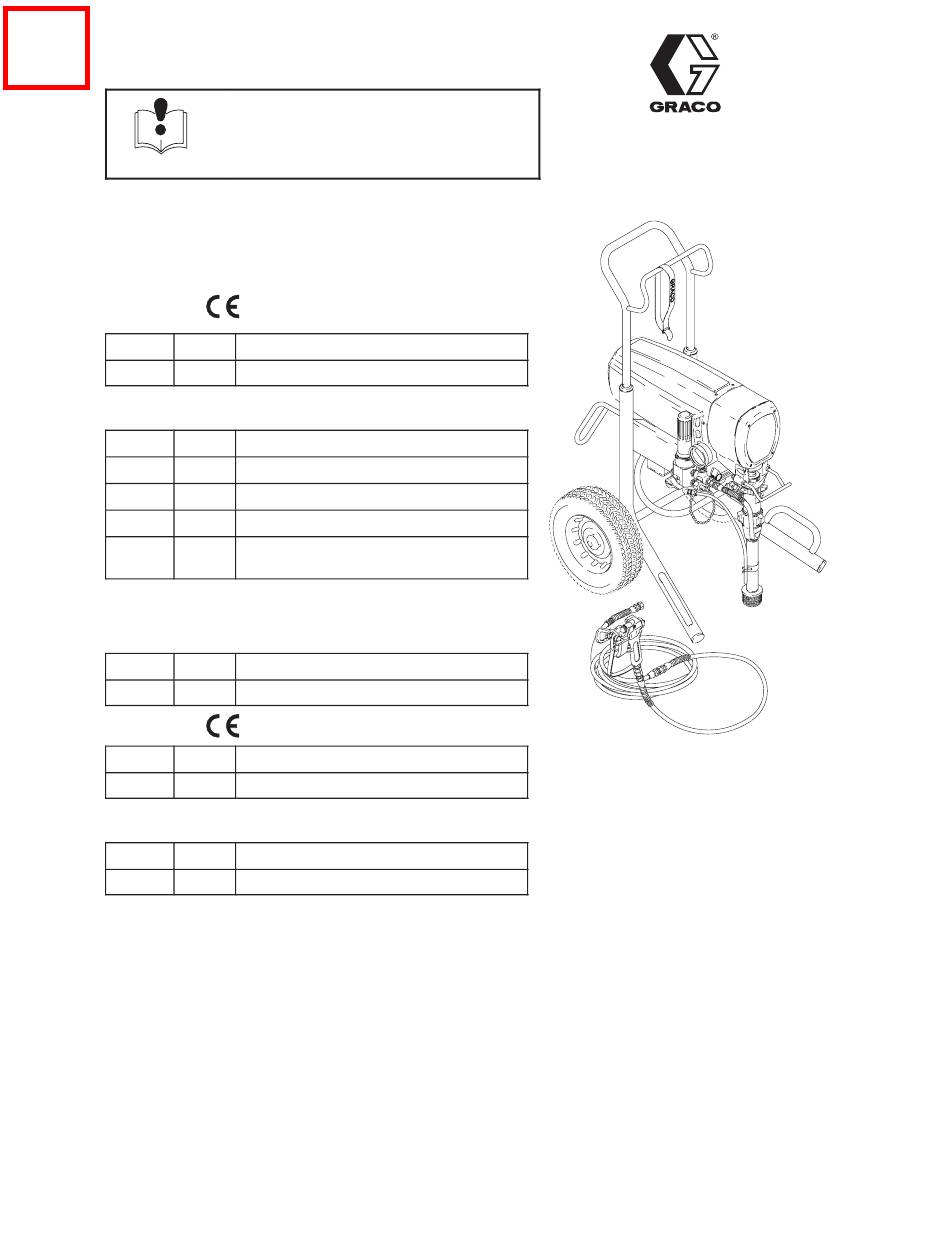

INSTRUCTIONS-PARTS LIST
KEEP FOR REFERENCE.
Read this and all related manuals for
important warnings and instructions.
INSTRUCTIONS
Airless Paint Sprayers
3000 psi (210 bar, 21 MPa ) Maximum Working Pressure
ULTRArMAX 1595
230 VAC
Model
Series
232164
A
Hi-boy with RAC IVt tip, gun and hose
120 VAC
Model
Series
232160
A
232161
A
Hi-Boy with RAC IV tip, gun and hose
232162
A
232163
A
CSA/UL Hi-Boy with RAC IV tip, gun
MARK Vt
100 VAC
Model
Series
232166
A
230 VAC
Model
Series
232173
A
Hi-boy with RAC IVt tip, gun and hose
120 VAC
Model
Series
232171
A
Hi-Boy with RAC IV tip, gun and hose
All models are not available in all countries
Component Function and Identification
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Control Wiring
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bearing Housing & Connecting Rod Replacement
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Description
Description
Hi-Boy
CSA/UL Hi-Boy
and hose
Description
Hi-Boy
Description
Description
Table of Contents
. . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
.
ECOPYRIGHT 1998, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.t
Related Manuals
Operator
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement Pump
Spray Gun
. . . . . . . . . . . . . . . . . . . . . . . . .
Spray Tip
. . . . . . . . . . . . . . . . . . . . . . . . . . .
3
5
4
Parts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Technical Data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
13
Graco Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
308854
Rev. F
8194A
Model 232164
308855
. . . . . . . . . . . . . . . . .
308798
308491
308644
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
15
16
18
23
23
23
24
24
