Minimum RC F8F Rare Bear
(MicronWings Version)

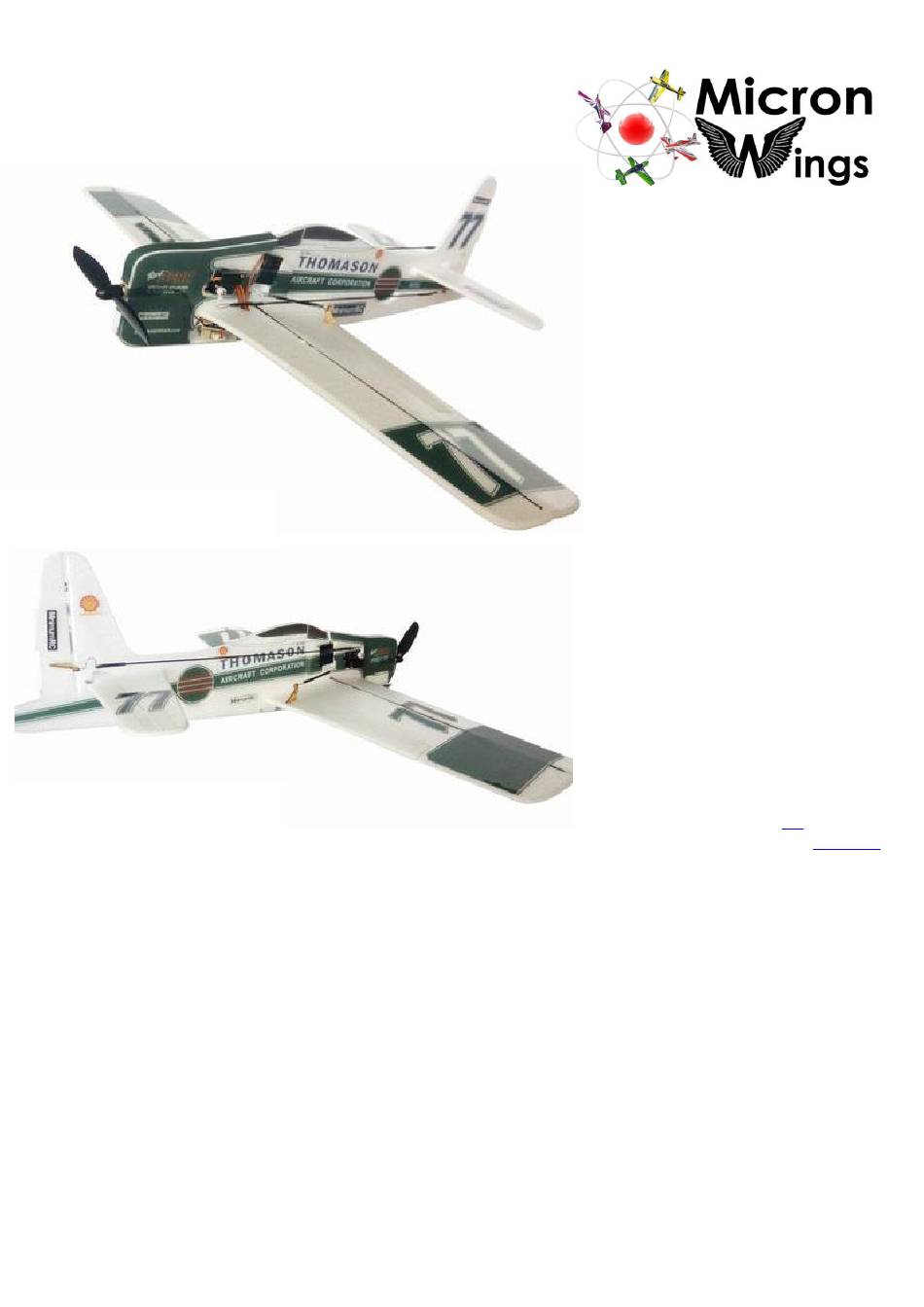

MicronWings sells this deluxe version of the F8F Rare Bear
under license from the manufacturer, Minimum RC. The
MicronWings Deluxe Version features an airframe cut from
3mm Depron as well as improved design features and the
addition of ailerons to make this a true 4 channel model.
The Rare Bear is small enough to be flown indoors (sports
stadium area) by an experienced RC pilot and is also
capable of being flown outside on a calm day. With a direct
drive 7mm x 20mm brushed motor, this model has the
power and speed to perform basic aerobatics such as rolls
and loops.
Specifications
Wingspan: 36cm
Flying Weight: 30 grams
Channels: 4
Suggested Receiver: 4Ch Micro
Motor: 7mm Brushed Direct Drive
Airframe Kit
(Included Contents)
* Airframe Parts Sheets (Depron)
* Airframe Bracing Parts (Plywood)
* Motor and Propeller
* Control Linkages + Pushrods
* Sandpaper Sheet
* Decal Stickers
Needed to Complete
* Micro Receiver with 2A ESC
* Three Micro Servos (5320 Servos)
* Transmitter and Battery Charger
* Battery (DualSky 150mah 1S)
* Soldering Iron with Fine Tip
* Epoxy Glue
* UHU Por Expanded Polystyrene Glue
* Hobby Knife
* Blenderm Hinge Tape
* Modelling Tape - Optional
* Ruler (metal preferred)
* Fine tip scissors
* Tweezers
(with battery)
(Link)
(Product
Link)
