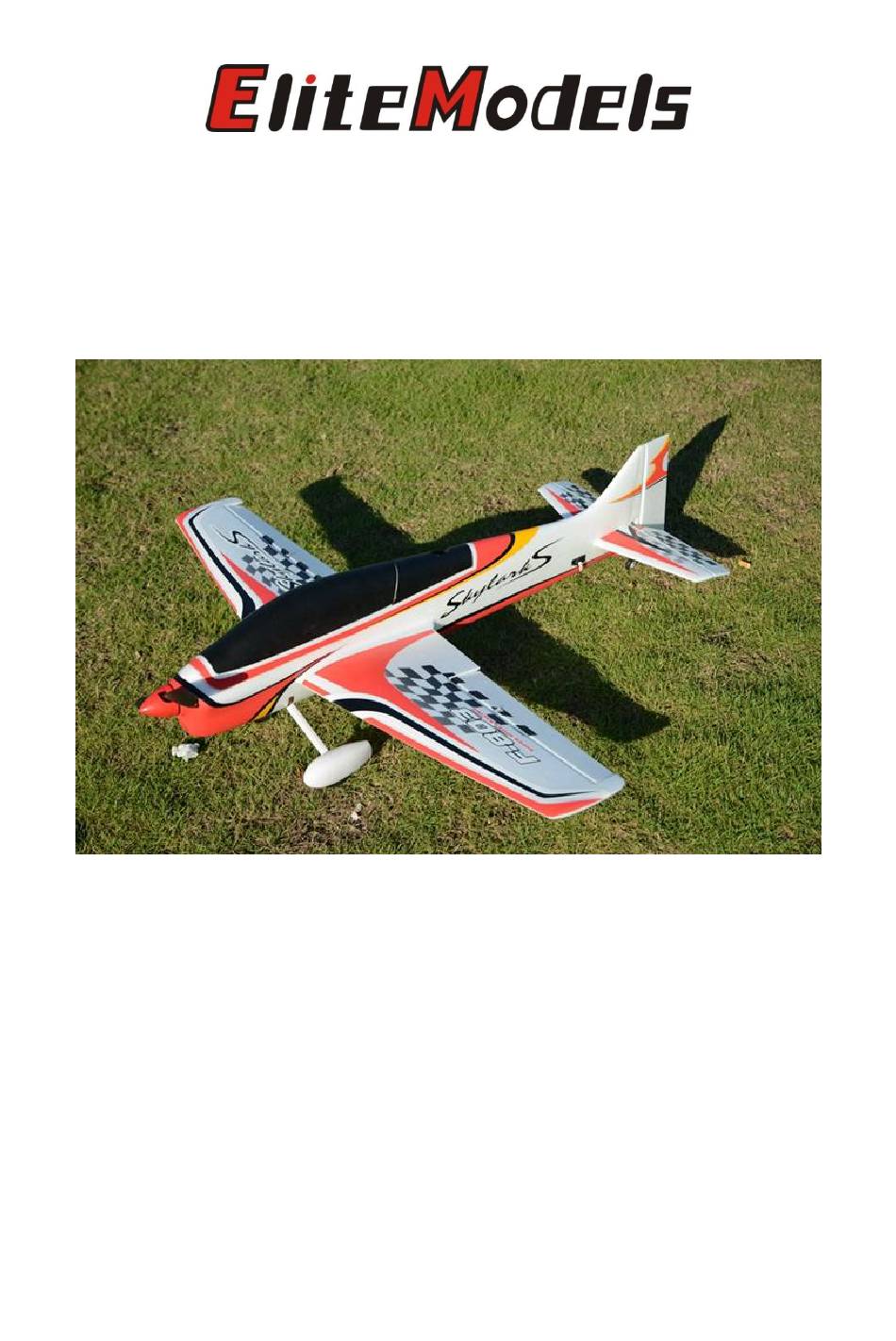

- Page 1 37in Skylark-S Kit and PNP Versions Specifications Wingspan:37.4 in (950mm) Length:40.5 in (1030mm) Flying Weight: 760g...
- Page 2 Dear Customer, Congratulations on your purchase of Skylark-S Kit from Value Hobby. We thank you for your generous support, and hope you enjoy your new airplane. At Value Hobby, we hope to offer competitive prices, good performance, and products that you can setup and use with ease.
- Page 3 Before Starting Assembly Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. Airframe Parts 1. Fuselage 2. Left and right wing 3. Elevator 4. Vertical fin 5.
- Page 4 8. Part bag 9. Propeller 10. Wheel housing RECOMMENDED EQUIPMENT Product Quantity FrSky Taranis Q X7 Transmitter FRY-RC-5938 GForce Elite Series 2200mAh 3S LiPO FLM-LP-1874 Imax B6 Balance Charger w/ Power Supply IMX-CH-5458 GForce E450 Brushless Motor (2835-1200KV)* VHB-MT-5297 GForce 40A Brushless ESC* VHB-SC-4494 Towerpro SG90* TWP-SV-3214...
- Page 5 Secure the PU tire into wheel housing with landing Then secure it with fixed wooden plate and screws. gear wire. Insert main wing into the fuselage. Secure the wing on the fuselage with the rubber O- ring. Install the assembled landing gear into the pre-cut slot on the bottom of fuselage.
- Page 6 KIT version only: Secure control horn on the elevator. Install Z-bend wire into the hole of clear control horn clip Connect control horn clip to the servo on the elevator. Clip the control horn into the control horn clip. Use some foam safe glue to secure the elevator into the pro-cut slots on the tail of fuselage Secure the rudder into the slot on the fuselage with foam safe glue...
- Page 7 KIT version only: Locate a E450 size or similar Connect your ESC to the battery. brushless motor. Secure it into the fuselage with four The CG should be 110mm (4.3-4.4in) from the leading screws. edge of the wing. KIT version only: Connect 40A ESC to your motor.
