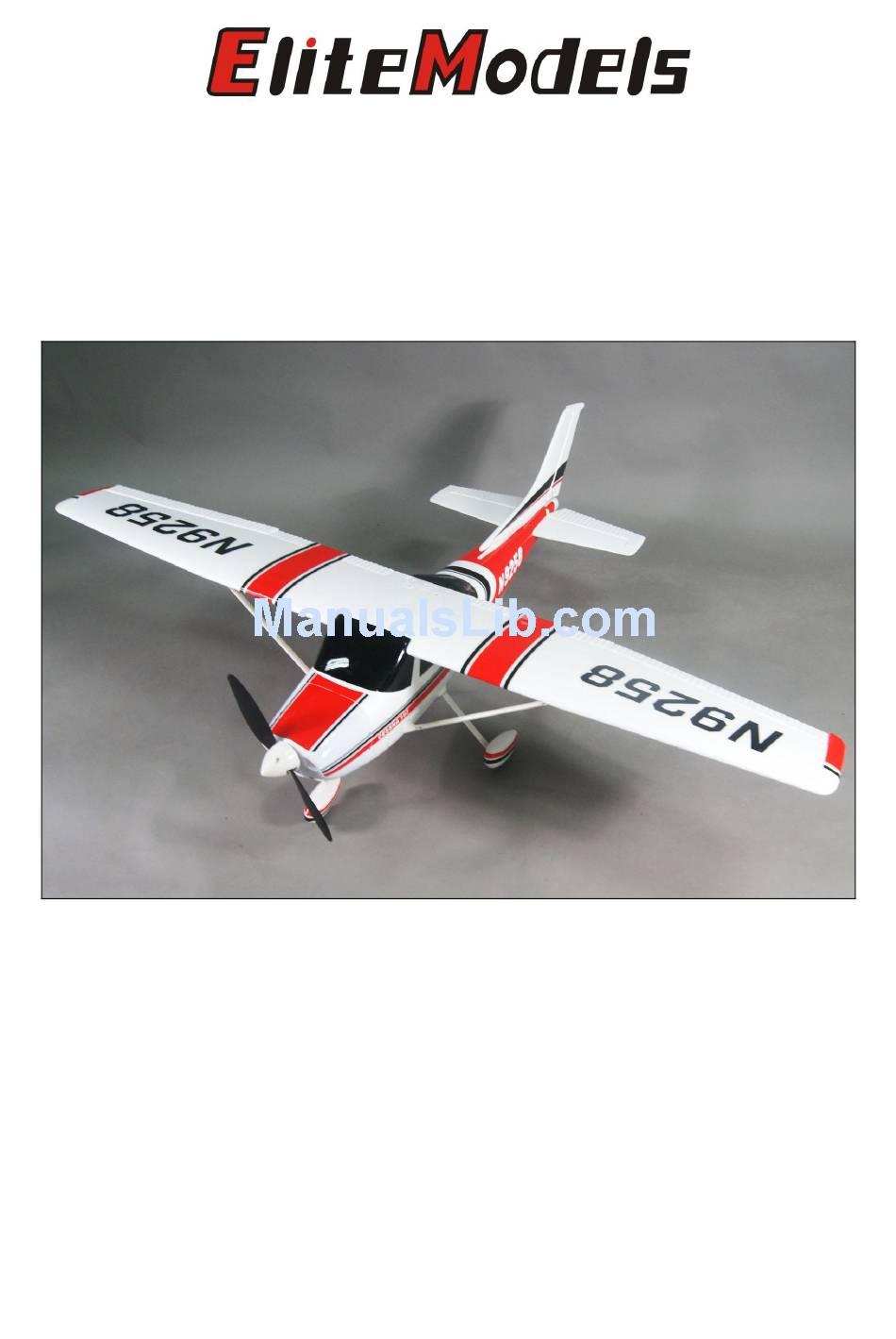

Page 1: Instruction Manual
55in Cessna 182 RTF/PNP Instruction Manual Wing Span: 55.5in (1410mm) Length: 40.6in (1030mm) Wing Area: 424sq in (27.35dm) Flying Weight: 2.4lb (1080g) - Page 2 Parts (PNP version) Package contents: 1. Fuselage 11. 900kv brushless motor 2. Wing 12. Hobbywing Skywalker 30A ESC 3. Horizontal tail 13. 9g x 4 servo 4. Vertical tail 14. 11 x 4.7 prop 5. Cowling 15. Spinner 6. Main landing gear 16.
- Page 3 Assembly Step1. Apply the foam glue onto the wing root Step5. Install nose wheel to the fuselage. and the fiberglass wing tube. Step2. Attach two wing panels together. Step6. Install the wing onto the fuselage. Step3. Attach the main wheels to the landing gear. Step7.
- Page 4 Step8. Cut a slot at the tail of the fuselage for the Step12. With the elevator servo centered, connect horizontal tail. the pushrod to the control horn. Step9. Insert and glue the horizontal tail onto the fuselage. Step13. Install the prop and spinner to the motor. Step10.
-
Page 5: Radio System Setup
5. Move throttle stick upwards to go flying Radio system Setup For more ESC setup information, please refer to the Instruction below is for RTF version (Flysky FS-T4B radio manual for Hobbywing Skywalker series. system) Receiver Connections Center of Gravity The recommended CG is 60mm from the leading edge of the wing.
