  • Page 1 MZSpro Bedienungsanleitung MZSpro User manual...
  • Page 2 Ausgangsspannungen zu ihrem Verbrauch- are set to appropriate value er passen, da dieser sonst zerstört werden before hooking up any other kann! Für Nichtbeachtung übernehmen wir device. MD can’t be responsible keine Haftung. For any damage if this is disregarded. HINWEIS: Funktionsausgang A3...
  • Page 3: Table Of Contents

    Inhaltsverzeichnis Table of Contents Grundlegende Informationen General information Funktionsumfang Summary of functions Lieferumfang Scope of supply Inbetriebnahme Hook-Up Anschlussbuchsen Connectors Produktbeschreibung Product description Rückmeldung Feedback PC-Einbindung PC-Inclusion Reichweite für Funk Option Reach for wireless option PC Steuerung PC controlling Technische Daten Technical data Garantie, Reparatur Warranty, Service, Support...
  • Page 4: General Information

    Grundlegende Informationen General information Wir empfehlen die Anleitung gründlich We recommend studying this manual zu lesen, bevor Sie Ihr neues Gerät in thoroughly before installing and Betrieb nehmen. operating your new device. HINWEIS: Einige Funktionen sind nur mit NOTE: Some funktions are only der neusten Firmware nutzbar, führen available with the latest firmware.
  • Page 5: Summary Of Functions

    Funktionsumfang Summary of Funktions ▪ DCC Zentrale für alle DCC Decoder Booster for all protocolls ▪ 100% DCC NMRA und LGB® kompatibel 100% DCC NMRA and LGB® compatible ▪ Betriebsspannung 14 – 24 V Operating voltage 14 – 24 V ▪...
  • Page 6: Scope Of Supply

    Lieferumfang Scope of supply ▪ Bedienungsanleitung Manual ▪ mXion MZSpro Digitalzentrale mXion MZSpro digital central unit MZSpro...
  • Page 7: Hook-Up

    Inbetriebnahme Hook-Up Bauen bzw. platzieren Sie Ihr Install your device in compliance with Gerät sorgfältig nach den Plänen the connecting diagrams in this manual. dieser Bedienungsanleitung. The device is protected against shorts and Die Elektronik ist generell gegen excessive loads. However, in case of a Kurzschlüsse oder Überlastung connection error e.g.
  • Page 8: Connectors

    Anschlussbuchsen Connectors Achten Sie auf ausreichend großen Querschnitt Make sure you have sufficiently large cross je nach Leistungsabgabe (Empfohlen: 2.5 mm section depending on the power output. Achten Sie auf die Trennung, wenn Sie mehrere Pay attention to the separation, if you Booster oder Zentrale/Booster-Gemisch betreiben.
  • Page 9: Product Description

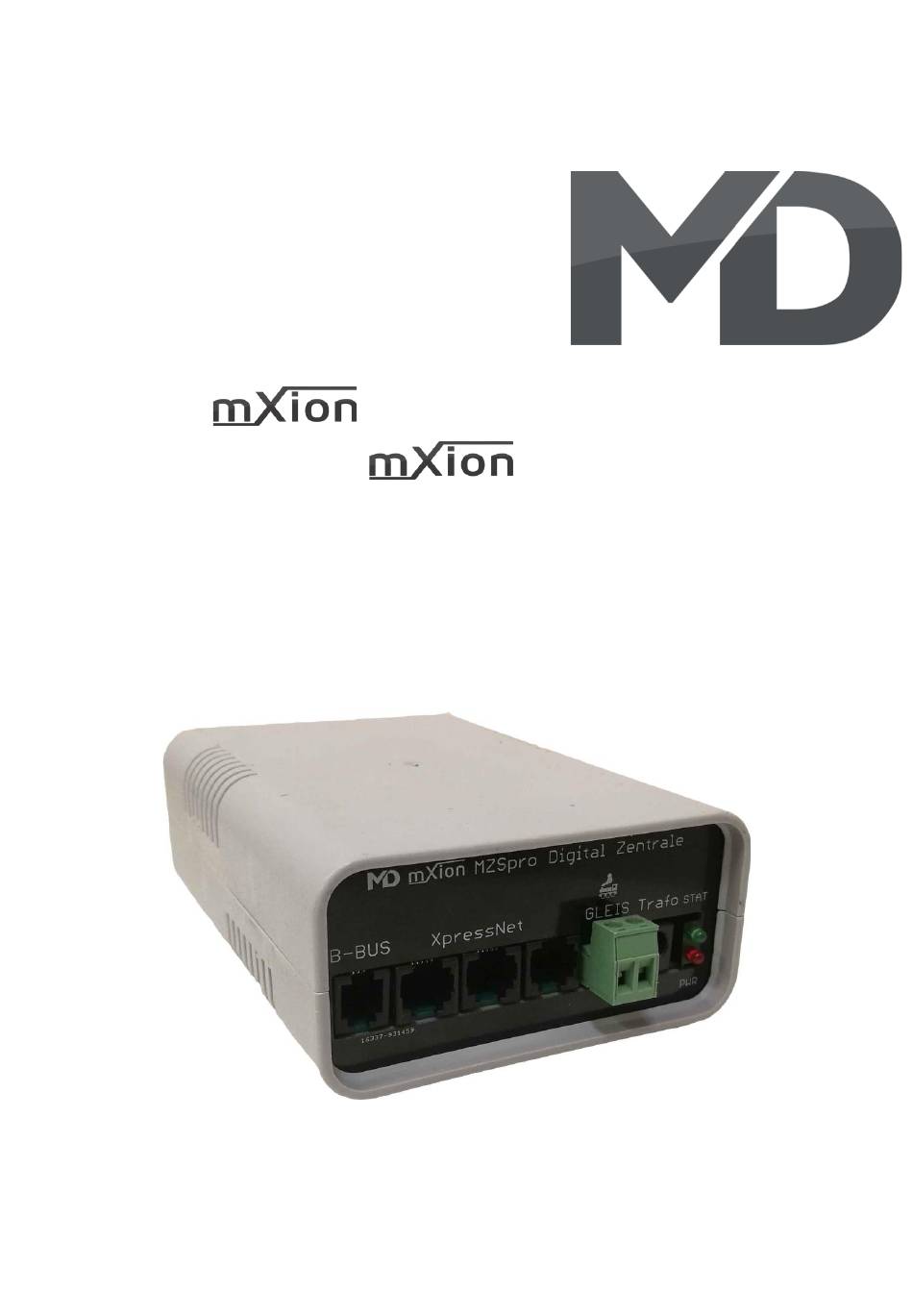

    Produktbeschreibung Product description Die mXion MZSpro ist unsere kleinste und The mXion MZSpro is our most compact kompakteste Zentrale mit einer Dauerleistung von and smallest digital controlling unit with 8A. Ausgestattet mit 3 Anschlüssen für Steuer- und an output of 8 Amps. for the tracks.
  • Page 10: Feedback

    Feedback Um eine PC gestützte Steuerung zur ermöglichen ist To enable a PC based control system it es möglich, unsere Rück- und Belegtmelder (MD-700x) is possible to use our feedback and an die Zentrale anschließen zu können. Dies funktioniert occupancy detectors (MD-700x) to be able entweder über Kabel (XpressNet) oder drahtlos per Funk.
  • Page 11: Pc Controlling

    In addition to automated control via the mit bspw. RocRail® gibt es eine einfache Alternative PC with RocRail® for example there is a von uns. Mit unserem MD-DCC-TOOL können (zu simple alternative from us. With our finden auf unserer Website im Downloadbereich)
  • Page 12 Über „TEST“ können Sie Loks fahren, Funktionen schalten und Züge pendeln lassen lassen. With "TEST" you can drive locomotives, switch functions and let trains commute. MZSpro...
  • Page 13: Technical Data

    Technische Daten Technical data Spannung: Power supply: 14 - 24V DC 14 – 24V DC Nur Gleichstromtrafos nutzen! Only use DC-Trafos! Stromaufnahme: Current: 50mA, abgeschaltete Stufe 50mA, switched off booster Maximaler Gesamtstrom: Maximum current: 10A kurzzeitig 10 Amps. for short time 8A dauerhaft 8 Amps all time Temperaturbereich:...
  • Page 14: Warranty, Service, Support

    Return kein Garantieanspruch. Der Anspruch auf shipping charges are not covered by Serviceleistungen erlischt unwiderruflich. MD Electronics. Please include your proof of Auf unserer Internetseite finden Sie die purchase with the returned good. Please jeweils aktuellen Broschüren,...
  • Page 15: Hotline

    Hotline Hotline Bei Serviceanfragen und Schaltplänen For technical support and schematics for für Anwendungsbeispiele richten Sie sich application examples contact: bitte an: MD Electronics MD Electronics info@md-electronics.de info@md-electronics.de service@md-electronics.de service@md-electronics.de www.md-electronics.de www.md-electronics.de MD-TV MD-TV MZSpro...
