Summary of Contents for MD mXion PGS

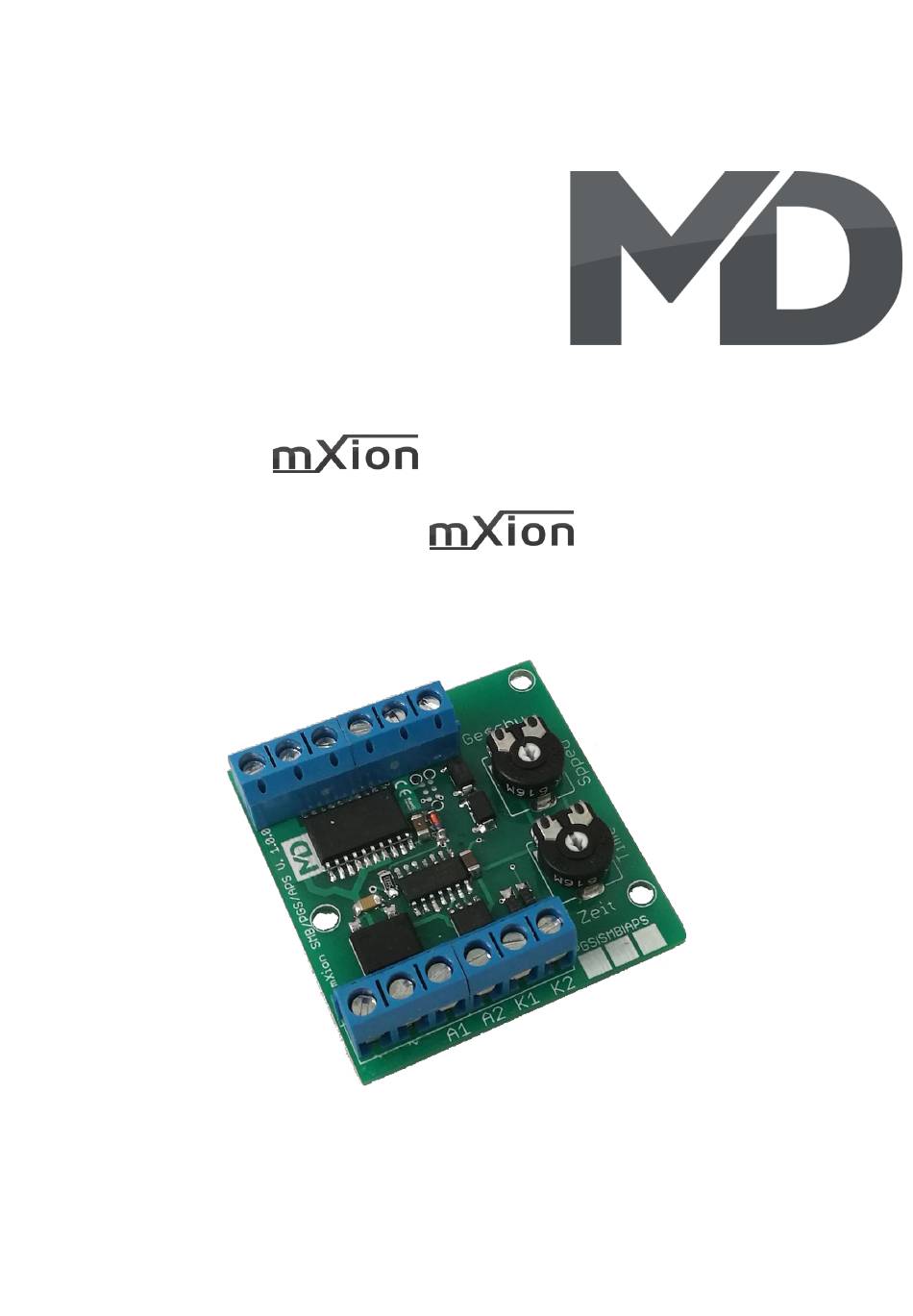

  • Page 1 PGS Bedienungsanleitung PGS User manual...
  • Page 2 Ausgangsspannungen zu ihrem Verbrauch- are set to appropriate value er passen, da dieser sonst zerstört werden before hooking up any other kann! Für Nichtbeachtung übernehmen wir device. MD can’t be responsible keine Haftung. For any damage if this is disregarded. HINWEIS: Funktionsausgang A3...
  • Page 3: Table Of Contents

    Inhaltsverzeichnis Table of Contents Grundlegende Informationen General information Funktionsumfang Summary of functions Lieferumfang Scope of supply Inbetriebnahme Hook-Up Anschlussbuchsen Connectors Anschluss Analogbetrieb Connection analog operation Anschluss Digitalbetrieb mit Decoder Connection digital with decoder Produktbeschreibung Product description Technische Daten Technical data Garantie, Reparatur Warranty, Service, Support Hotline...
  • Page 4: General Information

    Grundlegende Informationen General information Wir empfehlen die Anleitung gründlich We recommend studying this manual zu lesen, bevor Sie Ihr neues Gerät in thoroughly before installing and Betrieb nehmen. operating your new device. Bauen Sie das Modul an einem geschützten Place the decoder in a protected location. Platz ein.
  • Page 5: Summary Of Functions

    Funktionsumfang Summary of Funktions ▪ DC/AC/DCC Betrieb DC/AC/DCC operation ▪ 2 Motorausgänge (je 0,8A) 2 engine outputs (each 0,8A) ▪ 2 Kontakteingänge 2 contact inputs ▪ 2 Funktionsausgänge 2 function outputs ▪ Poti zur Einstellung von Geschwindigkeit Poti for speed ▪...
  • Page 6: Scope Of Supply

    Lieferumfang Scope of supply ▪ Bedienungsanleitung Manual ▪ mXion PGS mXion PGS...
  • Page 7: Hook-Up

    Inbetriebnahme Hook-Up Bauen bzw. platzieren Sie Ihr Install your device in compliance with Gerät sorgfältig nach den Plänen the connecting diagrams in this manual. dieser Bedienungsanleitung. The device is protected against shorts and Die Elektronik ist generell gegen excessive loads. However, in case of a Kurzschlüsse oder Überlastung connection error e.g.
  • Page 8: Connectors

    Anschlussbuchsen Connectors Gleichstrommotor 1 Gleichstrommotor 2 DC-Engine 1 DC-Engine 2 Versorgungsspannung Power supply Kontakt-Eingänge (Masse schaltend) Kontact-Input (Ground switched)
  • Page 9: Connection Analog Operation

    Anschluss Analogbetrieb Connection analog operation...
  • Page 10: Connection Digital With Decoder

    Anschluss Digitalbetrieb mit Decoder Connection digital op with decoder K1/K2 an Funktionsausgang des Decoder. K1/K2 connect to function output. Versorgungsspannung an DEC+ und DEC-. Supply voltage to DEC+ and DEC-. DEC+ | DEC- F1 | F2...
  • Page 11: Product Description

    Produktbeschreibung Product description Das mXion PGS ist ein vielseitig einsetzbares Modul. The mXion PGS is a versatile module. Ideal geeignet ist es, um Pantographen steuern zu Ideally it is to control pantographs too. können. Damit wird je ein Stromabnehmer an je einen This is ever a pantograph to each one motor Motorausgang angeschlossen.
  • Page 12: Technical Data

    Technische Daten Technical data Spannung: Power supply: 7-25V DC/DCC 7-25V DC/DCC 5-18V AC 5-18V AC Stromaufnahme: Current: 10mA (ohne Funktionsausgänge) 10mA (without functions) Maximaler Funktionsstrom: Maximum function current: A1/A2 je 1A A1/A2 each 1A Mot1/Mot2 je 0,8A Mot1/Mot2 each 0,8A Temperaturbereich: Temperature range: -20 bis 80°C...
  • Page 13: Warranty, Service, Support

    Return kein Garantieanspruch. Der Anspruch auf shipping charges are not covered by Serviceleistungen erlischt unwiderruflich. MD Electronics. Please include your proof of Auf unserer Internetseite finden Sie die purchase with the returned good. Please jeweils aktuellen Broschüren,...
  • Page 14: Hotline

    Hotline Hotline Bei Serviceanfragen und Schaltplänen For technical support and schematics for für Anwendungsbeispiele richten Sie sich application examples contact: bitte an: MD Electronics MD Electronics info@md-electronics.de info@md-electronics.de service@md-electronics.de service@md-electronics.de www.md-electronics.de www.md-electronics.de MD-TV MD-TV...
