Mounting Bracket

iDynamo 6 provides a universal mounting bracket that
can be used to mechanically stabilize its connection
with the host and provide a more secure, integrated
feel for cardholders to interact with.
To install the optional mounting bracket:
1. Use a paper clip to slide the small covers out of
the mounting bracket retaining holes on each
side of iDynamo 6's housing. Set them aside for
possible future use.

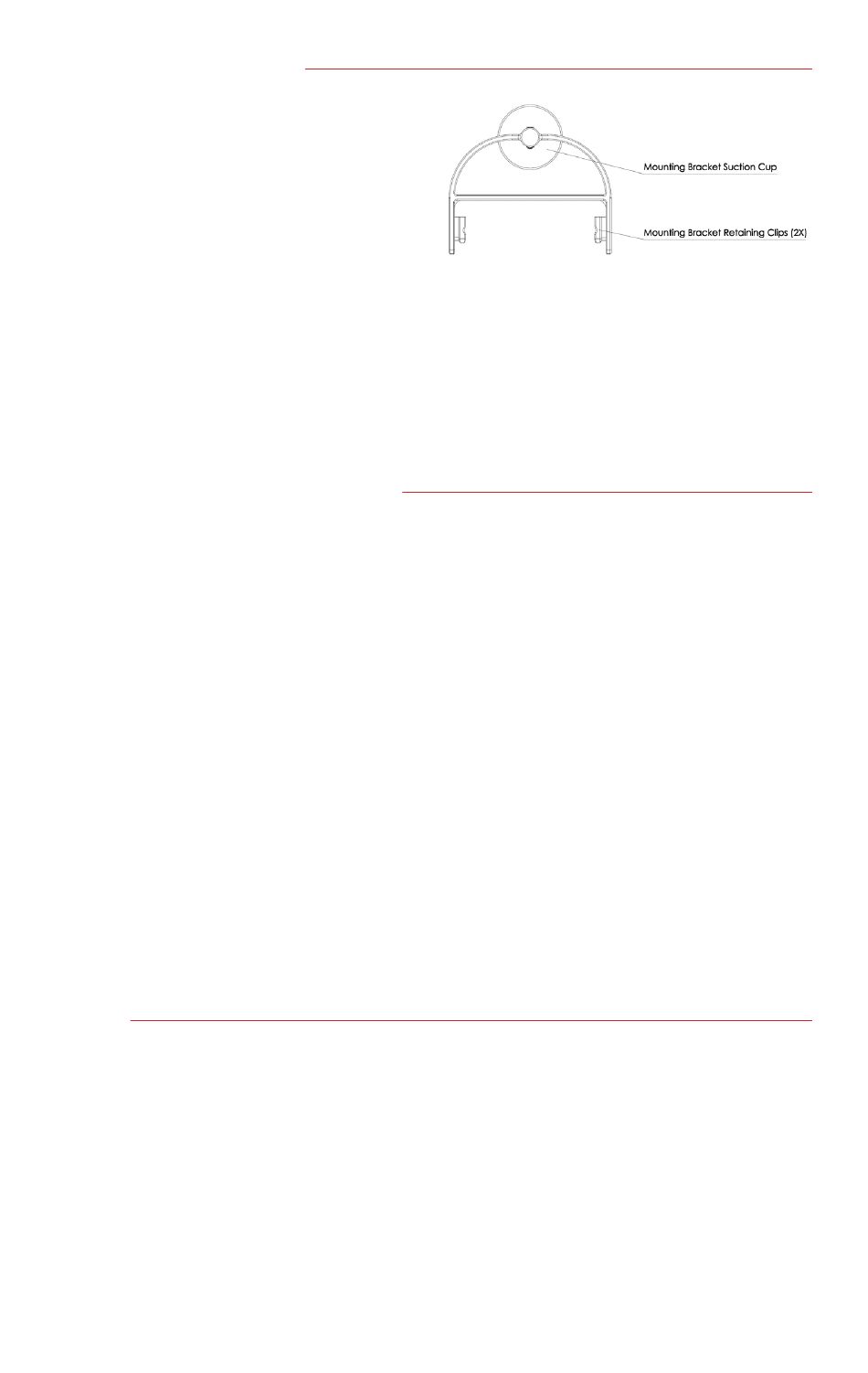

2. Slide the mounting bracket's retaining clips into
iDynamo 6's retaining holes until you feel them
seat firmly in place.
3. Make sure the mounting bracket suction cup is clean.
4. Make sure the rear surface of the host is clean.
5. After connecting iDynamo 6 to the host, press the mounting bracket's suction cup onto the rear surface
of the host.
To uninstall the mounting bracket, reverse the steps above, including re-inserting the retaining hole covers. The
mounting bracket resists slightly when being pulled out of the retaining holes, but is designed to be removable
without damage.

How to connect to iOS Host

iDynamo 6 connects to an iOS-based host via the Lightning plug or USB-C plug, depending on which
connector the chosen host provides.

How to Connect to an iOS Host Using the Lightning Plug

1. Power on the iOS host.
2. Plug iDynamo 6 into the host's Lightning connector.
3. After a few seconds, the iOS host will pop up an App Not Installed window. Press the App Store button
to open the App Store and browse through the list of all compatible apps.
4. Install and configure the host software you intend to use with iDynamo 6.
5. Make sure the host software is configured to look for the device on the proper connection type.
6. Make sure the host software is configured to look for the correct device.
7. Make sure the host software is configured to properly interpret incoming data from the device.
8. Use the host software or the MagTek Test app to test swiping, inserting, and tapping a card.

To disconnect iDynamo 6 from an iOS host

1. Make sure all installed apps that use iDynamo 6 are either closed or disconnected.
2. Turn off the host's display to avoid accidentally launching or interacting with apps.
3. Disconnect the cable from the USB-C receptacle, if one is connected.
4. Carefully disconnect iDynamo 6 by pulling it straight out from the host's Lightning connector.
How to Connect to an iOS Host Using the USB-C Plug
• Details about connecting iDynamo 6 to an iOS-based host using the USB-C plug are slated for release in
a future revision of this manual.

LEDs

• Off-Off: The device is not connected to a host and is not receiving power.
• Green-Solid: Device is receiving power from the host, and is ready for the host software to connect;
and the battery pack is not charging and its charge level is good.
• Amber-Solid: Battery pack is not charging and its charge level is fair. Charge when possible.
• Red-Solid: Battery pack is not charging and its charge level is low. Charge immediately.
• Red-Slow blink: Battery pack is charging and its charge level is low. Continue charging.
• Amber-Slow blink: Battery pack is charging and its charge level is fair. Continue charging if possible.
• Green-Slow blink: Battery pack is charging and its charge level is high. Continue charging if desired.
• Green-Fast flash: A cardholder's card is currently swiping in the card path, or has just exited the card
path but has not yet been completely decoded by the device.
• Green-Solid on 2
• Red-Solid on 2 seconds: Device could not read a swiped card.
• Blue-Solid: Host is loading firmware onto the device.
seconds: Device has successfully read a swiped card.
