Maintenance Instructions
To reduce costs, the filter(s) may be carefully power-washed with
a soap solution and reused. Be sure to wash and rinse both sides
and be sure to keep the spray head at least 6 inches away from
the filter to prevent damage.
Correct airflow may be restored by either replacing the filter(s),
which can be done without tools, or by cleaning the filters.

HVAC Filters

NOTE: There are three
configurations: top access, side access and front access
HVAC filter housings.
204
possible cab HVAC filter

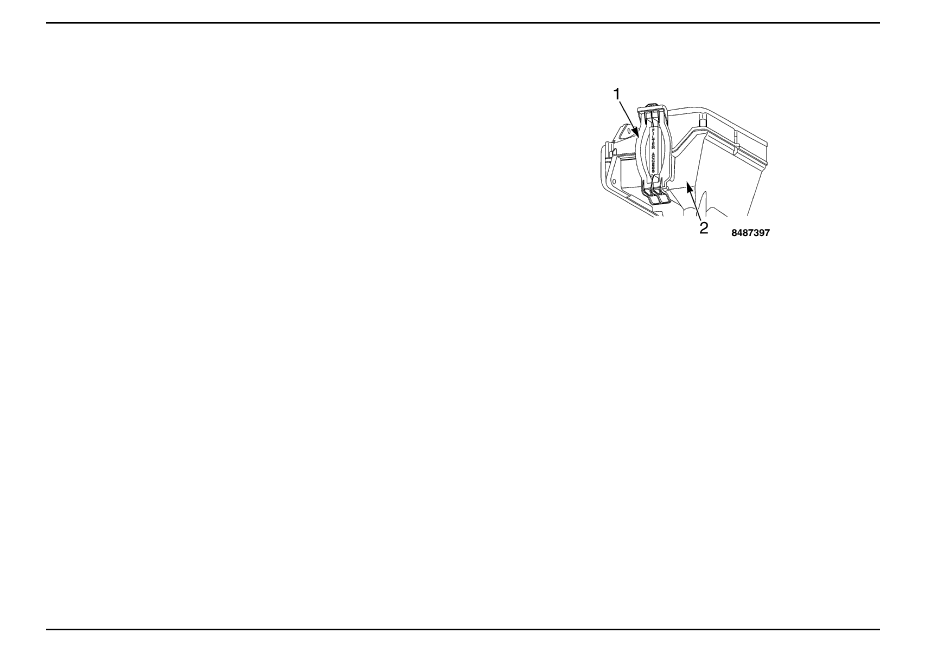

Side Access HVAC Filter

1. Filter Access Door
2. Air Intake Housing
Cab HVAC Filter Replacement – Side Access
1. Unlatch and remove filter access door.
2. Remove filter by pulling filter out of air intake housing.
3. Install new filter by sliding filter into air intake housing.
4. Install filter access door and latch in place.
