Summary of Contents for Ecotric Folding Fat Bike

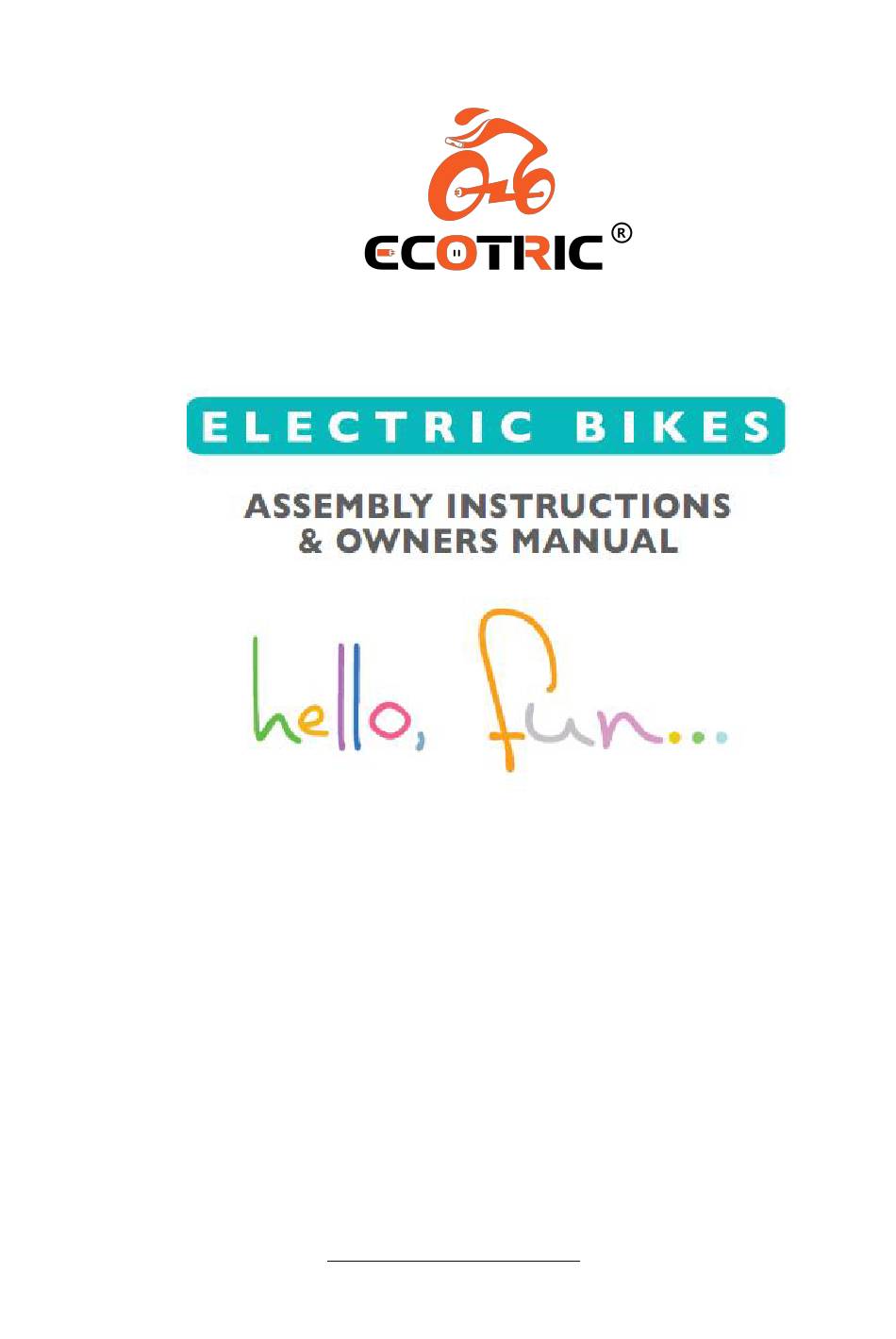

- Page 1 WWW.ECOTRIC.COM...
-
Page 2: Table Of Contents
Troubleshooting--------------------------------------------------------------------------------- 21 Simple Maintenance Tips for your Electric Bike--------------------------------------------22 Warranty information--------------------------------------------------------------------------23-24 ECOTRIC BIKE Models------------------------------------------------------------------------25 The wiring diagram------------------------------------------------------------------------------26 RECORDING YOUR ECOTRIC BIKE INFO----------------------------------------------26 CARTON CONTENTS (x1) Kit Box (x1) ECOTRIC Bike (x2) Pedals (x1) Saddle (x1) Owner’s user Manual... -
Page 3: Note
First of all, we would like to thank you for choosing the ECOTRIC electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your personal mobility. Our brushless, electric hub motor allows you to run errands or commute to work while saving money on gas and reducing your environmental impact on our world. -
Page 4: Warning
For replacement parts, technical information and warranty assistance, please contact ECOTRIC BIKE at service@ecotric.com YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS BICYCLE. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Your bike has been pre-assembled and requires only a few simple steps For Handle bar to get it ready for you to ride: 1. Carefully remove your bike from the carton and gently rest it in place with the kickstand down. -
Page 6: Folding Bike
ASSEMBLY INSTRUCTIONS For Folding Fatbike Guide for folding: How to fold frame. Battery Operation For Folding Fatbike How to fold head stem vertically. To remove or insert the battery The battery is fully inserted in the battery holder, to remove the battery, turn the key to the "Off"... -
Page 7: Front Wheel
ASSEMBLY INSTRUCTIONS CAUTION: Your Electric bike is equipped with a front disk brake. Be careful not to For Front wheel damage the disk, caliper or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk is correctly inserted in the caliper. -
Page 8: For Seat Post And Pedals
ASSEMBLY INSTRUCTIONS Make sure the seat is tight enough so that you can’t twist it out of alignment. For seat post and pedals Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust it . Move the clamp handle inward toward the seat post so it is held tight by the clamp. -
Page 9: Operating Procedures For Flash
OPERATING PROCEDURES For Flash Removable hidden lithium batteries on each side frame, already mounted with locks (Figure 1). The battery must be locked when riding or it may fall out. The keys for battery locks also operate power on/off switch which is located under the seat post (Figure 1). -
Page 10: For Seagull
OPERATING PROCEDURES For Seagull To remove or insert the battery Removable battery under the seat. Lift up the seat by loose the seat clamp(Figure 1) to create room to insert and remove the battery, move the seat away from the bike, turn the key to the "Off"... -
Page 11: For Fat Bike
OPERATING PROCEDURES For 26’ Fat bike To remove or insert the battery The battery is fully inserted in the battery holder, to remove the battery, turn the key from "off" position to "on" position( Figure 1), line up the grooves ( Figure 2)on the top of the battery and remove or insert the battery. -
Page 12: For Tornado
OPERATING PROCEDURES For Tornado To remove or insert the battery The battery is fully inserted in the battery holder, to remove the battery, turn the key to the "Off" position and press the key to "UNLOCK" position, lift up the battery along with the holder and remove or insert the battery. -
Page 13: Battery And Charger Care
BATTERY AND CHARGER CARE The charger will charge a fully depleted battery in 5—6 hours. The indicator light on the charger will be red when battery is charging and will turn green when fully charged. Avoid subjecting the battery to high temperatures, such as directly under the sun, for prolonged periods of time. -
Page 14: Safety
SAFETY Helmet: Always wear an approved helmet while riding your bike and follow the helmet manufacturer’s instructions for it, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your Bike and to comply with all applicable laws. -
Page 15: General Warning
GENERAL WARNING Like any sport, bicycling involves risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and to practice— the rules of safe and responsible riding and of proper use and maintenance. -
Page 16: Meter Programming & Use 800 Or 810 Led
Meter Programming & Use 800 or 810 LED Operations: Press ON/FF to start the power: Press 6km/h to have cruise 6km/h speed automatic riding without pedals Press mode to select the pedal assistant power with pedals and throttle (Low-Med-High) Low=40% of max speed;... -
Page 17: S700 Lcd
Meter Programming & Use S700 LCD 1) Battery level: 5 levels, voltage interval could be customized 2) Speed：Average SPEED/MAX SPEED 3) Speed unit：Kmh/MPH 4) 6km mode 5) Assist level：actual assist level 0~5. 6) Head light icon：indicates when head light and back light are on 7) Distance：Trip/ODO 8) Driving Duration 9) Error code：“ERROR”... - Page 18 Backlight-P01, press up or down button to change the brightness (range is 1 to 3) Speed unit-P02, press up or down button to change between MPH and KMH. Voltage-P03, press up or down button to change the voltage 24v/36v/48v.Please ...
-
Page 19: S900 Lcd
Meter Programming & Use S900 LCD 1) Speed ：Average SPEED/MAX SPEED 2) Speed unit ：Kmh/MPH 3) Battery level: 5 levels, voltage interval could be customized 4) Head light icon ： indicates when head light and back light are on 5) Error code ： “ERROR” and code when there is error 6) Assist level ：actual assist level 0~5, 0 –no assist, 1- ECO, 2,3-STD，... - Page 20 Sleep time interval setting-P04. Press up or down button to change the time, range from 0 to 60 minutes. Display will sleep and cut off power after no operation on system for the selected time, the default value is 5 minutes. Assist level-P05.
-
Page 21: Troubleshooting
TROUBLESHOOTING - A Quick Checklist Here's a quick checklist for fault-finding if you should find yourself at the side of a road with a problem. In many cases, reported faults or problems are a simple case of understanding the product better but unexpected problems can happen. The following are some simple roadside assist tips for electrical problems: ... -
Page 22: Simple Maintenance Tips For Your Electric Bike
Simple Maintenance Tips for your Electric Bike Having an electric bike that breaks down or isn’t running smoothly is a real pain. Here are few simple things you can do to avoid this and keep it running smoother for longer. Electric bikes are bicycles that have additional technology to provide pedal assistance. -
Page 23: Warranty Information
WARRANTY INFORMATION We strive to make sure our items are accurately described so that people are clearly aware in advance of what they are getting, and anyone who has any doubts or questions we ask that you please contact us before placing an order. Nevertheless, it happens often enough that goods need to get sent back here whether for refund, exchange, or warranty. - Page 24 Bad connector Motor controllers have a 1 year warranty. Warranty only covers the controller when used with 36V or 48V battery packs with our own hub motors. Some examples of things that would be covered: Severed wire inside the controller enclosure ...
-
Page 25: Ecotric Bike Models
ECOTRIC BIKE MODELS Folding Fat Bike Flash 26’ Fat Bike Hummer Seagull Hummer-O Vortex Tornado Lark The stickers or components is for reference only, it may be different from your purchased item. Please refer to the item descriptions from our website. -
Page 26: The Wiring Diagram
The universal wiring diagram for all bike This wiring diagram is only for reference, if any question you have, please contact customer service for any repair. RECORDING YOUR ECOTRIC BIKE INFO BICYCLE SERIAL NUMBER: BATTERY SERIAL NUMBER: MODEL: COLOR: DATE OF PURCHASE: DEALER’S NAME:...
