Ecotric EST-MB Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EST-MB-XXX,
EST-W-XXX,
.
(XXX represents any alphanumeric character)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EST-MB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecotric EST-MB Series

Summary of Contents for Ecotric EST-MB Series

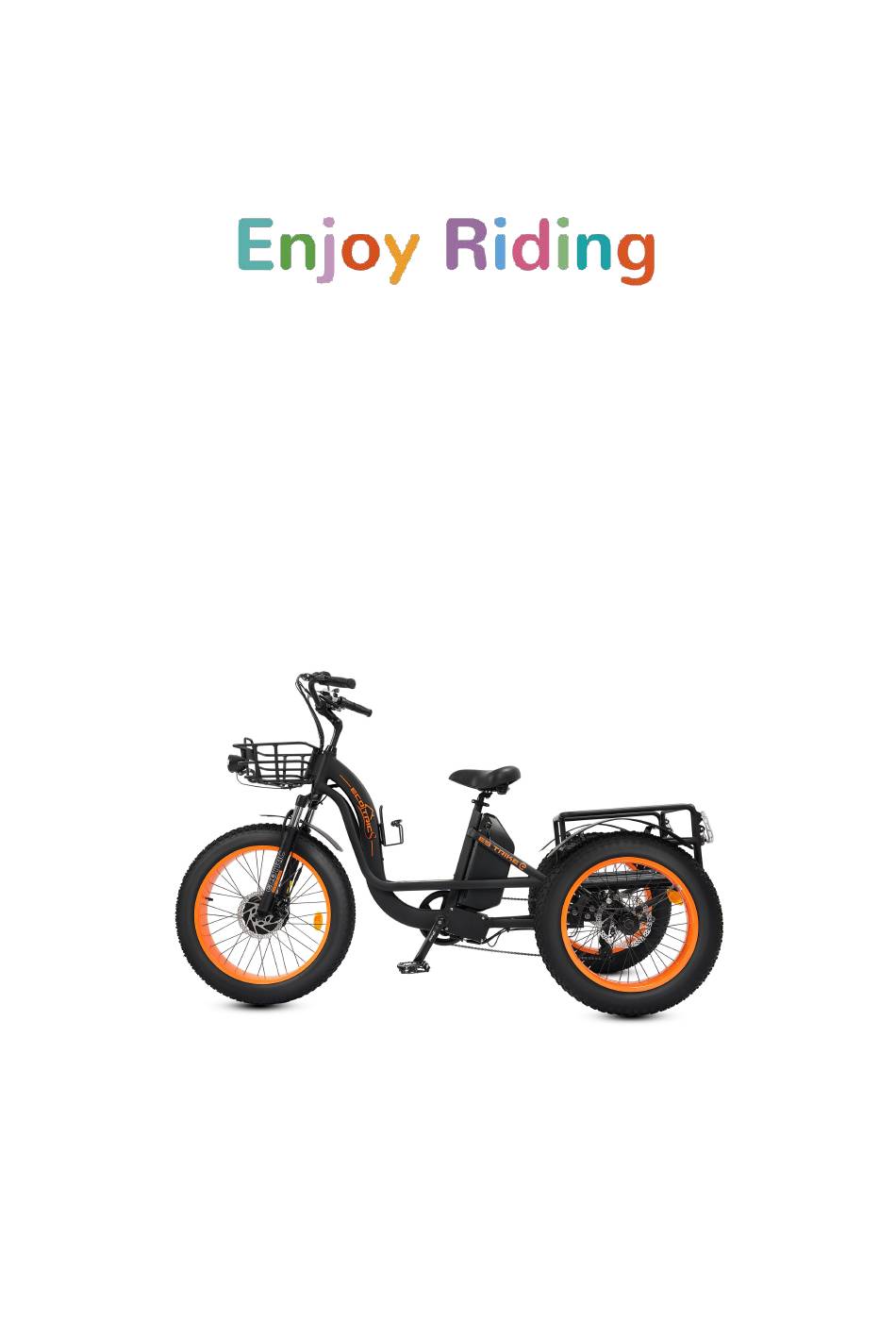

  • Page 1 EST-MB-XXX, EST-W-XXX, (XXX represents any alphanumeric character)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Carton Contents ..................................- 1 - WARNING ....................................- 3 - Avertissement ..................................- 4 - Assembling Instruction ................................- 5 - Rear frame，basket Installation ............................- 5 - Front wheel, handle bar and front basket Installation ....................- 7 - Display, front and rear lights Installation .........................
  • Page 3 First of all, we would like to thank you for choosing the electric trike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your mobility. Our brush-less electric hub motor allows you to run errands or commute to work while saving money on gas and reducing your environmental impact on our world.

  • Page 4: Warning

    WARNING Electric trikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the tricycle or system and all other losses or damages to themselves and others and to any property arising as a result of using the tricycle. As with all mechanical components, the tricycle is subjected to wear and high stresses.

  • Page 5: Avertissement

    Avertissement Le vélo électrique est dangereux.Hypothèses de l 'utilisateur ou du consommateur Le risque de lésions corporelles, d'endommagement ou de panne de tricyclette ou de système, ainsi que toutes autres pertes ou dommages causés à soi - même et à d'autres personnes ou à des biens du fait de l'utilisation de tricyclettes.

  • Page 6: Assembling Instruction

    Assembling Instruction Instruction d'assemblage Rear frame，basket Installation CAUTION: Your Electric trike equips with a front disk brake. Be careful not to damage the disk, caliper, or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk inserts correctly in the caliper.
  • Page 7 6. Install the rear basket to rear frame with hardware bag”②” (four M6*42L umbrella head socket head screws, nuts and washers) (Figure. 1-6). 7. Install the 4 L-shaped brackets above the rear wheels with hardware bag”③” (eight M6*10L cup head hexagonal screws, and washers) (Figure. 1-7). 8.

  • Page 8: Front Wheel, Handle Bar And Front Basket Installation

    Front wheel, handle bar and front basket Installation 1. Turn the front fork counterclockwise so that the fork is facing forward(Figure. 2-1), and then install the front caliper(Figure. 2-2). 2. Insert the stem of handle bar into the head tube of the frame, adjust the direction of the handle bar and tighten the top screw.

  • Page 9: Seat Post Installation

    2. Install the display on the rubber gasket on the handle bar(Figure. 3-2). Check whether the plugs of the display and buttons are loose. 3. Install the front light to the front basket with hardware bag”⑤”(M6*16 bolt, nut and washer), and them connect the light plug to display plug.
  • Page 10 2. Open the clamp on the seat tube, insert the seat post into the seat tube, adjust the seat to a comfortable height, tighten the tension adjusting nut, and press the clamp lever inward toward the seat tube(Figure. 4-2). - 9 -...

  • Page 11: Pedals Installation

    Pedals Installation 1. Identify left vs. right pedal There is an “L” or "R” stamped into the axle (the threaded part that looks like a screw) (Figure. 5-1) Please Note: They are not the same!! Apply a small amount of grease if possible. 2.

  • Page 12: Battery Installation & Removing & Charging

    Battery Installation & Removing & Charging 1. Battery Installation Turn the key(normally the keys are tied on the clamp of seat tube) counterclockwise to unlock position (Figure.6- 1 ), then swipe up to remove the battery(Figure. 6-2). Insert the battery along the base, turn the key clockwise to lock position(Figure.

  • Page 13: Operating Instructions/Instructions D'utilisation

    Operating Instructions/ INSTRUCTIONS D'UTILISATION 1. Display operation A. Turn the switch on the battery to “-” to turn on the battery, make sure the battery lock firmly on the frame, and then press the “ ” power button on the control panel and hold 3 seconds (Figure. 7-1), the display will light up.
  • Page 14 3. Brake System Please hold the two brake levers on both sides of the handlebar, then trying to push the trike forward to make sure the trike is assembled firmly, and brakes can stop the trike properly. THE PARKING BRAKE: The parking brake is located on the front (right) brake lever. To engage the parking brake, bring your trike to a complete stop.
  • Page 15 6. Please note the trike’s serial number (Figure. 7-6) and battery serial number (Figure. 7-7) on the user manual’s last page in case of stolen or missing. 7. You are ready to ride! WARNING: Never place your feet on the ground when the trike is in motion. Doing so can cause the rear wheels to hit your feet or legs, hurting you or potentially causing or an accident that could lead to serious injury or death.

  • Page 16: Display Instrument Setting

    Display Instrument Setting Presentation of Screen Headlight display: show the on/off status of the headlight  Maintenance prompt: show the maintenance prompt sign  Navigation function: Connect the mobile app to the Bluetooth of the display,the display will show  when the mobile app starts to navigate Bluetooth function: Bluetooth on/off status display, successfully connected to the display Bluetooth ...

  • Page 17: Troubleshooting

    Troubleshooting We fully understand your feelings when you meet a problem with the trike. Contacting us on the website where you bought the t6-8rike and telling us your problem in detail with some pictures and videos will be the fastest and easiest way to help you solve the problem. Please don't forget to leave your order number to us for reference.

  • Page 18: The Throttle Does Not Work

    The throttle does not work We mean the display can be lighted up, with no error codes, but the throttle does not work. The brakes have two functions when you press the brake lever: 1. it will stop the trike 2. it will cut the power of the motor.

  • Page 19: Error Codes

    Error Codes When something goes wrong with the system, an error code will flash on display. Check the details on the attached list. Please note: The motor will stop working in the event of an error. Only when the error is gone, motor will work again.

  • Page 20: Warranty Information

    Warranty Information The warranty covers items that fail when used within their normal operating parameters. Please provide the order number when you need warranty. This warranty applies only to the original registered owner of the tricycle and is not transferable. If any part happen to be damaged during shipping, please contact us immediately after shipment arrival.

  • Page 21: Return Policy

    Return Policy 1. Electric tricycle Return Policy allows you to return or exchange your electric tricycle once within 30 days start from the date of receiving the trike. Please check the warranty terms for complete information for when a return is applicable. Please note that we do not accept the return of the spare parts.

  • Page 22: Faq

    Q: How does after-sale customer service/ warranty work? A: When you have problems with your trike, please message us on the website where you bought the trike. We will reply to you in one business day. It is best to describe your problem in details, and make a video to show your concern, it is the fastest way to solving your problem.

  • Page 23: Battery And Charger Care

    Battery And Charger Care The charger will charge a fully depleted battery in 6—8 hours. The indicator light on the charger will be red when the battery is charging and will turn green when fully charged. Avoid subjecting the battery to high temperatures, such as directly under the sun, for prolonged periods. Recharge the battery before it becomes completely discharged.

  • Page 24: Disclaimers

    DISCLAIMERS All batteries have inherent risks under any circumstance. Use caution when working with batteries, as they have dangerous charging characteristics and are known to explode or burn if mishandled. A purchaser and user of an e-bike must read and understand all safety-related precautions in this section before handling, using, or storing the battery.

  • Page 25: User Maintenance Instructions

    USER MAINTENANCE INSTRUCTIONS INSTRUCTIONS D'ENTRETIEN À L'INTENTION DE L'UTILISATEUR Having an electric trike that breaks down or isn’t running smoothly is a real pain. Here are few simple things you can do to avoid this and keep it running smoother for longer. Electric trikes are tricycle that have additional technology to provide pedal assistance.

  • Page 26: Safety

    Safety Helmet: Always wear an approved helmet while riding your trike and follow the helmet manufacturer’s instructions for it, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your trike and comply with all applicable laws. Mechanical Safety Check: Check the condition of your trike before every ride.
  • Page 27 • Off-road riding requires close attention and specific skills, and it presents variable conditions and hazards. Wear appropriate safety gear and don ’ t ride alone in remote areas. Check local rules and regulations about whether off-road etrike riding is allowed. Wet Weather: It is recommended to not ride in wet weather if avoidable.
  • Page 28 • Any time you are riding at speed, with extra weight, or in slippery conditions, braking will take longer. Plan accordingly. WARNING: Failure to control speed or turning sharply while going downhill increases your risk of losing control of your trike, which can lead to serious injury or death. RIDING ACROSS A SLOPE: Avoid riding across slopes, which will tilt your trike and may increase your risk of tipping.

  • Page 29: General Warning

    General Warning Like any sport, bicycling involves the risk of injury and damage. By choosing to ride a tricycle, you assume the responsibility for that risk, so you need to know — and practice— the rules of safe and responsible riding and proper use and maintenance. Proper usage and maintenance of your tricycle reduces the risk of injury.

  • Page 30: Electrical Parameters

    Electrical Parameters EST-MB-XXX, EST-W-XXX, Model (XXX represents any alphanumeric character) Motor 48V750W Type of Motor Brush-less Hub motor Battery 48V22.4AH Type of Batter Li-ion Battery Charging Temperature Range 32-104℉ Discharge Temperature Range 14-113℉ Charger Output 54.6V DC MAX. 3.0A Range Per Charging 40-50 miles Maximum Speed 20 MPH...

  • Page 31: The Universal Wiring Diagram

    The Universal Wiring Diagram This wiring diagram is only for reference, if any question you have, please contact customer service for any repair. Recording Your trike Info tricycle SERIAL NUMBER: BATTERY SERIAL NUMBER: MODEL: COLOR: DATE OF PURCHASE: DEALER’S NAME: DEALER’S PHONE: DEALER’S EMAIL: - 30 -...

This manual is also suitable for:

Est-w series
