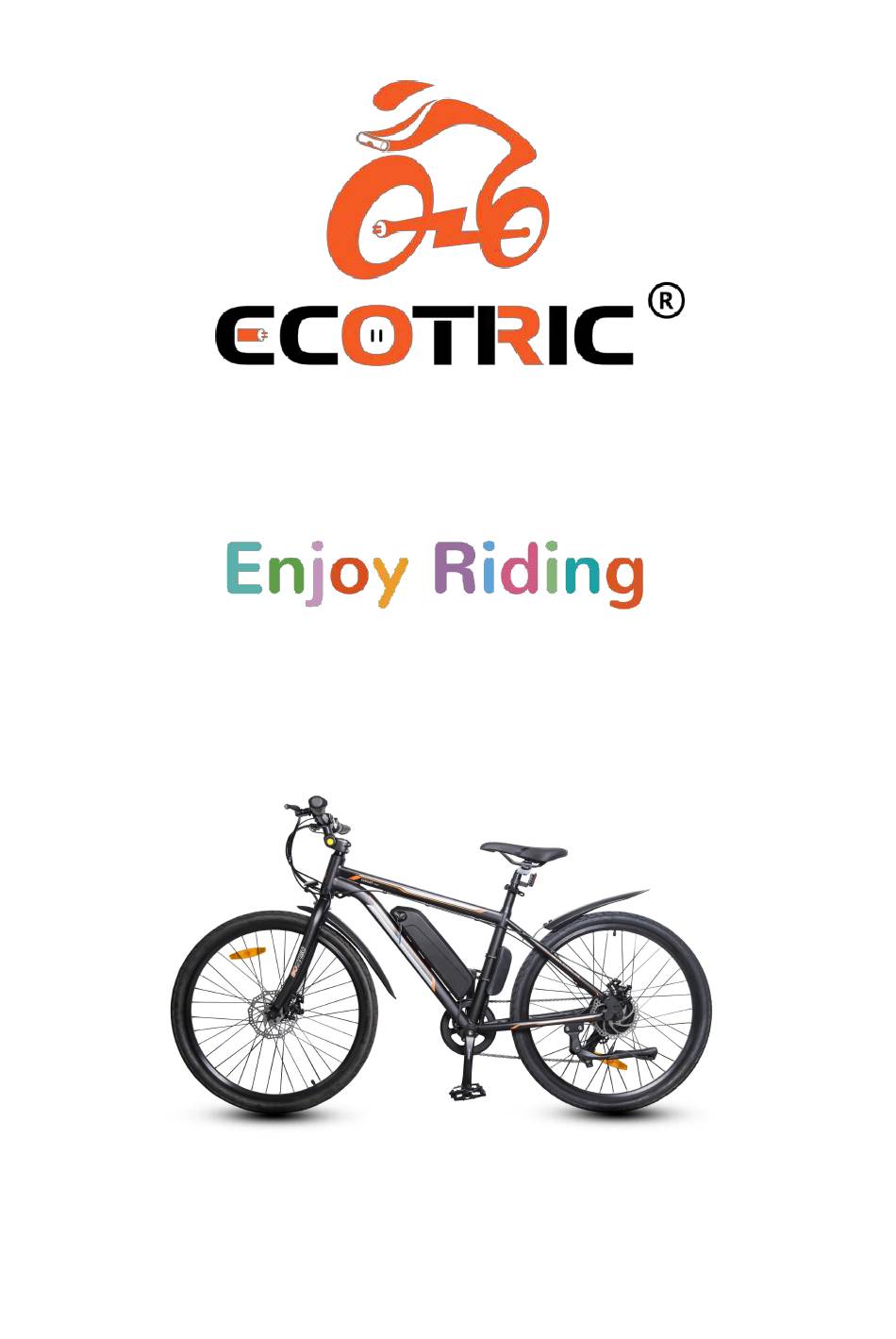

- Page 1 C-VOR26810-MB-XXX C-VOR26810-W-XXX (XXX represents any alphanumeric character)
-
Page 2: Table Of Contents
Safety....................................- 20 - General Warning................................- 21 - AVERTISSEMENT GÉNÉRAL............................. - 22 - Electrical Parameters..............................- 23 - The Universal Wiring Diagram............................- 24 - Recording Your ECOTRIC Bike Info..........................- 24 - Carton Contents (x1) ECOTRIC Bike (x2) Keys (x1) Lithium Ion Battery... - Page 3 First of all, we would like to thank you for choosing the ECOTRIC electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your mobility. Our brush-less electric hub motor allows you to run errands or commute to work while saving money on gas and reducing your environmental impact on our world.
-
Page 4: Warning
WARNING Electric Bikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the bicycle or system and all other losses or damages to themselves and others and to any property arising as a result of using the bicycle. As with all mechanical components, the bicycle is subjected to wear and high stresses. -
Page 5: Avertissement
être remplacé. Pour le remplacement des pièces détachées, les informations techniques et l 'aide à la maintenance, contactez ecotric bike. VOTRE POLICE D 'ASSURANCE NE COUVRE PAS L' ACCIDENT DE BICYCLETTE.POUR DÉTERMINER S' IL Y A UNE ASSURANCE, VOUS DEVEZ CONTACTER VOTRE COMPAGNIE D 'ASSURANCE OU VOTRE AGENT. -
Page 6: Assembling Instruction
Assembling Instruction Instruction d'assemblage Front Wheel Installation Your Electric bike equips with a front disk brake. Be careful not to damage the disk, caliper, or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk inserts correctly in the caliper. - Page 7 (4) With the steering fork facing forward, insert the front wheel between the fork blades so that the axle seats firmly at the top of the fork dropouts (Figure. 1-4). (5) While pushing the wheel firmly to the top of the slots in the fork dropouts, and at the same time centering the wheel rim in the fork.
-
Page 8: Handle Bar Installation
Handle Bar Installation 1. Loose the bolt on top of the stem, then Rotate the stem (Figure.2-1) 2. Loosen the bolt on the side of the stem, then adjust the stem to a comfortable height (Figure. 2-2). 3. Before installing the handle bar, please pay attention to the wires harness that connect to it,they need to be placed as shown in the picture to prevent the wire harness from being entangled (Figure. -
Page 9: Seat Post Installation
Seat Post Installation 1. Please pay attention to the vertical lines on the seat post; it is the minimum insert line/safety line. Please make sure install the post into the frame deeper than the minimum insertion line. It is at the bottom of the seat post (Figure. -
Page 10: Pedals Installation
Pedals Installation 1. Identify left vs. right pedal There is an “L” or "R” stamped into the axle (the threaded part that looks like a screw) (Figure. 4-1) Please Note: They are not the same!! Apply a small amount of grease if possible 2. -
Page 11: Battery Installation & Removing & Charging
Battery Installation & Removing & Charging 1. Battery Installation Turn the key (usually, the keys are tied on the clamp of seat tube) to unlock position (Figure. 5-1 ). Line up the grooves on the battery and battery holder(Figure. 5-2), then slide the battery down, turn the key to lock position(Figure. -
Page 12: Operating Instructions/Instructions D'utilisation
Operating Instructions/ INSTRUCTIONS D'UTILISATION 1. Lighting Up The Display Turn the key to the "ON" position, press the "ON/OFF" button on the display (Figure. 6-1), and the display will be light up(It should show four red LED when fully charged). Note: The default pedal assist level is "LOW"... -
Page 13: Display Instrument Setting
3. Testing The Brake System Please hold the two brake levers on both sides of the handlebar, then trying to push the bike forward to make sure the bike is assembled firmly, and brakes can stop the bike properly. Please Note: You can adjust the tightness of the brake cable lightly by adjusting the knobs on the caliper (Figure. -
Page 14: Troubleshooting
Troubleshooting We fully understand your feelings when you meet a problem with the bike. Contacting us on the website where you bought the bike and telling us your problem in detail with some pictures and videos will be the fastest and easiest way to help you solve the problem. Please don't forget to leave your order number to us for reference. -
Page 15: The Throttle Does Not Work
The throttle does not work We mean the display can be lighted up, but the throttle does not work. The brakes have two functions when you press the brake lever: 1. it will stop the bike 2. it will cut the power of the motor. First, please check the brake lever, and make sure the brake lever can hold or release fluently. -
Page 16: Warranty Information
If any part happen to be damaged during shipping, please contact us immediately after shipment arrival. ECOTRIC will send a replacement part at our expense and will work with you to fix the issue. Situations that are not covered by warranty ... -
Page 17: Return Policy
Return Policy 1. ECOTRIC Electric Bicycle Return Policy allows you to return or exchange your electric bicycle once within 30 days start from the date of receiving the bike. Please check the warranty terms for complete information for when a return is applicable. Please note that we do not accept the return of the spare parts. -
Page 18: Faq
Q: How does after-sale customer service/ warranty work? A: When you have problems with your bike, please message us on the website where you bought the bike. We will reply to you in one business day. It is best to describe your problem in details, and make a video to show your concern, it is the fastest way to solving your problem. -
Page 19: Battery And Charger Care
Battery And Charger Care The charger will charge a fully depleted battery in 6—8 hours. The indicator light on the charger will be red when the battery is charging and will turn green when fully charged. Avoid subjecting the battery to high temperatures, such as directly under the sun,for prolonged periods. Recharge the battery before it becomes completely discharged. -
Page 20: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS INSTRUCTIONS D'ENTRETIEN À L'INTENTION DE L'UTILISATEUR Having an electric bike that breaks down or isn’t running smoothly is a real pain. Here are few simple things you can do to avoid this and keep it running smoother for longer. Electric bikes are bicycles that have additional technology to provide pedal assistance. -
Page 21: Safety
Safety Helmet: Always wear an approved helmet while riding your bike and follow the helmet manufacturer’s instructions for it, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your Bike and comply with all applicable laws. Mechanical Safety Check: Check the condition of your Bike before every ride. -
Page 22: General Warning
General Warning Like any sport, bicycling involves the risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and practice— the rules of safe and responsible riding and proper use and maintenance. Proper usage and maintenance of your bicycle reduces the risk of injury. -
Page 23: Avertissement Général
AVERTISSEMENT GÉNÉRAL Comme tout sport, le vélo comporte des risques de blessures et de dommages. En choisissant de faire du vélo, vous assumez la responsabilité de ce risque, vous devez donc connaître - et pratiquer - les règles d'une conduite sûre et responsable ainsi que d'une utilisation et d'un entretien appropriés. -
Page 24: Electrical Parameters
Electrical Parameters C-VOR26810-MB-XXX C-VOR26810-W-XXX Model (XXX represents any alphanumeric character) Motor 36V 350W Type of Motor Brush-less Hub motor Battery 36V12.5AH Type of Battery Li-ion Battery Charging Temperature Range 32-104℉ Discharge Temperature Range 14-113℉ Charger Output 42V DC MAX. 2.0A Range Per Charging 18-23 miles Maximum Speed... -
Page 25: The Universal Wiring Diagram
The Universal Wiring Diagram This wiring diagram is only for reference, if any question you have, please contact customer service for any repair. Recording Your ECOTRIC Bike Info BICYCLE SERIAL NUMBER: BATTERY SERIAL NUMBER: MODEL: COLOR: DATE OF PURCHASE: DEALER’S NAME: DEALER’S PHONE:...
