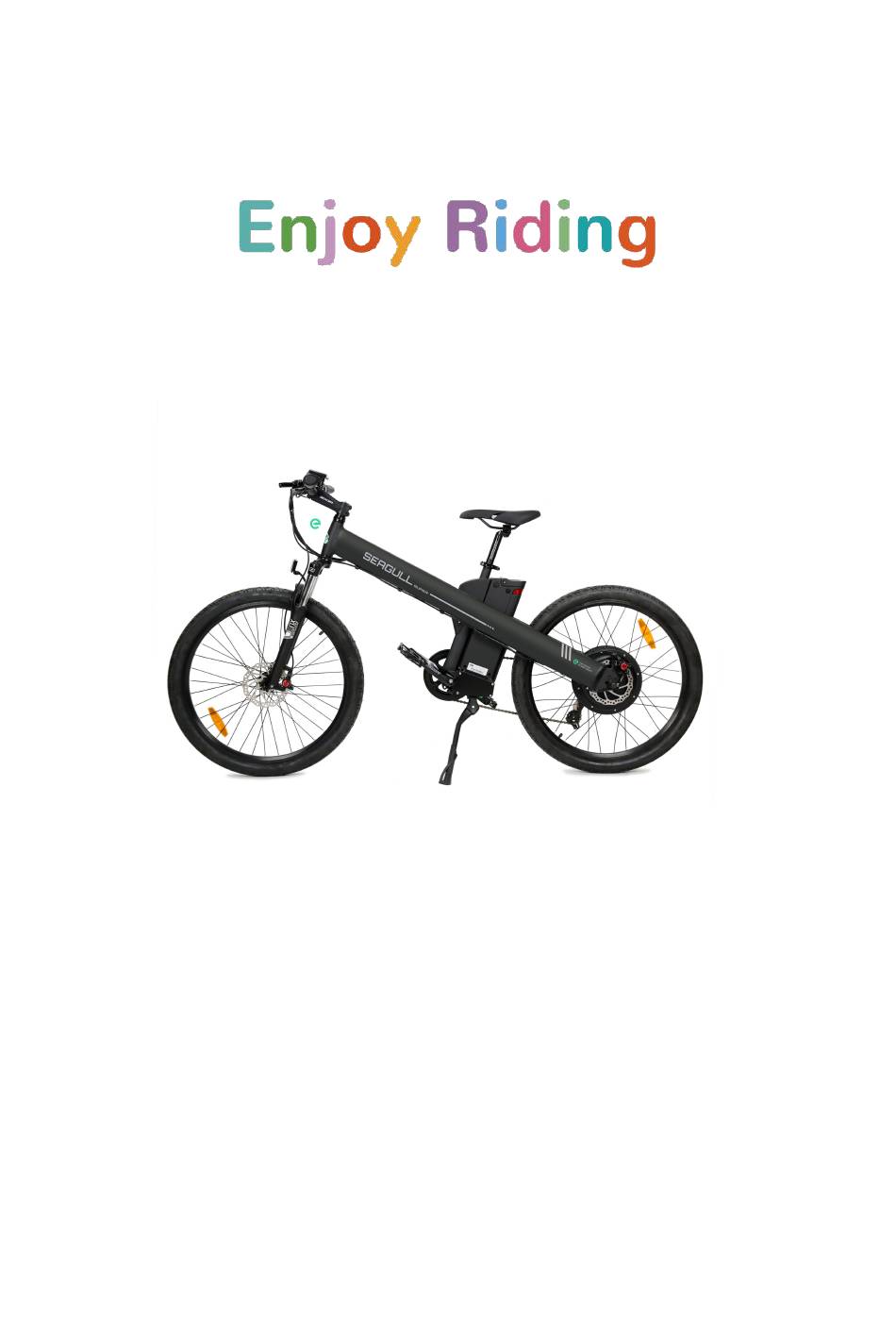

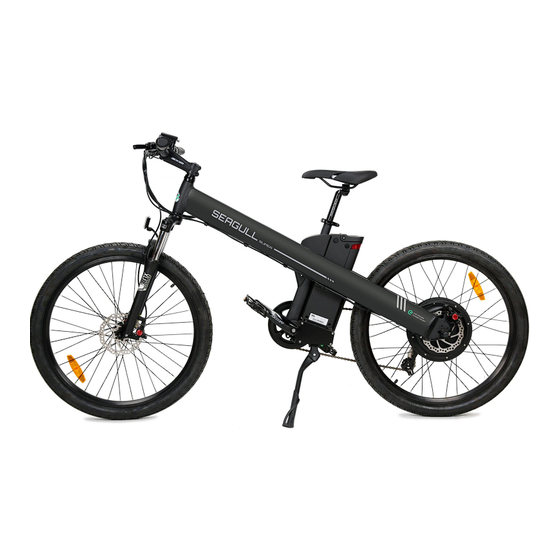

- Page 1 SEA26S900-MB, SEA26S900-W, (XXX represents any alphanumeric character)
-
Page 2: Table Of Contents
TABLE OF CONTENTS Carton Contents................................- 1 - WARNING..................................- 3 - Avertissement...................................- 4 - Assembling Instruction..............................- 5 - Front Wheel Installation............................- 5 - Handle Bar,Display Installation..........................- 7 - Seat Post Installation..............................- 8 - Pedals Installation..............................- 9 - Battery Installation & Removing & Charging......................- 10 - Operating Instructions/INSTRUCTIONS D'UTILISATION.................. - Page 3 First of all, we would like to thank you for choosing the electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your mobility. Our brush-less electric hub motor allows you to run errands or commute to work while saving money on gas and reducing your environmental impact on our world.
-
Page 4: Warning
WARNING Electric Bikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the bicycle or system and all other losses or damages to themselves and others and to any property arising as a result of using the bicycle. As with all mechanical components, the bicycle is subjected to wear and high stresses. -
Page 5: Avertissement
Avertissement Le vélo électrique est dangereux.Hypothèses de l 'utilisateur ou du consommateur Le risque de lésions corporelles, d'endommagement ou de panne de bicyclette ou de système, ainsi que toutes autres pertes ou dommages causés à soi - même et à d'autres personnes ou à des biens du fait de l'utilisation de bicyclettes. -
Page 6: Assembling Instruction
Assembling Instruction Instruction d'assemblage Front Wheel Installation CAUTION: Your Electric bike equips with a front disk brake. Be careful not to damage the disk, caliper, or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk inserts correctly in the caliper. - Page 7 (4) With the steering fork facing forward, insert the front wheel between the fork blades so that the axle seats firmly at the top of the fork dropouts. (5) Push the wheel firmly to the top of the slots in the fork dropouts, and center the wheel rim in the fork at the same time.
-
Page 8: Handle Bar,Display Installation
Handle Bar,Display Installation 1. Loose the bolts on both sides and top of the stem, then Rotate the stem (Figure. 2-1). 2. Tighten the top bolt firmly (Figure. 2-3),then tighten the two side bolts on the stem (Figure. 2-4). 3. Unscrew the 4 screws in front of the stem, place the handlebar on the stem, then tighten the 4 front bolts until full tightened (Figure. -
Page 9: Seat Post Installation
Seat Post Installation 1. Please pay attention to the vertical lines on the seat post; it is the minimum insert line/safety line. Please make sure install the post into the frame deeper than the minimum insertion line. It is at the bottom of the seat post (Figure. -
Page 10: Pedals Installation
Pedals Installation 1. Identify left vs. right pedal There is an “L” or "R” stamped into the axle (the threaded part that looks like a screw) (Figure. 4-1) Please Note: They are not the same!! Apply a small amount of grease if possible. 2. -
Page 11: Battery Installation & Removing & Charging
Battery Installation & Removing & Charging 1. Battery Installation The keys are tied to the handle on the battery. If the key is on the "Off" position, push the key in, and turn it to the "Unlock" position (Figure. 5-1), then pull the battery out of the frame. When mounting the battery, you should align the battery and the rail on the frame, and slide the battery into the frame. -
Page 12: Operating Instructions/Instructions D'utilisation
Operating Instructions/ INSTRUCTIONS D'UTILISATION 1. Lighting Up The Display Turn the key to lock position, make sure the battery lock firmly on the frame, and then press the “M” button on the control panel and hold 3 seconds (Figure. 7-1), the display will light up. 2. - Page 13 3. Testing The Brake System Please hold the two brake levers on both sides of the handlebar, then trying to push the bike forward to make sure the bike is assembled firmly, and brakes can stop the bike properly. 4. Please record the bike’s serial number (Figure. 7-6) and battery serial number (Figure. 7-7) on the user manual’s last page in case of stolen or missing.
-
Page 14: Display Instrument Setting
Display Instrument Setting Presentation of Screen Speed: Average SPEED/MAX SPEED Speed unit: KMH/MPH Battery level: 5 levels, voltage interval, could be customized Headlight icon: indicates when headlight and backlight are on (No headlight function for this bike). ... -
Page 15: Troubleshooting
Troubleshooting We fully understand your feelings when you meet a problem with the bike. Contacting us on the website where you bought the bike and telling us your problem in detail with some pictures and videos will be the fastest and easiest way to help you solve the problem. Please don't forget to leave your order number to us for reference. -
Page 16: The Throttle Does Not Work
The throttle does not work We mean the display can be lighted up, with no error codes, but the throttle does not work. The brakes have two functions when you pull the brake lever: 1. it will stop the bike 2. it will cut the power of the motor. -
Page 17: Error Codes
Error Codes When something goes wrong with the system, an error code will flash on display. Check the details on the attached list. Please note: The motor will stop working in the event of an error. Only when the error is gone, motor will work again. -
Page 18: Warranty Information
Warranty Information The warranty covers items that fail when used within their normal operating parameters. Please provide the order number when you need warranty. This warranty applies only to the original registered owner of the bicycle and is not transferable. If any part happen to be damaged during shipping, please contact us immediately after shipment arrival. -
Page 19: Return Policy
Return Policy 1. Electric Bicycle Return Policy allows you to return or exchange your electric bicycle once within 30 days start from the date of receiving the bike. Please check the warranty terms for complete information for when a return is applicable. Please note that we do not accept the return of the spare parts. -
Page 20: Faq
Q: How does after-sale customer service/ warranty work? A: When you have problems with your bike, please message us on the website where you bought the bike. We will reply to you in one business day. It is best to describe your problem in details, and make a video to show your concern, it is the fastest way to solving your problem. -
Page 21: Battery And Charger Care
Battery And Charger Care The charger will charge a fully depleted battery in 6—8 hours. The indicator light on the charger will be red when the battery is charging and will turn green when fully charged. Avoid subjecting the battery to high temperatures, such as directly under the sun, for prolonged periods. Recharge the battery before it becomes completely discharged. -
Page 22: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS INSTRUCTIONS D'ENTRETIEN À L'INTENTION DE L'UTILISATEUR Having an electric bike that breaks down or isn’t running smoothly is a real pain. Here are few simple things you can do to avoid this and keep it running smoother for longer. Electric bikes are bicycles that have additional technology to provide pedal assistance. -
Page 23: Safety
Safety Helmet: Always wear an approved helmet while riding your bike and follow the helmet manufacturer’s instructions for it, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your Bike and comply with all applicable laws. Mechanical Safety Check: Check the condition of your Bike before every ride. - Page 24 • Off-road riding requires close attention and specific skills, and it presents variable conditions and hazards. Wear appropriate safety gear and don ’ t ride alone in remote areas. Check local rules and regulations about whether off-road ebike riding is allowed. Wet Weather: It is recommended to not ride in wet weather if avoidable.
-
Page 25: General Warning
General Warning Like any sport, bicycling involves the risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and practice— the rules of safe and responsible riding and proper use and maintenance. Proper usage and maintenance of your bicycle reduces the risk of injury. -
Page 26: Avertissement Général
AVERTISSEMENT GÉNÉRAL Comme tout sport, le vélo comporte des risques de blessures et de dommages. En choisissant de faire du vélo, vous assumez la responsabilité de ce risque, vous devez donc connaître - et pratiquer - les règles d'une conduite sûre et responsable ainsi que d'une utilisation et d'un entretien appropriés. -
Page 27: Electrical Parameters
Electrical Parameters SEA26S900-MB, SEA26S900-W, Model (XXX represents any alphanumeric character) Motor 48V1000W Type of Motor Brush-less Hub motor Battery 48V13AH Type of Battery Li-ion Battery Charging Temperature Range 32-104℉ Discharge Temperature Range 14-113℉ Charger Output 54.6V MAX. 2.0A Range Per Charging... -
Page 28: The Universal Wiring Diagram
The Universal Wiring Diagram This wiring diagram is only for reference, if any question you have, please contact customer service for any repair. Recording Your Bike Info BICYCLE SERIAL NUMBER: BATTERY SERIAL NUMBER: MODEL: COLOR: DATE OF PURCHASE: DEALER’S NAME: DEALER’S PHONE: DEALER’S EMAIL: - 27 -...
