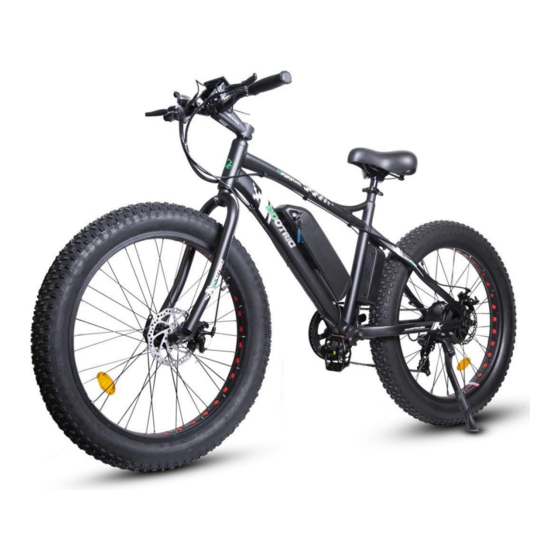

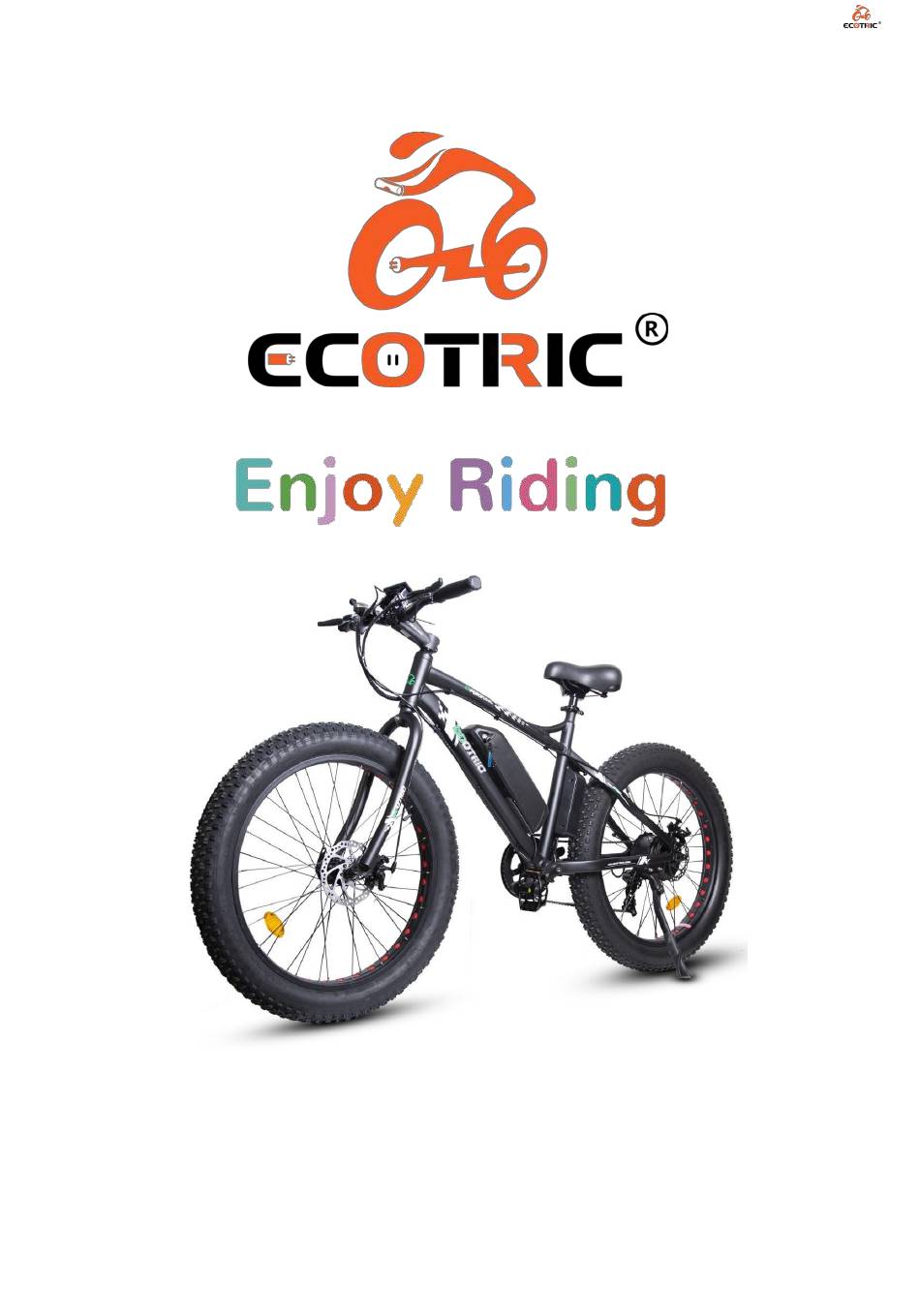

- Page 1 FAT26S900-MB-XXX FAT26S900-BL-XXX FAT26S900-O-XXX (XXX represents any alphanumeric character)
-
Page 2: Table Of Contents
Safety................................... - 22 - General Warning..............................- 23 - Electrical Parameters............................- 24 - The Universal Wiring Diagram..........................- 25 - Recording Your ECOTRIC Bike Info ........................- 25 - Carton Contents (x1) ECOTRIC Bike (x1) Tool Kit (x1) Reflector (x1) Lithium Ion Battery (x1) Owner’s user Manual... - Page 3 First of all, we would like to thank you for choosing the ECOTRIC electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your personal mobility. Our brush-less electric hub motor allows you to run errands or commute to work while saving money on gas and reducing your environmental impact on our world.
-
Page 4: Warning
WARNING Electric Bikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the bicycle or system and all other losses or damages to themselves and others and to any property arising as a result of using the bicycle. -
Page 5: Assembling Instruction
Assembling Instruction Front Wheel Installation CAUTION: Your Electric bike is equipped with a front disk brake. Be careful not to damage the disk, caliper or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk is correctly inserted in the caliper. - Page 6 (6) With the steering fork facing forward, insert the front wheel between the fork blades so that the axle seats firmly at the top of the fork dropouts. ( .1-4) Figure (7) While pushing the wheel firmly to the top of the slots in the fork dropouts, and at the same time centering the wheel rim in the fork.
-
Page 7: Handle Bar,Display And Front Reflector Installation
Handle Bar,Display and Front Reflector Installation 1. Loose the bolt on top of the stem,then Rotate the stem through 90degrees( .2-1) Figure 2. Unscrew the 4 screws in front of the stem with 5mm hexagonal spanner,place the handle bar on the stem,tighten the 4 screws slightly and position the handlebars to your desired comfort level,then tightenfour bolts in turn until full tightened ( 2-2) -
Page 8: Seat Post Installation
Seat Post Installation 1. Please pay attention to the vertical lines on the seat post,it is the minimum insert line or safety line,please make sure the post is installed into the frame deeper than the minimum insertion line.it is at the bottom of the seat post(Figure. 3-1) Warning: It could break the seat tube during riding if the seat post does not installing correctly.It is not covered by... -
Page 9: Pedals Installation
Pedals Installation 1. Identify left vs right pedal There is a “L” or "R” stamped into the axle (threaded part that looks like a screw) (Figure. 4-1) Please Note: They are not the same!! Apply a small amount of grease if possible 2. -
Page 10: Battery Installation & Removing & Charging
Battery Installation & Removing & Charging 1. Battery Installation Turn the key(normally the keys are tied on the clamp of seat tube) to unlock position (Figure. 5- 1 ),Line up the grooves on the battery and battery holder(Figure. 5-2),then slide the battery down,turn the key to lock position(Figure. - Page 11 Testing The Bike Lighting Up The Display Turn the key to lock position,make sure the battery is locked firmly on the frame,then press the “M” button on the handle bar and hold 3 seconds(Figure. 6-1),the display will be lighted up. Testing The Throttle,Pedal Assist And Walk AssistMode The bike has 3 modes: throttle,pedal assist,walk assist.
- Page 12 Testing The Brake System Please hold the 2 brake levers on both side of the handle bar,then trying push the bike forward to make Please Note: You can adjust sure the bike is assembled firmly,and brakes can stop the bike properly. the tightness of the brake cable lightly by adjust the the knobs on the caliper (Figure.6-6).
-
Page 13: Display Instrument Setting
Display Instrument Setting Presentation of Screen Speed: Average SPEED/MAX SPEED Speed unit: KMH/MPH Battery level: 5 levels, voltage interval could becustomized Head light icon : indicates when head light and back light are on (No headlight function for this bike). ... - Page 14 Display Advanced Setting Long Press and hold the up and down button for seconds to enter the setup interface, short press up or down button to change the value, short press M button to save current value and switch to next parameter.
-
Page 15: Troubleshooting
Troubleshooting We full understand your feelings when you meet a problem with the bike,the best and fastest way for solving your problem is that: contact us on the website where you bought the bike,and tell us your problem in details,it is the best if you can send us some clear pics or make a video to show your problem.Every message will be replied in one businessday. -
Page 16: The Throttle Does Not Work
The throttle does not work We mean the display can be lighted up,no error codes,but the throttle does not work. The brakes have two function when you press the brake lever: 1. it will stop the bike 2.it will cut the power of motor. -
Page 17: Error Codes
Error Codes When something goes wrong with system, an error code will flash on the display. Check details on attached list. Please note: The motor will stop working in the event of an error. Only when the error is gone, the motor will work again. -
Page 18: Warranty Information
Warranty Information Warranty covers items that fail when used within their normal operating parameters.This warranty applies only to the original registered owner of the ECOTRIC bicycle and is not transferable. Situations that is not covered by warranty Water Damage (wading in water,parking in rain) ... -
Page 19: Return Policy
Return Policy If you buy the bike and then change your mind and simply want to return it for a refund within 30 days of receiving it, then that is fine, make sure the bike in new condition and well packed, but depending on circumstances we may charge a 10%-50% restocking fee,shipping is not refundable, and you are also responsible for returning the item to us as per our shipping guide . -
Page 20: Faq
Q: How does after-sale customer service/ warranty work? A: When you have problems with your bike,please message us on the website where you bought the bike,we will reply you 1 business days. It is the best if you can describe your problem in details,and make a video to show your problem,it is the fastest way for solving your problem. -
Page 21: Battery And Charger Care
Battery And Charger Care The charger will charge a fully depleted battery in 6—8 hours. The indicator light on the charger will be red when battery is charging and will turn green when fully charged. Avoid subjecting the battery to high temperatures, such as directly under the sun, for prolonged periods of time. -
Page 22: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS INSTRUCTIONS D'ENTRETIEN À L'INTENTION DE L'UTILISATEUR Having an electric bike that breaks down or isn’t running smoothly is a real pain. Here are few simple things you can do to avoid this and keep it running smoother for longer. Electric bikes are bicycles that have additional technology to provide pedal assistance. -
Page 23: Safety
Safety Helmet: Always wear an approved helmet while riding your bike and follow the helmet manufacturer’s instructions for it, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your Bike and to comply with all applicable laws. Mechanical Safety Check: Check the condition of your Bike before every ride. -
Page 24: General Warning
General Warning Like any sport, bicycling involves risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and to practice— the rules of safe and responsible riding and of proper use and maintenance. Proper use and maintenance of your bicycle reduces risk of injury. -
Page 25: Electrical Parameters
Electrical Parameters FAT26S900-MB-XXX FAT26S900-BL-XXX Model FAT26S900-O-XXX (XXX represents any alphanumeric character) Motor 36V 500W Type of Motor Brush-less Hub motor Battery 36V12.5AH Type of Battery Li-ion Battery Charging Temperature 32-104℉ Range Discharge Temperature 14-113℉ Range Charger Output 42V DC MAX. 2.0A Range Per Charging 18-23 miles Maximum Speed... -
Page 26: The Universal Wiring Diagram
The Universal Wiring Diagram This wiring diagram is only for reference, if any question you have, please contact customer service for any repair. Recording Your Ecotric Bike Info BICYCLE SERIALNUMBER: BATTERY SERIAL NUMBER: MODEL: COLOR: DATE OF PURCHASE: DEALER’S NAME: DEALER’S PHONE:...
