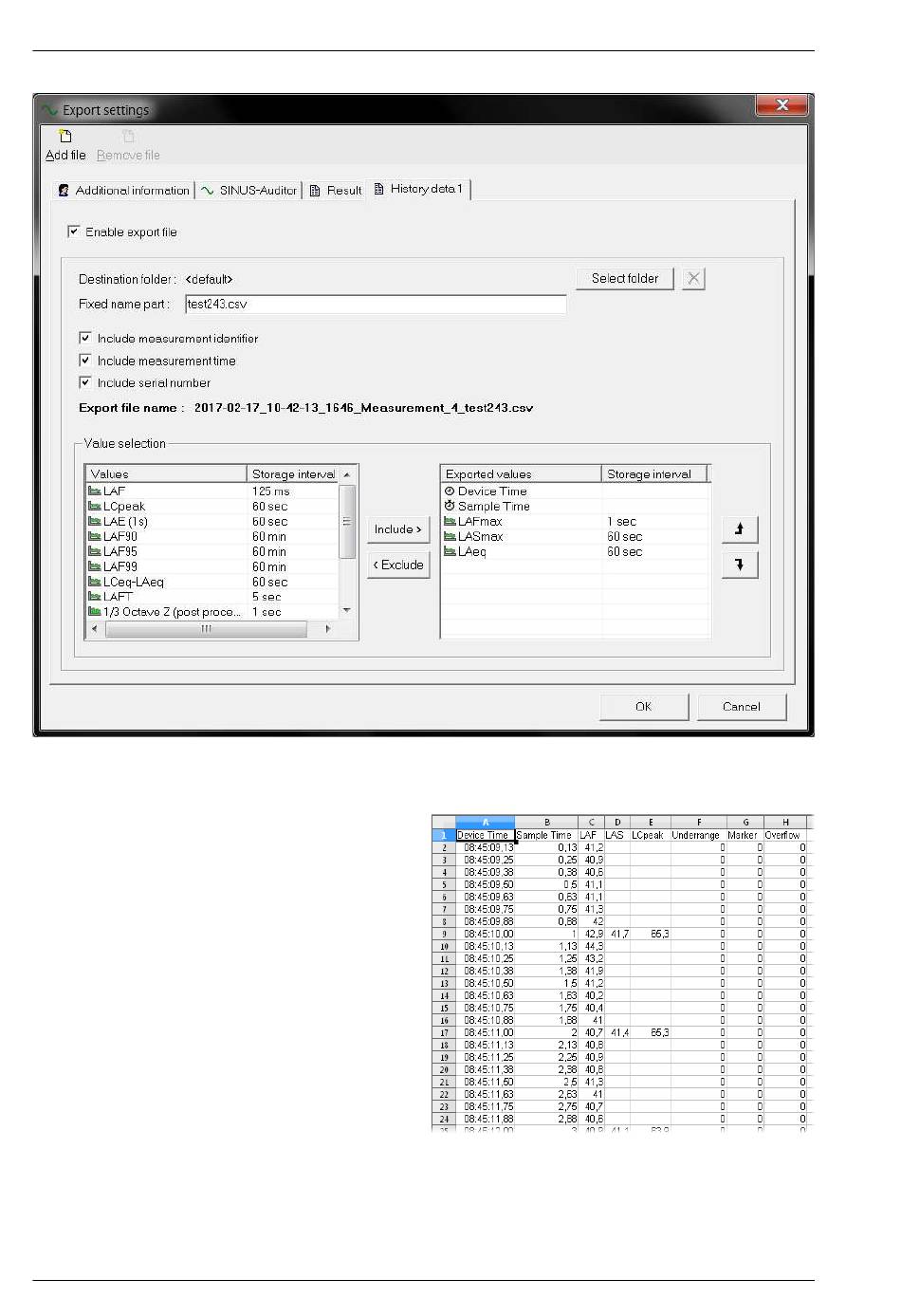

Figure 2.9: Export window
Measurement file:
File7
Start time:
02.06.2009 08:45:09
Duration:
2:57
Overflow:
no
Underrange:
no
LAFmax:
77,4 dB
LASmax:
68,5 dB
LCpeak:
103,3 dB
LAeq:
48,4 dB
LAE: 70,9 dB
LAtm5:
62,7 dB
LAtm5-LAeq:
14,3 dB
LCpeak >90dB: 0:01 min:sec
LCpeak >135dB: 0:00 min:sec
LCpeak >140dB: 0:00 min:sec
LAF90:
40,3 dB
LAF95:
40,0 dB
LAF99:
39,7 dB
Figure 2.10: Example txt-Export Results
Manual Tango_Plus
2 APPLIANCE
Figure 2.11: Example csv-Export
18 of 30
SINUS Messtechnik GmbH
