2.3.3 Display Tab

In the Display tab history values are shown (figure 2.6), which are calculated by the device during a mea-
surement (according to the settings in the Setup-Tab). On the left side you will find a table of values which
are available for display in the graph on the right side. To select a value for graphical display click on the
individual values in the header of the graph. You may select a maximum of four values for simultaneous
display. The context menu of the graph provides Zoom and axes scaling functionality.

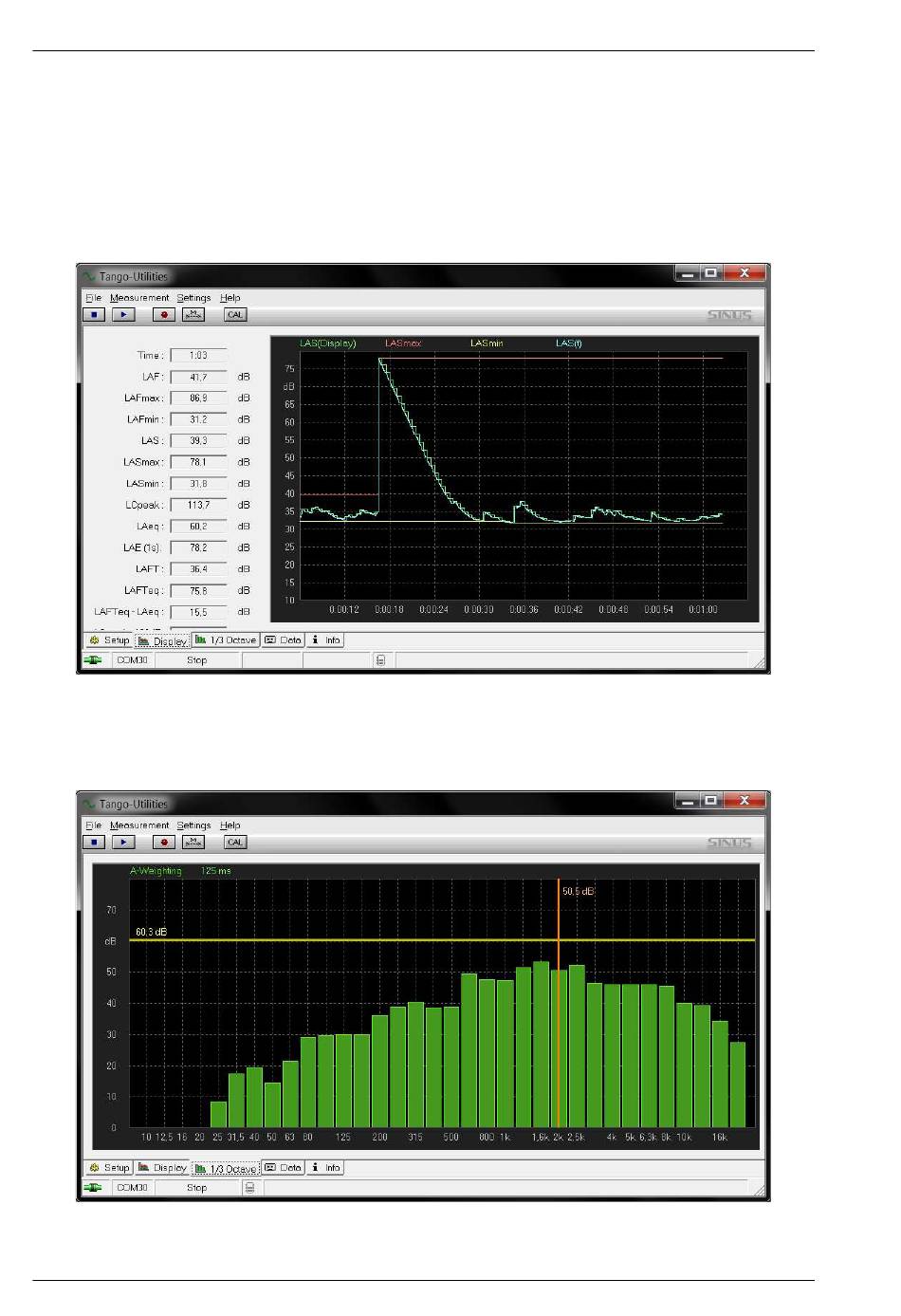

Figure 2.6: Show history values in Display Tab

2.3.4 Octave Tab

Figure 2.7: Show spectral values in Octave Tab
