INSTALLATION INSTRUCTIONS 40mm Recessed Bath/Shower Valve
880A 98309A 40MM RECESSED SHOWER ONLY VALVE
882A 98310A 40MM RECESSED BATH/SHOWER VALVE
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. The dimension from the finished wall to the centerline of the valve decided by the trim selection.
2. Flush the water supply pipes throughly to remove debris.
3. Observe all local plumbing and building codes.
4. Shut off the main water supply.
5. Do not remove the plaster guard from the valve body until instructed to.
6. Check for leaks befor covering the pipes, repairs as needed.
7. Inlet & outlet threads of valve are Rc1/2".
8. Maximum working pressure: 800Kpa.
9. All installations should comply with the relevant requirements of AS/NZS 3500.
10. Sku 98309A and 98310A include a kit for unequal pressure systems. The kit is to be installed per the kits
installation instructions. These Skus are for use in New Zealand Only.
11. Please ensure only apply water pressure test on the product, and empty the air in pipe and faucet
thoroughly before the test. Please ensure test pressure below 0.8MPa (8 bar) and test duration within 30
minutes.
HANDLE OPERATION
For 882A & 98310A, lift diverter, turn clockwise until it stops for shower, turn counter-clockwise until it stops
for bath spout.

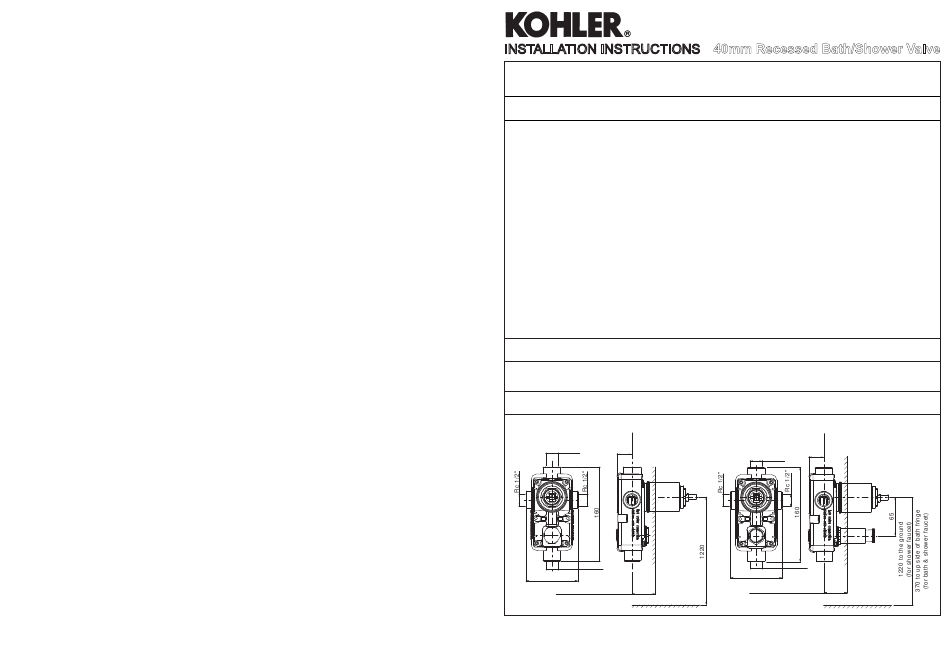

ROUGH-IN DIMENSIONS
880A 98309A
Centerline of valve
Rc 1/2" (26)
Rc 1/2"
88
Decided by trim selection
Ground
1071635-AN2-C
882A 98310A
Centerline of valve
(26)
Rc 1/2"
Rc 1/2"
88
Decided by trim selection
1
