Part No.
Item No.
1
25105
2
25106
3
25119
3
40007
4
25120
5
25121
6
45152
7
45153
8
45155
9
45182
10
25122
11
81905
12
81906
13
81907
14
45210
15
72610
16
72612
17
72613
18
72615
19
75802

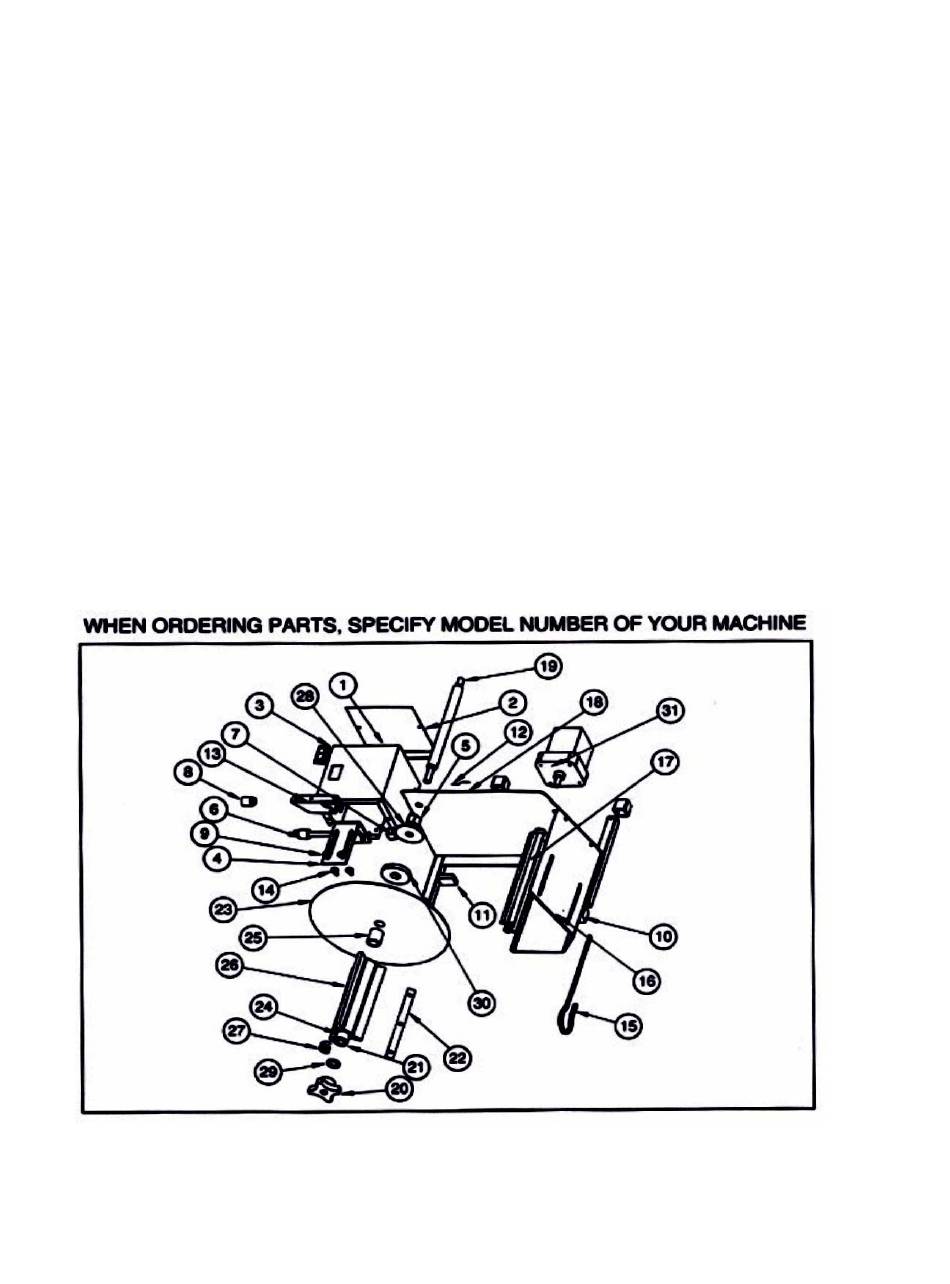

PARTS LIST TAKE-A-LABEL Model TAL-750HD With Photo Cell
Description
Housing
Housing End Plt.
On/Off Switch 2007 & Older
On/Off Switch 2008 & Newer
Mico Swt. Mtg. Bkt.
Nut .50 x 13
Power Cord
Power Cord Clamp (Not Show
Fuse Holder
Nylon Washer (Not Shown)
Foot End Caps
Photo Cell (Not Shown)
Relay ( Not Shown)
Relay Socket (Not Shown)
Thumb Screws
Waste Wind Clip
Stripping Plate
Waste Wind Shaft
Main Frame
Unwind Shaft
16900 Power Drive * Nunica, MI 49448
Phone: 616-837-9300 * Fax: 616-827-9301
Web Site: take-a-label.com
e-mail: sales@take-a-label.com
Part No.
Item No.
20
75803
21
75804
22
75805
23
75807
24
75809
25
75808
26
75822
27
75812
29
75817
30
75806
31
76800
32
45157
33
45180
34
45181
35
45183
36
45184
38
75816
Description
Unwind Tension Knob
Unwind Washer
Unwind Grip Blade
Backing Plate
Bushings P77-9
Bushings P77-8
Unwind Spindle
Unwind Spring
Washer - Nylon
Unwind Friction Washer
Gear Motor
Fuse 4 Amp. (Not Shown)
Nut Wing 1/4-20 (Not Shown)
Bolt Carriage 1/4-20 (Not Shown)
Button Head 10-32 Scr. (Not Shown)
Hex Nylon Nut 10-32 (Not Shown)
Locking Pin (Not Shown)
Advertisement
Related Manuals for TAKE-A-LABEL TAL-750HD
Summary of Contents for TAKE-A-LABEL TAL-750HD
- Page 1 PARTS LIST TAKE-A-LABEL Model TAL-750HD With Photo Cell Part No. Item No. Description Part No. Item No. Description 25105 Housing 75803 Unwind Tension Knob 25106 Housing End Plt. 75804 Unwind Washer 25119 On/Off Switch 2007 & Older 75805 Unwind Grip Blade 40007 On/Off Switch 2008 &...
- Page 2 Always load the TAKE-A-LABEL dispenser with the On-Off Switch (3) in the (OFF) position. To load a roll of labels on the TAKE-A-LABEL, slide the roll of labels over the spinndle (26) using the blade (22) to grip the core of the roll of labels.
