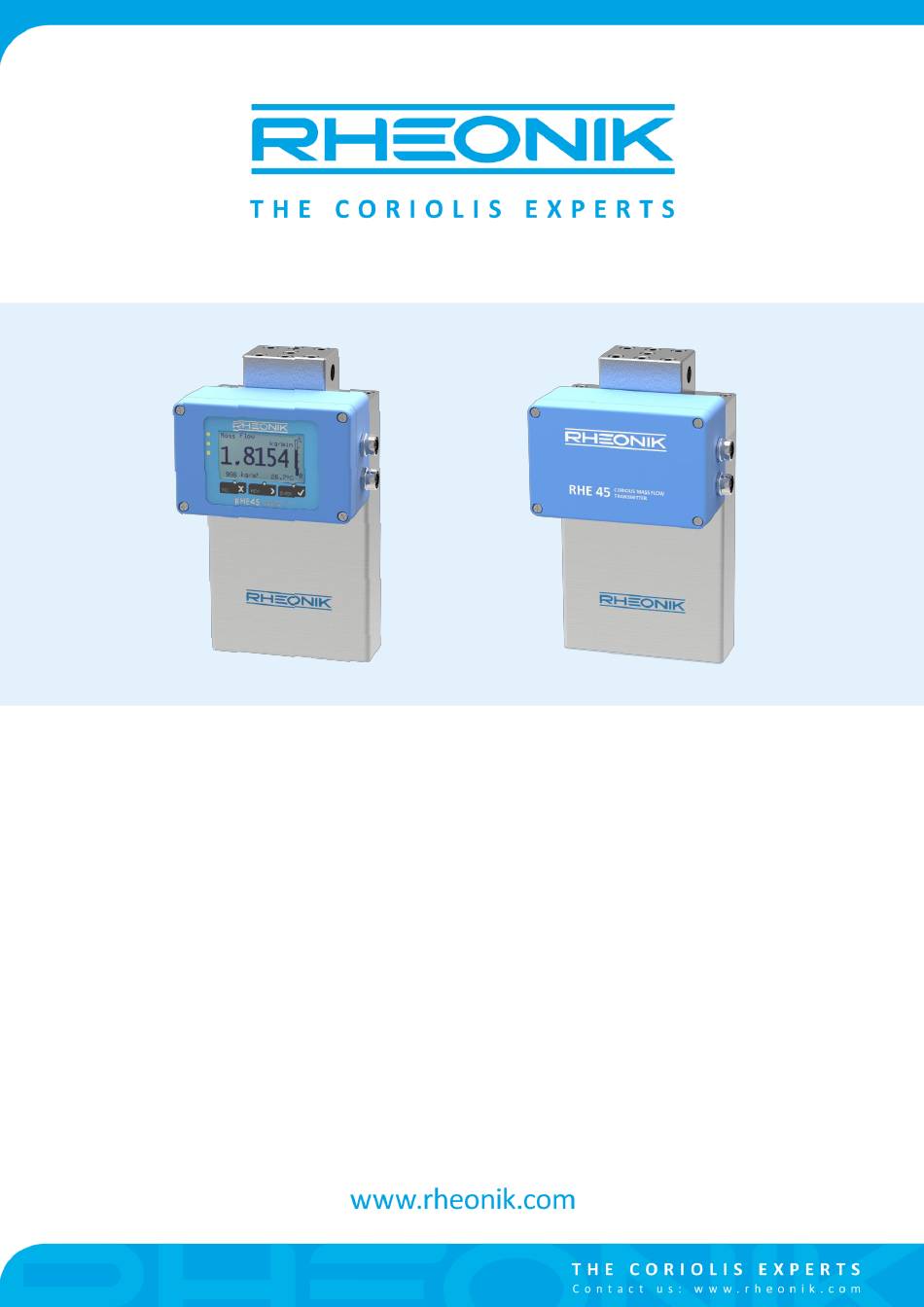

- Page 1 RHE45 Installation & Startup Guide RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00 D o c u m e n t N o . : 8 . 2 . 1 . 2 1 V e r s i o n 1 . 0 0 J U N - 2 0 1 9...
-
Page 2: Table Of Contents
4.2.5.2 Digital Output Configuration .................... 17 4.2.5.3 Digital Input Configuration ....................19 Operation and Configuration via USB or RS485 ............... 20 Zero Offset Calibration...................... 20 Input/Output Configuration ....................20 RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... - Page 3 7 Ordering Code ......................... 25 8 Accessories ........................26 Appendix A Technical Information .................. 27 Technical Data ........................27 Mechanical Drawing ......................29 Appendix B CE Certificate ....................30 RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00...
-
Page 4: General Information
Rheonik accepts no liability for loss or damage resulting from the improper use of any of its products. Rheonik assumes no liability for the loss of production and/or consequential damage from the use of this product unless such liability has been expressly and contractually agreed. -
Page 5: Quick Start
The RHE45 is connected to the RHM ex works and cannot be removed. For mounting the RHM refer to the corresponding manual delivered with the RHM. When hot fluids are to be measured the housing of the RHE45 must not be thermally isolated from the ambient for avoiding overheating the electronics. -
Page 6: Electrical Installation
Electrical Installation Caution, the surface of the RHE45 may be hot if a hot fluid is running through the RHM sensor. Any cable used for connecting to the RHE45 must be specified for 80°C or higher. The use of shielded cable is strongly recommended. -
Page 7: 8-Pin M12 Connector
(see figure 5, SI1) with a rating not higher than the current carrying capacity of the cable. The ground signal of the RHE45 (Terminal 3 and 10 of the 12 pin M12 connector) is connected to PE and housing via a 10kΩ resistor. -
Page 8: Power Supply
RHE terminations to help avoid RF EMI. 3.2.3.1 Digital Outputs The RHE45 has two universal digital outputs which can be used as frequency, pulse or control/status outputs. Digital outputs are push-pull outputs compliant to IEC 60946. They can drive loads connected to ground and loads connected to +24V. -
Page 9: Analog Outputs
3.2.3.2 Analog Outputs Depending on the I/O configuration ordered, the RHE45 has passive, active or no analog outputs. The minimum current of the analog 4-20mA interfaces is limited to 3.2mA. Thus, fire state settings of 2.0mA or 0.0mA are silently corrected to 3.2mA by the RHE45 firmware. -
Page 10: Digital Inputs
The digital input 2 is available with I/O option EA and EB only. The input is located on the 8 pin M12 connector, pin 2 (DI2) and pin 3 (I/O GND). RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... -
Page 11: Operation And Configuration
RHE45 for maintaining the ingress protection. Internal operating Elements When the cover of the RHE45 enclosure is removed a part of the electronics becomes accessible which contains some user configurable elements, e.g.: 1. Mini USB socket (see chapter 5.1) 2. -
Page 12: Zero Offset Calibration W/O Interface
Reopen the valves. Make sure that the top cover gets properly closed for achieving the IP protection. The RHE45 must not be opened in wet or dirty (dusty) ambient or when the housing of the RHE45 is wet. -
Page 13: Function Of The Pushbuttons
Function of the Pushbuttons RHE45 transmitters can be operated through three front panel pushbuttons. These are labeled “ESC” [X], “NEXT” [>], and “ENTER” []. The function of these pushbuttons depends upon the currently displayed screen. The following table details button function in specific situations. -
Page 14: Passcodes And Menu Selection
Passcodes and Menu Selection To configure and carry out certain functions in an RHE45 transmitter, it is necessary to enter a predetermined passcode. Passcodes protect configuration setup and prevent inadvertent changes to the flow meter operating condition. There are two different access levels with separate passcodes: “USER”... -
Page 15: Change Of Positive Flow Direction
Change of Positive Flow Direction Rheonik mass flow meters are bi-directional and can operate with flow passing through them in any direction. In some cases after installation, the transmitter may read negatively because of orientation. In this case, the flow direction indication can be reversed within the transmitter. To change the positive flow direction, navigate to the “Phase Measurement”... -
Page 16: Input/Output Configuration
4 – Analog output is configured for Tube Temperature. → set [C/B10], [C/B11] 5 – Analog output is configured for Torsion Bar Temperature. → set [C/B12], [C/B13] 6 – Drive Gain. → set [C/B15], [C/B16] RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... -
Page 17: Digital Output Configuration
[R/S04] specifies the mass flow rate equivalent to the frequency set under parameter [R/S07]. E.g. when [R/S04] is set to 1kg/min and [R/S07] is set to 1000Hz a mass flow rate of 5kg/min will cause a frequency of 5000Hz RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... - Page 18 Outband alarm – Alarm is indicated when the output is outside the range DigOutCh0AlmLow and DigOutCh0AlmHigh. An indicated alarm on channel 0 pulls the digital output 4 labeled “ERR” low. RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00...
-
Page 19: Digital Input Configuration
A transition from high to low at DI1/2 stops the totalizers when they are in the running state. A transition from low to high at DI1/2 restarts the totalizers when they are in the stopped state. RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... -
Page 20: Operation And Configuration Via Usb Or Rs485
Start RHEComPro on the laptop. For more information about installation and usage of the RHEComPro refer to the manual of the RHEComPro. Connect to the RHE45 by clicking on “Connect”. If the SW does not find the RHE45, try a different COM port. -
Page 21: I/O Test
After “Exit the Test” the RHEComPro returns to normal operation. Internal System Time The RHE45 has a build in real time clock (RTC) which is useful for data logging or zero history. For further information please refer to the RHE4X Desktop Reference manual. -
Page 22: Remote Operation
485B Figure 18: RS485 interface wiring For using Modbus via the RS485 serial port, refer to the RHE45 Desktop Reference Manual for a detailed description of the interface and register set. The RHE45 has an internal 120Ω termination resistor for the RS485. This resistor can be disconnected via a switch. -
Page 23: Modbus Tcp (I/O Options Ea And Eb)
Eth 2 TX+ blue 1, D1+ Eth 1 RX- green 6, D2- Shield Ground / PE Shield Shield For further information please refer to the RHE4X Desktop Reference manual. RHE45 Installation & Startup Guide – Doc. No. 8.2.1.21 – Ver. 1.00... -
Page 24: Profibus Dp (I/O Option Dp)
For further information please refer to the RHE4X Desktop Reference manual. Service and Maintenance Maintenance and Calibration RHE45 and the associated RHM flow sensor do not require any regular maintenance. In harsh environments or if highest accuracy is required we recommend a calibration every 2 years. -
Page 25: Service
RHE45 transmitters do not contain any user serviceable parts. Please contact your local sales/support agent or Rheonik Support for assistance. WEEE and RoHS RHE45 transmitters are not subject to the WEEE directive and are fully compliant to the RoHS directive. Ordering Code... -
Page 26: Accessories
Accessories For tests, test installations, and as a reference Rheonik offers a small number of accessories fitting to the two M12 sockets of the RHE45. Table 11: RHE45 Accessories Order Code Description Exemplary Pictures ARHE-SO RHECom Software on USB flash drive... -
Page 27: Appendix A Technical Information
Appendix A Technical Information Technical Data General Data Housing: Closed Box, directly mounted to the RHM Material: Aluminum, powder coated Enclosure Rating: IP65; up to IP67 upon request Ambient Temperature: -40°C to +60°C (-44°F to +140°F) Humidity: 10 to 90% relative humidity, non-condensing Altitude: Up to 3000m, higher maximum altitude upon request Dimensions:... - Page 28 Digital Inputs Type: 24V, according to IEC60946 Input Level: >13V for high state, < 6V for low state Input Current: Quantity: 1 to 2 Input value: Programmable Appendix A: Technical Information – Ver. 1.00...
-
Page 29: Mechanical Drawing
Mechanical Drawing RHE45 Transmitter Box Dimensions (all dimensions in mm) For detailed drawings and dimensions please refer to the RHM data sheets. Appendix A: Technical Information – Ver. 1.00... -
Page 30: Appendix Bce Certificate
Appendix B CE Certificate Appendix B: CE Certificate – Ver. 1.00... - Page 31 D o c u m e n t N o . : 8 . 2 . 1 . 2 1 V e r s i o n 1 . 0 0 J U N - 2 0 1 9...
