Assembly

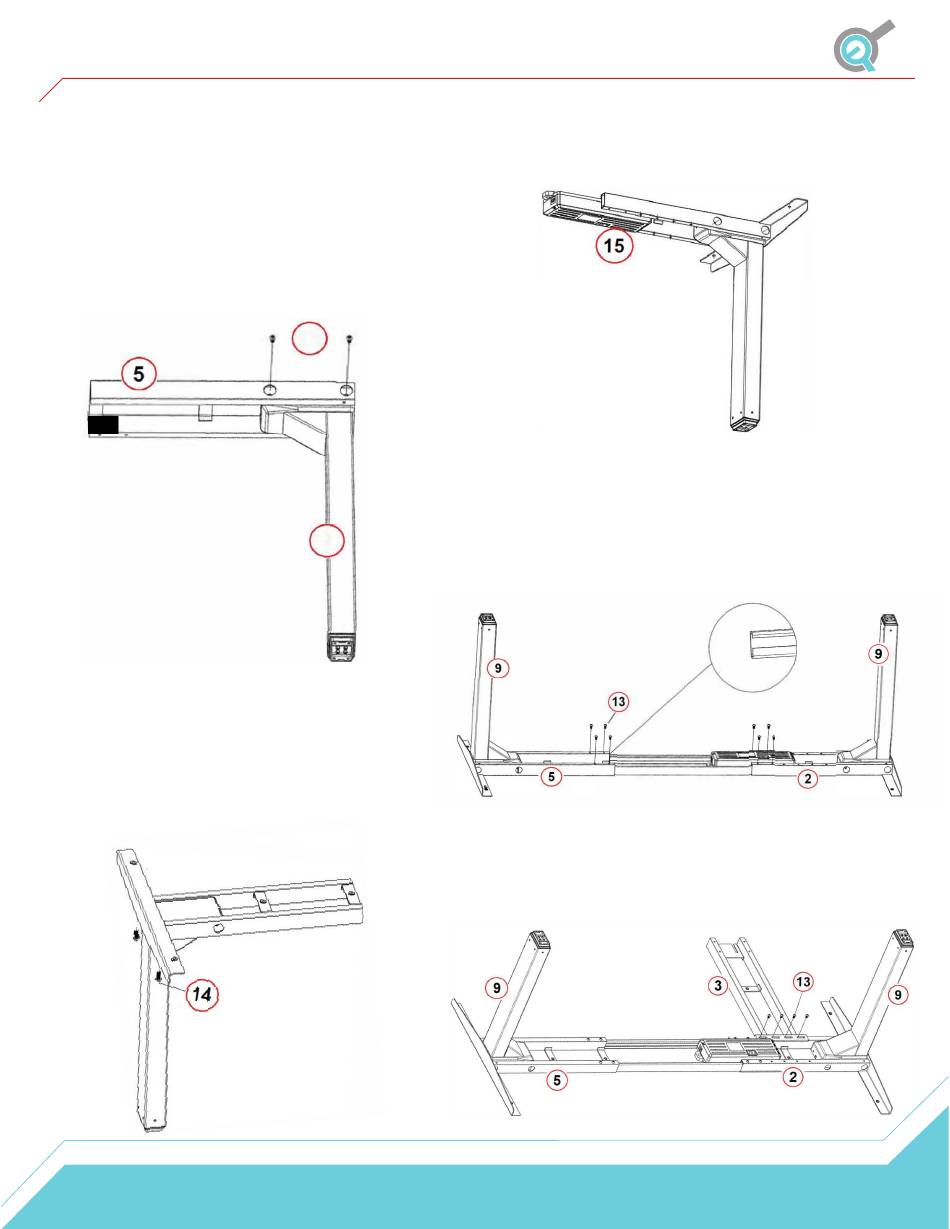

STEP 1
Place one of the Legs (9) into Frame 3 (5). Line up the
holes on the Leg (9) with the holes on Frame 3 (5).
Using the supplied Allen Wrench, insert four M6x 10
Machine Screws (13) through the holes in the Frame
(5), going into the Leg (9) and rotate each screw just a
few times. After all four screws are inserted, tighten
them all.
Follow these steps for the other two Legs (9) and
other Frames (2,5).
• •
STEP 2
Choose the appropriate Side Bracket (4) and slide it
into the Frame (5). Insert two M6x14 Machine
Screws (14) through the two holes in the top of the
side bracket going into the frame end. Using the
supplied Allen Wrench, rotate each screw just a few
turns. After both machine screws are inserted,
tighten them both. Do the same fo the other frame
ends.
13
9
•
STEP 3
The Frame 1 (2) should be placed on the side of the
desk where you plan to mount the Control Box (15).
Slide the Control Box into the Frame (2).
STEP 4
Slide the two Center Rails (7) into the two Frames (2,5)
ensuring that the slots in the Center Rails face inward
and are closer to the top edge when the assembly is
upside down (see image).
Lock the position of the Center Rails (7) using eight
M6x10 Machine Screws (13).
STEP 5
Using four M6x10 Machine Screws (13) to link Frame 2
(3) and Frame 1 (2) as shown in the image beow.
