P r o g r a m m i n g Q u i c k G u i d e
-iLS6307LBU/iLS6307LB

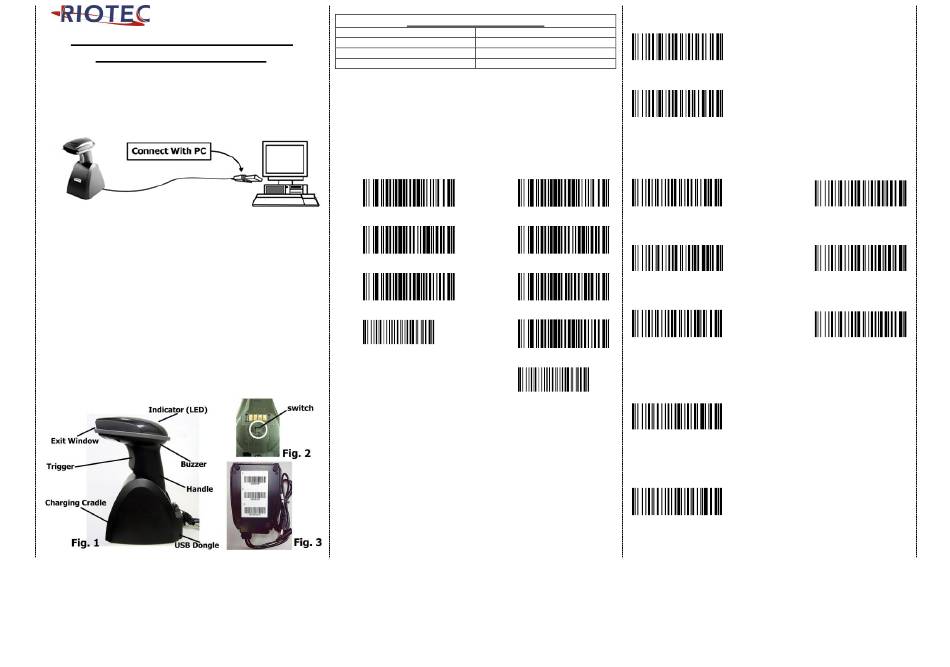

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within 2.4GHz radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 from 1 to 3). If you are unable to complete this setting within
1 minute, please re-plug USB cable & re-start the scanner, and try
again.
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
Note: Please install PL-2303 driver for iLS6307LB
*

LED Indicator Information

Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before turning it
back on.
* Under power-saving mode, there will not be LED indication when charging.

Reset Configuration to Defaults

(scan from A1 to A4 for iLS6307LBU or B1 to B5 for iLS6307LB)
iLS6307LBU
A1 B1
A2 B2
A3 B3
A4 B4
B5
*
Note: Please install PL-2303 driver for iLS6307LB
1

Trigger Mode

Demo

Transmission Speed

Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
iLS6307LB
High-speed
%B%T%H
Transmission
Middle-speed
Transmission
(Default)
Demo
Slow-speed
Transmission

Bluetooth Auto-connection

%D%F%T
Demo
%A%L%D
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the
device)
Ultra Slow-speed
1 transmission
Ultra Slow-speed
2 transmission
Ultra Slow-speed
3 transmission
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
Power-Saving Mode.
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode.
Once you are back within range, press trigger to
connect to the device. (Default)
