RIOTEC RIOSCAN iLS6300FS Quick Manual

RIOSCAN Laser Barcode Scanner
Quick Guide
M o d e l n o . :
i L S 6 3 0 0 F S
Introduction
Designed primarily for smartphone, the iLS6300FS is a 1D barcode
scanner that allows you to scan various barcoded items and send data
to smartphone.
Its in-built 1D Laser Engine allows you to reliably read 1D barcodes on
various shapes and is a great space-saver for busy or limited
workspaces.
It supports not only iOS devices through wireless communication,
but also Android OTG devices through USB cable
Technical data
* Light source..................650 nm Laser Diode
* Depth of field............... 520 mm (40mil)
* Scan speed................... 100 scans/sec
* Best resolution............. 4 mil
* Transmission range......BT Class 1 (100m, line of sight)
* Profiles.........................BT HID & SPP profile
* Memory Capacity.........1MB memory inside
* Input voltage..............5V/DC
* Rechargeable battery... AA NiMH rechargeable battery
1.2V x 2 ( 2.4V 2300mAH)
* Operating time............. more than 25,000 scans when fully
charged
* Operating conditions...-0℃ to 50℃
* Dimensions..................203 X 60 X 95 mm (for scanner)
* Symbologies: "UPC/EAN/JAN, Code11, Code 39, Code 32 (Italian
pharmacy), Code 93,Code 128, CODABAR, Matrix 25, Interleave 25,
Industrial 25, China Post
Delivery content
* Wireless Barcode scanner x 1
* Charging cradle x 1
*
PCB material board+3 screws x 1
* Holder for smartphone x 1
* USB cable x 1
* Quick instructions x 1

Limited Warranty

Riotec provides a one year limited warranty.
This warranty does not cover any product which has been subject to
improper use, neglect or unauthorized repair or installation.
This warranty does not cover consumable parts. (Cables & batteries are
consumables.)
1

Safety instructions

* The product is equipped with a Class 1 laser.
* Never look into the laser beam and never point it at people or animals.
Laser radiation can seriously damage your eyes.
* Do not point the laser beam at mirrors or other reflective surfaces. The
uncontrolled, reflected beam may strike people or animals.
* Don't put scanner in places excessively high temperatures, such as
expose under direct sunlight.
* Don't use scanner in extremely humid area or drastic temperature
change
* The rechargeable battery is permanently built into the product and
cannot be replaced.
* Never damage the rechargeable battery. Damaging the casing of the
rechargeable battery might cause an explosion or a fire!
Charging:

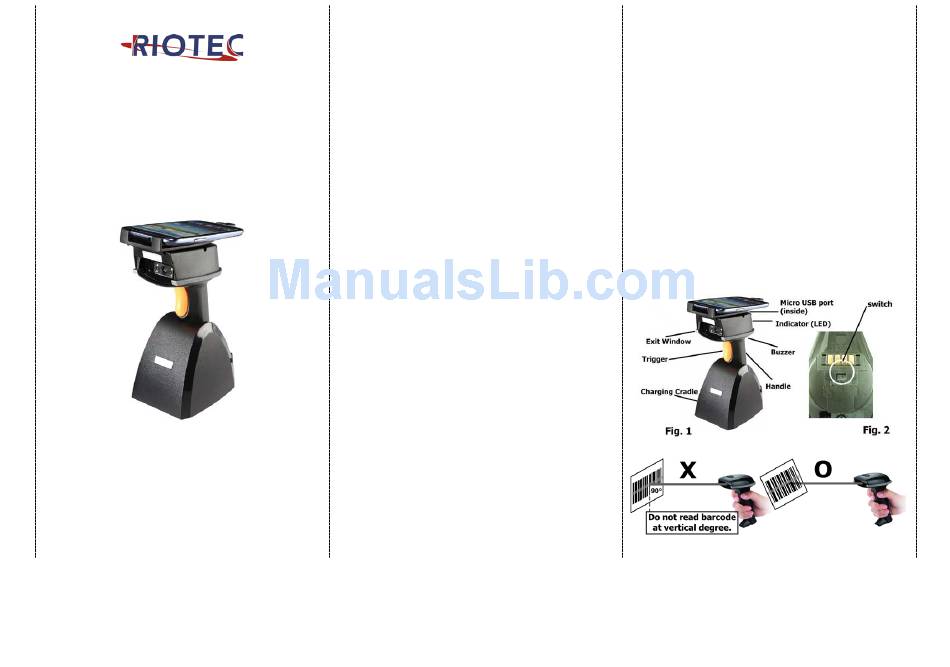

1. Please switch on and charge scanner for 3~4 hours before first use as
shown on Fig.
2. When user charge smartphone & scanner, please use smartphone
original USB power adapter
3. The cradle functions as a charger for the scanner. Even if the scanner's
battery is full, the cradle will continue to supply power to the scanner.
We suggest removing the scanner from the cradle when fully charged.
4. When you charge scanner & smartphone, please enter Wired OTG
mode & switch to "C- Charging mode".
