RIOTEC RIOSCAN iCR6307AS Quick Manual

RIOSCAN CCD barcode scanner
Quick Guide
M o d e l n o . :
i C R 6 3 0 7 A S
Introduction

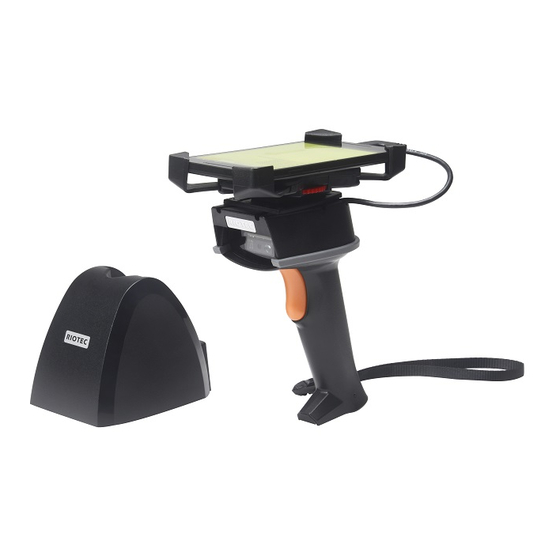

Designed primarily for smartphone, the iCR6307AS is a CCD
barcode scanner that allows you to scan various barcoded
items and send data to smartphone.
Its in-built excellent CCD engine allows you to reliably read
1D barcodes on various shapes and is a great space-saver
for busy or limited workspaces.
It supports not only iOS devices through Bluetooth
communication, but also Android OTG devices through USB
cable
Delivery content
Bluetooth Barcode scanner x 1
*
Charging cradle x 1
*
PCB material board+3 screws x 1
*
Holder for smartphone x 1
*
USB cable x 1
*
Quick instructions x 1
*
Limited Warranty
Riotec provides a one year limited warranty.
This warranty does not cover any product which has been
subject to improper use, neglect or unauthorized repair or
installation.
This warranty does not cover consumable parts.
(Cables & batteries are consumables.)
Safety instructions
Don't put scanner in places excessively high temperatures,
*
such as expose under direct sunlight
Don't use scanner in extremely humid area or drastic
*
temperature change
The rechargeable battery is permanently built into the
*
product and cannot be replaced.
Never damage the rechargeable battery. Damaging the
*
casing of the rechargeable battery might cause an explosion
or a fire!
1
Charging:
1. Switch on and charge the scanner for 3~4 hours before first usage as shown
on Fig.2. Please shift the switch of the scanner to C mode (Charging mode)
to charge.
2. The On and Off switch is located at the bottom of the handle. You may use a
fine and thin stick, then carefully press into it until you hear a low clicking
sound.
3. When you want to charge the smartphone & scanner, please use
smartphone original USB power adapter.
4. The cradle functions as a charger for the scanner. Even if the scanner's
battery is full, the cradle will continue to supply power to the scanner. We
suggest removing the scanner from the cradle when fully charged.
5. When you charge the scanner with the smartphone, please enter Wired OTG
mode & switch to "C- Charging mode".
iCR6307AS supports BT communication mode (for iOS and Android) and Wired
OTG communication mode (For Android OTG devices only/ For wired mode, you
must shift the scanner's switch to "O"; followed by scanning the code of Wired OTG
communication mode if you are shifting back from BT).
*Scan the following codes to switch in between the modes. It is crucial to scan the
Clean memory data code on (Page 4, 3rd column) before switching from
Bluetooth Communication to Wired OTG communication.
Bluetooth BT communication
Wired OTG communication mode
(default)
