RIOTEC iCR6307AB Programming Quick Manual

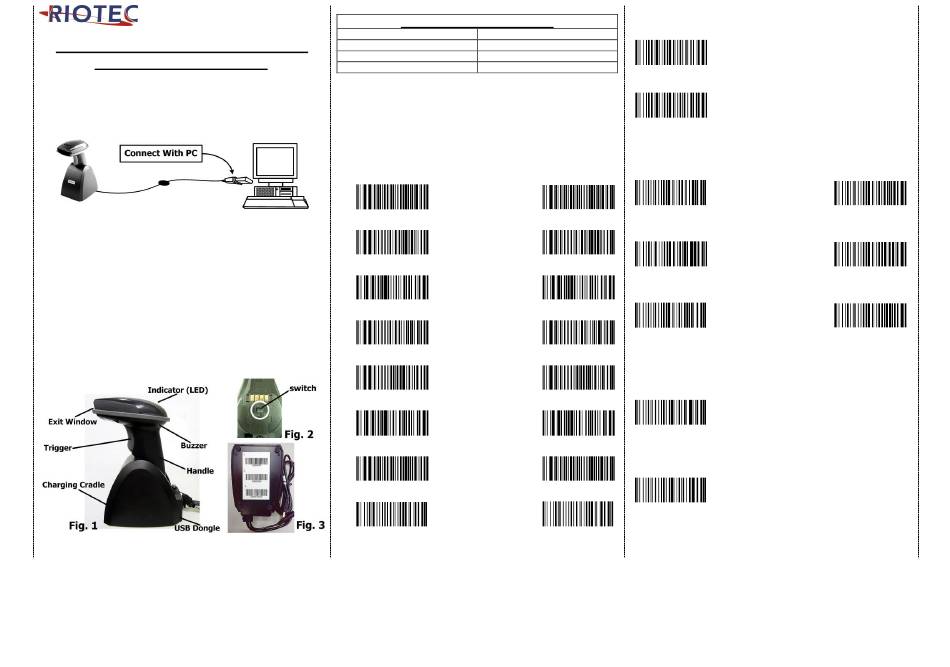

P r o g r a m m i n g Q u ic k G u id e

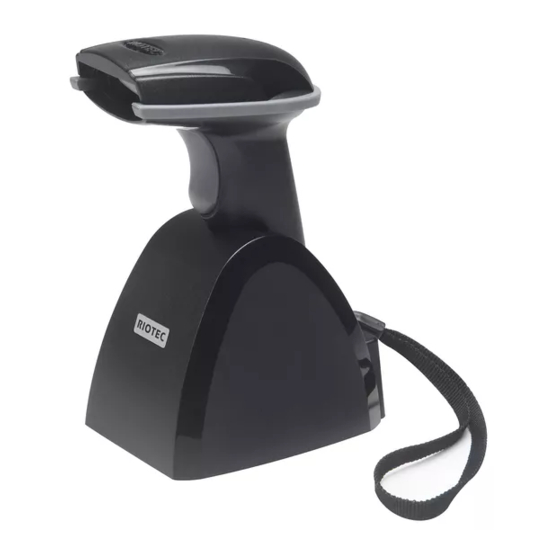

iCR6307ABU/iCR6307AB

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to the
PC USB port on the PC as below described, Ensure that all connections
are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time before
use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle within
2.4GHz radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan the 3
barcodes on the bottom of cradle sequentially. (Shown on Fig. 3 from
1 to 3). If you are unable to complete this setting within 1 minute,
please re-plug USB cable & re-start the scanner, and try again.
4. Charging issue: Cradle works as charger when putting scanner on it.
Even if the scanner's battery is full, the cradle will continue to supply
power to the scanner. We suggest you to remove scanner from cradle
when scanner is charged fully
* Note: Please install PL-2303 driver for iCR6307AB
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before turning it
back on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A8 for iCR6307ABU or B1 to B8 for iCR6307AB)
iCR6307ABU
A1
A2
Demo
A3
W100900
A4
A5
Demo
WFF115D
A6
Demo
A7
W010F00
A8
Note: Please install PL-2303 driver for iCR6307AB
*
1

Trigger Mode

Transmission Speed

Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
iCR6307AB
Demo
B1
High-speed
Demo
Transmission
W010F01
B2
WFFD980
Middle-speed
Transmission
Demo
B3 (Default)
www.tec-it.com
Slow-speed
B4
%B%T%L
Transmission
WFFD9C4
Demo
Bluetooth Auto-connection
B5
Demo
WFF115D
B6 %A%L%E
Demo
B7
W010F00
B8
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the device)
Ultra Slow-speed
1 transmission
.
Ultra Slow-speed
2 transmission
Demo
Ultra Slow-speed
3 transmission
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode. Once you are
back within range, press trigger to connect to the
device. (Default)
