RIOTEC iDC9502N Quick Manual

B l u e t o o t h 2 D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 5 0 2 N

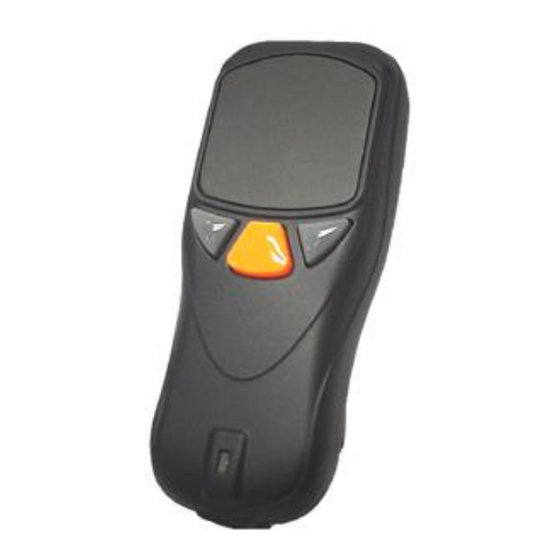

Introduction

Designed primarily for P.O.S. retail environments, the
iDC9502N is a Bluetooth pocket barcode scanner that
allows you to scan various barcoded items.
Its in-built Motorola SE2707 engine allows you to reliably
read 2D barcodes on various shapes and is a great space-
saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through
Bluetooth HID or SPP communication.

Delivery content

* Pocket Barcode scanner x 1
* Mini USB cable x 1 (for charging only)
* Quick instructions x 1
* Strap x 1

Limited Warranty

We provides one-year limited warranty.
We will not warranty any product which has been subjected to
improper usage, neglect or unauthorized repair or installation.
Besides, warranty does not cover the faulty usages or consumable
parts. (Cable & battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially observe the
safety information. If you do not follow the safety instructions and
information on proper handling in this manual, we assume no liability
for any resulting personal injury or damage to property.
* Don't put scanner in places excessively high temperatures, such as
expose under direct sunlight
* Don't use scanner in extremely humid area or drastic temperature
change
*
The rechargeable battery is permanently built into the product and
cannot be replaced.
Never damage the rechargeable battery. Damaging the casing of
*
the rechargeable battery might cause an explosion or a fire!
1

Operating elements

* In the beginning, please press orange button for 8 seconds to turn it
on. (If not, please charge it for 10 minutes and do it again.)
* Then, charge scanner for 3~4 hours before use.
* User can press right grey button for 2~3 seconds to enter power-saving
mode. (sleep mode)
Or, presses left & right grey keys together for 8 seconds to turn it off.
(For iOS Device ONLY)
the button to raise and
lower ON-Screen Keyboard
SCAN/ Power ON key
Press 8 seconds to
turn it on,
press 1 second to
wake it up from sleep
mode
Mini USB port
with protective cover
charge scanner via mini USB host cable.

How to Connect to Smartphone or Tablet

Make sure your device has HID or SPP profile
1.
Turn off Power-Saving mode on your smartphone/tablet first
2.
Then, choose HID or SPP profile and scans the following 2
3.
setting codes before connecting to smartphone/tablet.
(A1  A2 or B1  B2)
If you don't know what profile your device is, please try HID
profile first, then, SPP profile.
HID profile
A1
Demo
A2
%B%R%C
* Under HID profile, press the left button for 4 seconds to unpair device.
Scanner can then be connected to other BT device.
Laser Exit
Window
Power Saving button:
Press the button for 2~3
second then enter power
saving mode
Indicator (LED)
SPP profile
B1
Demo
B2
%B%R%C
