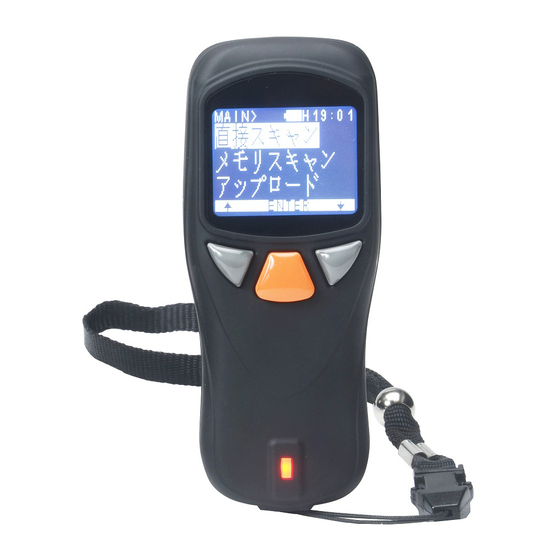

RIOTEC iDC9607AW Quick Manual

B l u e t o o t h C C D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 6 0 7 A W

Introduction

Designed primarily for POS retail/inventory environments, the
iDC9607AW is a Bluetooth pocket barcode scanner that allows you
to scan various barcoded items.
Its in-built excellent CCD engine allows you to reliably read 1D
barcodes on various shapes and is a great space-saver for busy or
limited workspaces.
It supports iOS, Android, and Windows devices through BT HID or BT
SPP communication.
Delivery content
* Pocket Barcode scanner x 1
* Mini USB cable x 1 (charged by USB power adapter of smartphone
only)
* Quick instructions x 1
Glove set (Glove + Holder + Ring Trigger Cable) x 1set
*
Limited Warranty
Riotec provide one-year limited warranty.
Riotec will not warranty any product which has been subjected to
improper usage, neglect or unauthorized repair or installation.
Besides, warranty does not cover the faulty usages or consumable
parts.
(Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially observe the
safety information.
If you do not follow the safety instructions and information on proper
handling in this manual, we assume no liability for any resulting
personal injury or damage to property.
* Don't put scanner in places excessively high temperatures, such as
expose under direct sunlight
* Don't use scanner in extremely humid area or drastic temperature
change
* The rechargeable battery is permanently built into the product and
cannot be replaced.
Never damage the rechargeable battery. Damaging the casing of
*
the rechargeable battery might cause an explosion or a fire!
1

Operating elements

** Please switch ON and charge scanner for 3~4 hours at first time
before use.
Exit
Window
The button to raise/lower
ON-Screen Keyboard
(refer to left column of
page #3)
SCAN/ENTER/Power ON
Button
Mini USB port, with protective cover
Pocket scanner is charged by USB power adapter
only via mini USB cable
** In the beginning, you must press the orange trigger button for
8 seconds to turn on the pocket barcode scanner. Then, press
it for scanning barcodes & waking up from sleeping mode.
** If you won't use pocket scanner for quite a long time, you
can press 2 grey buttons to enter "Deep Sleep Mode" (like
turn-off).
Power Saving button:
Press the button for 2~3
seconds then enter power
saving mode
Indicator (LED)
