RIOTEC iDC9600KW Quick Manual

B l u e t o o t h 2 D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 6 0 0 K W
Introduction

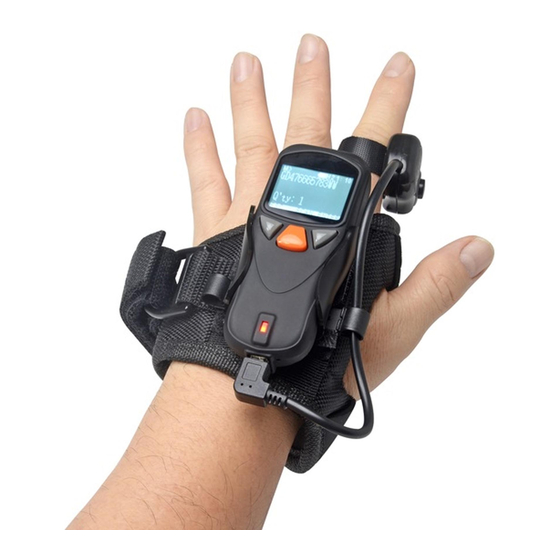

Designed primarily for P.O.S. retail environments, the
iDC9600KW is a Bluetooth pocket barcode scanner that
allows you to scan various barcoded items.
Its in-built excellent 2D engine allows you to reliably read
1D / 2D barcodes on various shapes and is a great space-
saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through
Bluetooth HID or SPP communication.
Delivery content
* Pocket Barcode scanner + Strap x 1
* Mini USB cable x 1 (charged by original USB power
adapter)
* Quick instructions x 1
* Glove set (Glove + Holder + Ring Trigger Cable) x 1set
Limited Warranty
We provide one-year limited warranty.
We will not warranty any product which has been subjected
to improper usage, neglect or unauthorized repair or
installation.
Besides, warranty does not cover the faulty usages or
consumable parts. (Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially
observe the safety information.
If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for
any resulting personal injury or damage to property.
* Don't put scanner in places excessively high temperatures,
such as expose under direct sunlight
* Don't use scanner in extremely humid area or drastic
temperature change
* The rechargeable battery is permanently built into the
product and cannot be replaced.
* Never damage the rechargeable battery. Damaging the
casing of the rechargeable battery might cause an
explosion or a fire!
1
Operating elements
** Please switch ON and charge scanner for 3~4 hours at first time
before use.
Exit Window
The button to
raise/lower ON-Screen
Keyboard (refer to left
column of page #3)
SCAN/ENTER/Power
ON Button
Mini USB port, with protective cover
Pocket scanner is charged by USB power
adapter only via mini USB cable
** In the beginning, you must press the orange
trigger button for 8 seconds to turn on the pocket
barcode scanner.
Then, press it for scanning barcodes & waking up
from sleeping mode.
** If you won't use pocket scanner for quite a long
time, you can press 2 grey buttons to enter "Deep
Sleep Mode" (like turn-off).
Power Saving button:
Press the button for
2~3 seconds then
enter power saving
mode
LED Indicator
