Salter Brecknell C3235 User Instructions

Checkweigher
Hide thumbs

Advertisement

Table of Contents

C3235 Checkweigher
User Instructions
1.0
Introduction
The C3235 is a checkweighing scale for the rapid indication of over, under
or acceptable weight in a production environment. This manual covers the
introduction to the unit, its use, configuration and calibration.
Front Panel
Figure
1.1
shows the front panel of the unit. The front panel includes the
display window, the annunciators arrayed around the display, the four keys
and the bubble level.

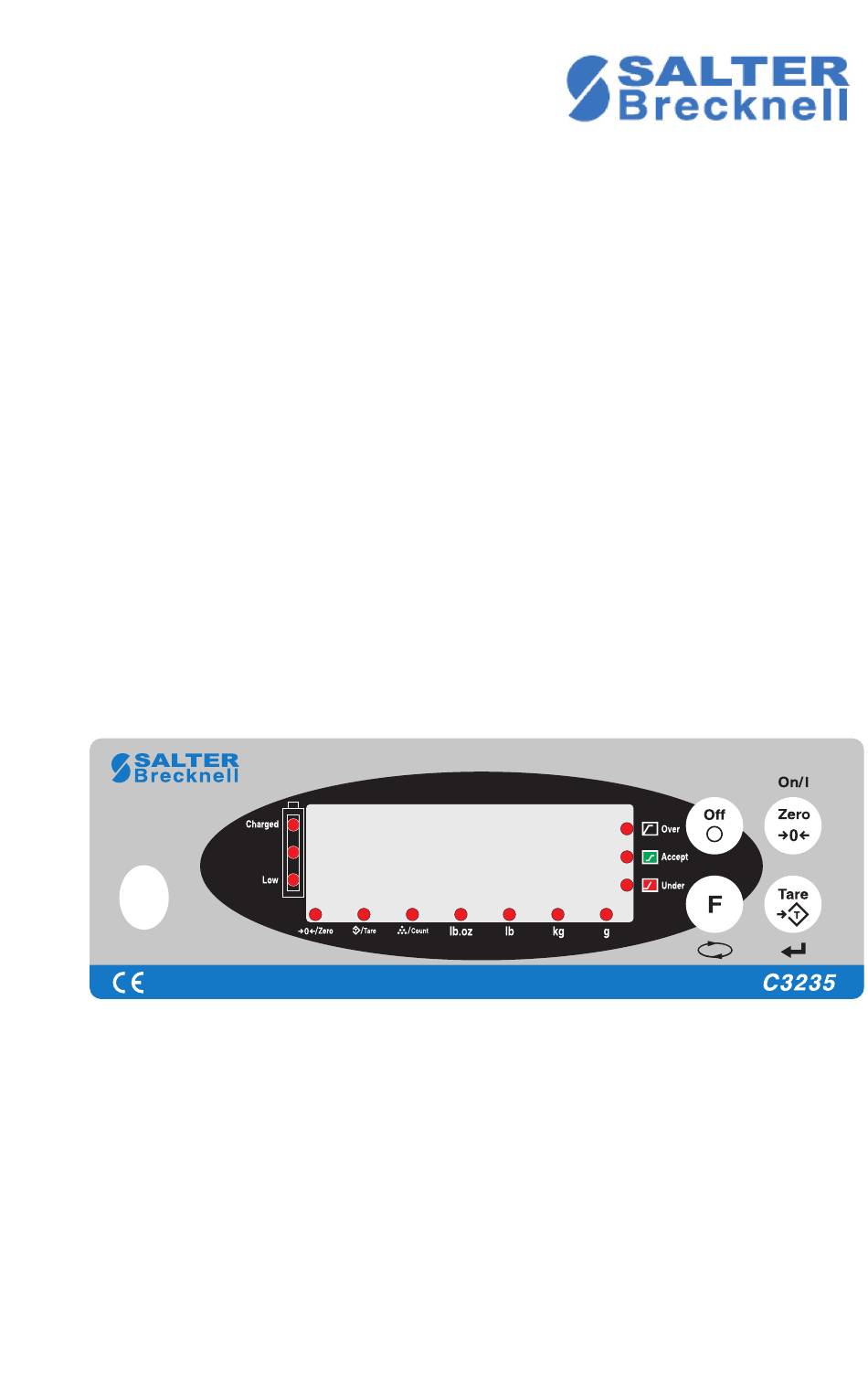

Figure 1.1 C3235 front panel
NOTE: This product is rated to IP54. Care must be taken to ensure that the
power/mains plug does not become wet. If the product is required to be
used while plugged into the outlet/mains, the plug must either be located
outside the wet area, or must be plugged into a socket which provides
suitable IP rating with the plug mated.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3235 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salter Brecknell C3235

Summary of Contents for Salter Brecknell C3235

  • Page 1 C3235 Checkweigher User Instructions Introduction The C3235 is a checkweighing scale for the rapid indication of over, under or acceptable weight in a production environment. This manual covers the introduction to the unit, its use, configuration and calibration. Front Panel Figure shows the front panel of the unit.

  • Page 2: Display Messages

    Keys and Annunciators ZERO key. Press this key to turn the scale on and zero the display. TARE key. Press this key to tare the weight on the scale. Also accepts the displayed item in the menu structure or during numeric entry. OFF key.
  • Page 3 General Scale Information Read this user manual before using the scale so you understand the operating features. Do not overload the scale or throw heavy things on the scale. Damage from overloading and abuse is not covered by the guarantee. Keep the scale clean with a damp cloth and mild cleaning solution.

  • Page 4: Gross Weighing

    The steps for various kinds of weighing are explained in the following pages. To set parameters and calibrate the unit, see Accessing the Configuration Menu and Setting Parameters on page 6 Calibration on page Gross Weighing Power up the scale. Zero the scale if necessary by pressing the ZERO key…...

  • Page 5: Configuration Menu

    Checkweighing Power up the scale. Zero the scale if necessary by pressing the ZERO key… 0 is displayed. Place the item to be checkweighed on the scale platform. The weight is displayed and the Over, Accept or Under annunciator lights. You must set the acceptable window parameters in the Configuration menu which is described in rAnGE on page Remove item from the scale platform and repeat steps 3 and 4 for...
  • Page 6 You use the Configuration menu to set the following parameters: rAngE Use this to set the Over/Accept/Under ranges. Units Use this to set the unit of measure and to enter the count mode. A-OFF Use this to enable or disable the auto-off function. If enabled the scale will power off automatically after 10 minutes of inactivity.
  • Page 7 The current value for the lower range is displayed, the Under annunciator flashes, and the first digit flashes. What you set with the following steps is the lowest acceptable weight for the item to be weighed. Remember as you set the values for the lower and upper ranges that the decimal does not appear on the display but you enter the values as if it were.
  • Page 8 Remove the item from the scale and repeat steps 1 and 2. Units Use the Units menu item to set the unit of measure to Lbs, Kgs or Grams. You can also choose to set the scale to the counting function. Follow these steps to set the Units item.
  • Page 9 Counting Operation Enter the counting mode by selecting PCS as the unit of measure. This is explained in the previous section. If your scale has no pieceweight in memory, the Count annunciator will flash. If you want to use this pieceweight, skip to step 3 below to count items.
  • Page 10 Press the F key to toggle between the choices. If you choose on, the scale will automatically power off after 10 minutes. If you choose oFF, the scale will not automatically shut off. When your choice is displayed, press the TARE key… The function is set and the scale returns to normal weighing mode.
  • Page 11 Current setting, Zero0.5 through Zero5.0, is displayed. Press the F key repeatedly to scroll through the choices. Choices are in 1/2 division increments. When your choice is displayed, press the TARE key… The function is set and the scale returns to normal weighing mode. bUZZEr Use this item to set the Accept buzzer or beeper on or off.

  • Page 12: Multipoint Calibration

    Place the scale on stable, level surface and turn the unit on. After the self-check is complete, press and hold the TARE key until… CAL is briefly displayed, then 0. Empty the scale and press the TARE key to set the zero point. Hg or Lb is displayed.
  • Page 13 Repeatedly press the F key to scroll through the choices. When your choice is displayed, press the TARE key… The display will briefly show 1/3 capacity, (10Lb for a 30 lb capacity scale), and then display 0. Press the ZERO key if the display is not at 0.

  • Page 14: Specifications

    Specifications Models C3235-3/6 C3235-6/12 C3235-15/30 Max. Cap. 3kg/6lb 6kg/12 lb 15kg/30lb Division Size 0.5g/0.01 lb 1g/ 0.02 lb 2g/0.05 lb Max. Tare 100% Accuracy Class Pan size 7.5” x 9” Working Temperature 23° - 95° F (-5°+35°C) Power 6V4.5Ah rechargeable sealed battery, with built-in charger.
  • Page 16 Salter Brecknell Weighing Products 1000 Armstrong Dr. Fairmont, MN 56031 Toll free: 800-637-0529 Tel: 507-238-8702 Fax: 507-238-8271 e-mail: sales@salterbrecknell.com www.salterbrecknell.com October, 2014 C3235_u.fm AWT35-500149 Issue AC...
