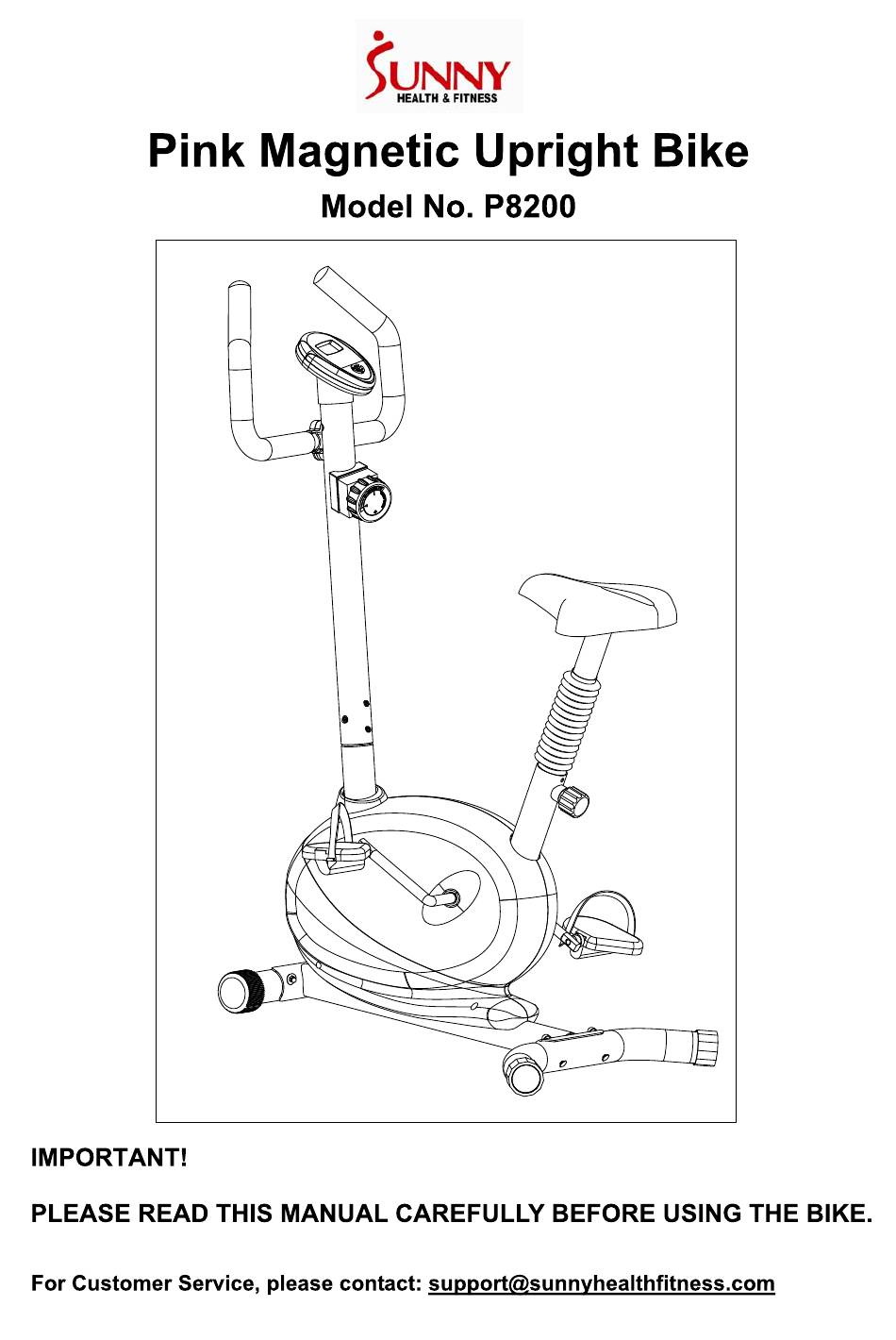

Pink magnetic upright bike

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the P8200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness P8200

  • Page 2 Important Safety Information We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. Please read the information below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3: Exploded View

    EXPLODED VIEW...
  • Page 4: Parts List

    PARTS LIST Description Qty. Description Qty. Computer End cap Φ50 Computer wire 1 Saddle Trunk line Washer d8*Φ16*1.5 8- Level Tension control Nylon Nut Screw M5*15 Saddle tube Handlebar post Stretch pipe Arc washer d8*Φ20*2*R30 Bushing Φ50 Screw M8*16 Knob M16*1.5*22 Sensor wire Decoration cover...
  • Page 5: Hardware Package

    HARDWARE PACKAGE...
  • Page 6 ASSEMBLY INSTRUCTIONS Step 1: A. Attach the Front stabilizer (23) and Rear stabilizer (26) to the Main frame (9) fixing with the 4 sets Carriage bolt (22), Arc-washers (6) and Nuts (24). B. Attach the Pedals(25L/R)to the *left and right side of Crank (11). Left crank has reversed threading;...
  • Page 7 Step Fix the Saddle (28) to the Saddle tube (31) with the Nylon nuts (30) and Washers (29).
  • Page 8 Step A. Connect the bottom of the Tension control wire (10) with the Tension control (3) and connect the Sensor wire (8) with Trunk line (2). NOTE : Please make sure the Tension control (3) is at the lowest tension level before you begin. This will ensure the wires are at their longest reaching points to make the connection easier.
  • Page 9 Step • • A. Connect the Computer wire (1a) with the Trunk line (2). Connect the Computer (1) to the top of Handlebar post (5). B. Fix the Handlebar (20) to the Handlebar post (5) with the Screws (13) and Spring washer (12) and attach the Cover (17). Assembly is complete.
