SMART UPRIGHT ROW-N-RIDE
EXERCISER IN PINK
P2100 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SMART UPRIGHT ROW-N-RIDE P2100 SMART
Summary of Contents for Sunny Health & Fitness SMART UPRIGHT ROW-N-RIDE P2100 SMART

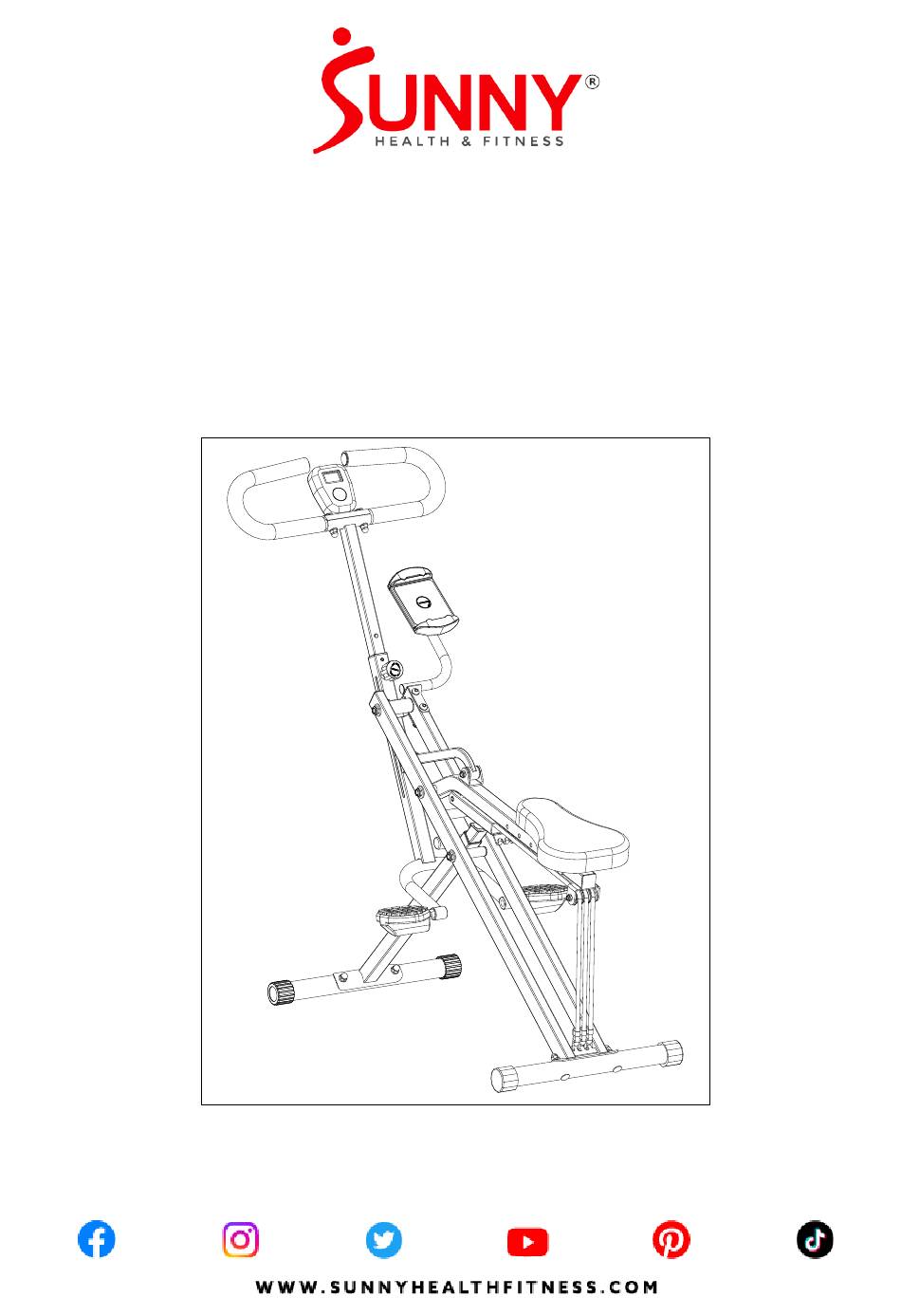

- Page 1 ® SMART UPRIGHT ROW-N-RIDE EXERCISER IN PINK P2100 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. 40 41 P2100 SMART HARDWARE PACKAGE Step 2 Step 5 Step 7 M8*40.5 2PCS OD16*ID8 2PCS Φ 47*40*M8 M8*12 2PCS OD16*ID8 4PCS M8*12 4PCS Step 8 M8*48 4PCS THANK... -
Page 4: Hardware Package
HARDWARE PACKAGE P2100 SMART HARDWARE PACKAGE Step 2 Step 5 Step 7 M8*40.5 2PCS OD16*ID8 2PCS 47*40*M8 Φ M8*12 2PCS OD16*ID8 4PCS M8*12 4PCS Step 8 M8*48 4PCS Step 3 M8*13 2PCS M8*40.5 2PCS Φ M8*13 M8*55 2PCS Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Open the Main Frame (No. 28) as shown in the picture on the left.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: M8*40.5 Insert the Connecting Tube (No. 15) into the metal M8*13 A S13,S15,S17 bracket slot of Seat Connecting Tube (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 6: Insert the Computer (No. 41) onto the tab on the Handlebar (No. 4). STEP 7: Attach the Fixed Iron Sheet (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 9: Remove the Butterfly Nut (No. 45) and the Washer (No. 46) from the Device Holder (No. 47). Φ...
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 11: Unhook Exercise Bands (No. 42) from the Seat Connecting Tube (No. 31), and connect the Exercise Bands (No.
-
Page 10: Adjustment Instructions
ADJUSTMENT INSTRUCTIONS ADJUSTING THE HANDLEBAR Loosen the Knob (No. 10) and pull out. Raise or lower the Handlebar Tube (No. 7) to desired height. Then tighten the Knob (No. 10). ADJUSTING THE SEAT Loosen and remove the Knob (No. 21) located under the Seat Connecting Tube (No. -
Page 11: Folding Instructions
FOLDING INSTRUCTIONS A. Adjust the Seat Tube (No. 25) to the lowest level by the Pin (No. 29). NOTE: Make sure Exercise Bands (No. 42) are not connected to Main Frame (No. 28) when folding. B. Adjust the Handlebar Tube (No. 7) to the lowest level by Knob (No. -
Page 12: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Battery Cover Battery BATTERY INSTALLATION: 1. Take out 2 AA batteries from manual bag. 2. Press the buckle of battery cover on the Computer (No. 41), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 41). Pay attention to the battery + and –... - Page 13 EXERCISE METER SPECIFICATIONS: TIME…................. 00:00-99:59 MIN/SEC. CNT (COUNT) ............... 0-9999 STROKES CAL (CALORIES)… ............. .0-999.9 KCAL TOTAL (TOTAL COUNT)............0-9999 K PULSE…………………………………………………………...40-240BPM FUNCTIONS: TIME: Displays the workout time while exercising. CNT (COUNT): Accumulate the strokes while exercising. CAL (CALORIES): Displays calories amount burned while exercising. TOTAL (TOTAL COUNT): Displays the total number of strokes since batteries installed.
- Page 14 TECHNICAL DATA Connectivity: Bluetooth LE Frequency Range: 2400~2483.5Mhz Transmitting Power: 0dBm APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3.
-
Page 15: Exploded Diagram
EXPLODED DIAGRAM 27 26 16 16 5 33 5 33... -
Page 16: Parts List
PARTS LIST Qty. Description Spec. Qty. Description Spec. Φ29 Sponge Main Frame Φ25*1.5 Φ8*42.5 Plug Φ19*35 Bolt M8*40.5 Plug Seat Connecting Handlebar Tube Front Connecting Washer OD16*ID8 Tube M8*13 M8*12 Φ46*36 Handlebar Tube Bushing 30*30*T1.5 Bolt M8*48 Pedal Connecting Front Stabilizer Tube Φ38*L65*M16 Φ38*35...
