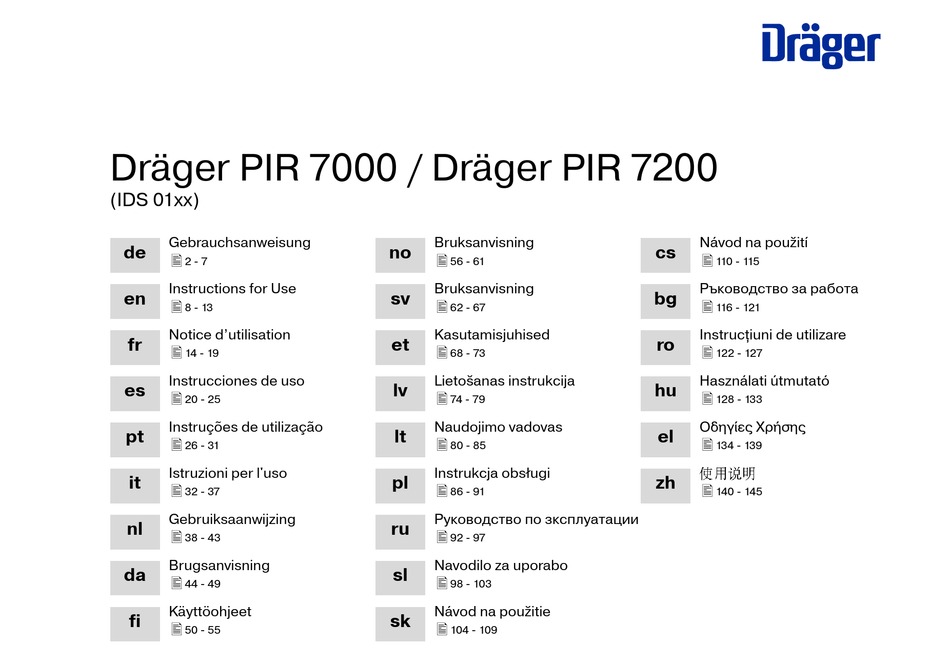

  • Page 1 Dräger PIR 7000 / Dräger PIR 7200 (IDS 01xx) Gebrauchsanweisung Bruksanvisning Návod na použití 2 - 7 56 - 61 110 - 115 Instructions for Use Bruksanvisning Ръководство за работа 8 - 13 62 - 67 116 - 121 Notice d’utilisation...

  • Page 2: For Your Safety

    Intended Use PIR 011 (68 11 898) for the model with M25 thread (IDS 7000x). Dräger PIR 7000 Infrared Gas Transmitter – For stationary, continuous monitoring of the concentra- Furthermore, any approved junction box can be used that tion of combustible gases and vapours containing hydro- has an M25 (EEx e and Ex tD)- or 3/4"...

  • Page 3: Operation

    = 4 to 20 mA and HART signal output Depending on the accessories that have been in- The junction box PIR 7000 is designed to be connected to white = Serial port stalled, there may be deviations to the performance the Dräger PIR 7000 / Dräger PIR 7200 gas transmitter with...

  • Page 4: Maintenance

    Beam block warning (preventive maintenance func- contact locations. tion) <1.2 mA Device in multidrop operation (polling address 1 ... 15) – – – Zero-point calibration Dräger PIR 7000 / Dräger PIR 7200 Action Status Indicator Output Signal Meaning Maintenance Prepare the device for zero calibration:...
  • Page 5 Green and yellow are Maintenance Calibration is acknowledged. finishing calibration. wand on the mark signal »S «. Span calibration Dräger PIR 7000 / Dräger PIR 7200 Remove the mag- Green/yellow Maintenance The gas transmitter waits with Action Status Indicator Output Signal Meaning netic wand.

  • Page 6: Fault - Cause - Remedy

    Attention: Turn off the calibration gas. However, since the instrument has not been registered for use in private households, it can- Remove calibration adapter PIR 7000. not be disposed of as special household waste. F or disposal, it can be sent back to your...

  • Page 7: Technical Data

    Relative change of the display at 50 %LEL (Dräger PIR 7000) resp. at 5 % vol (Dräger PIR 7200). ** The measurement value response time can be longer when using further accessories, such as the hydrophobic filter PIR 7000. Observe the user manual for the respective accessory! 1) The year of construction is indicated by the third letter of the serial number on the type plate: Y = 2007, Z = 2008, A = 2009, B = 2010, C = 2011, etc.

  • Page 9: Declaration Of Conformity

    Declaration of Conformity...
  • Page 10 Dräger Safety AG & Co. KGaA Revalstraße 1 D-23560 Lübeck Germany Tel. +49 451 8 82- 0 +49 451 8 82- 20 80 www.draeger.com 90 23 885 - GA 4677.300_MUL091 © Dräger Safety AG & Co. KGaA 1st edition - January 2007...
