11 Appendix

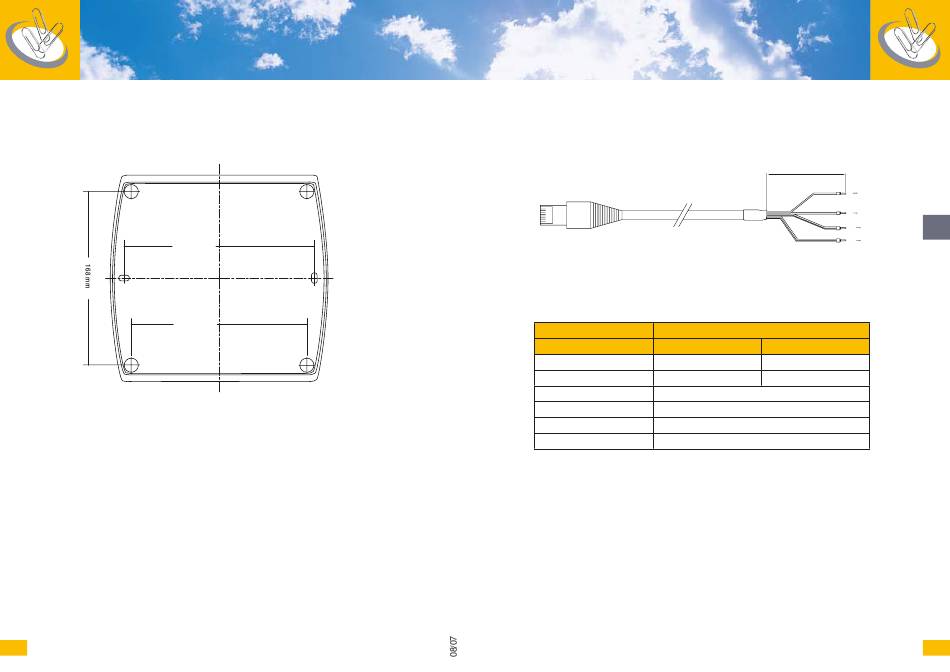

11.1 Drilling template

184 mm
170 mm
37

11.2 Cable assembly

8
1
RJ-45 Jack
Mode 1
1,2 V+ 1) / NC
3,4 GND 1) / NC
5
6
7
8
1) Power supply via the MaxComm Network
2) Power supply via the AC adaptor
■
Jack: 8 pin Modular RJ45, e.g. Hirose TM11.
■ Cable: LAN cable CAT5 UTP, twisted pair.
40 mm
8 B
7 A
3,4 GND
1,2 V+
Aderendhülsen verwenden!
Use cable end sleeves!
Screw terminal
Mode 2
2) V+
2) GND
N.C
N.C
A
B
en
