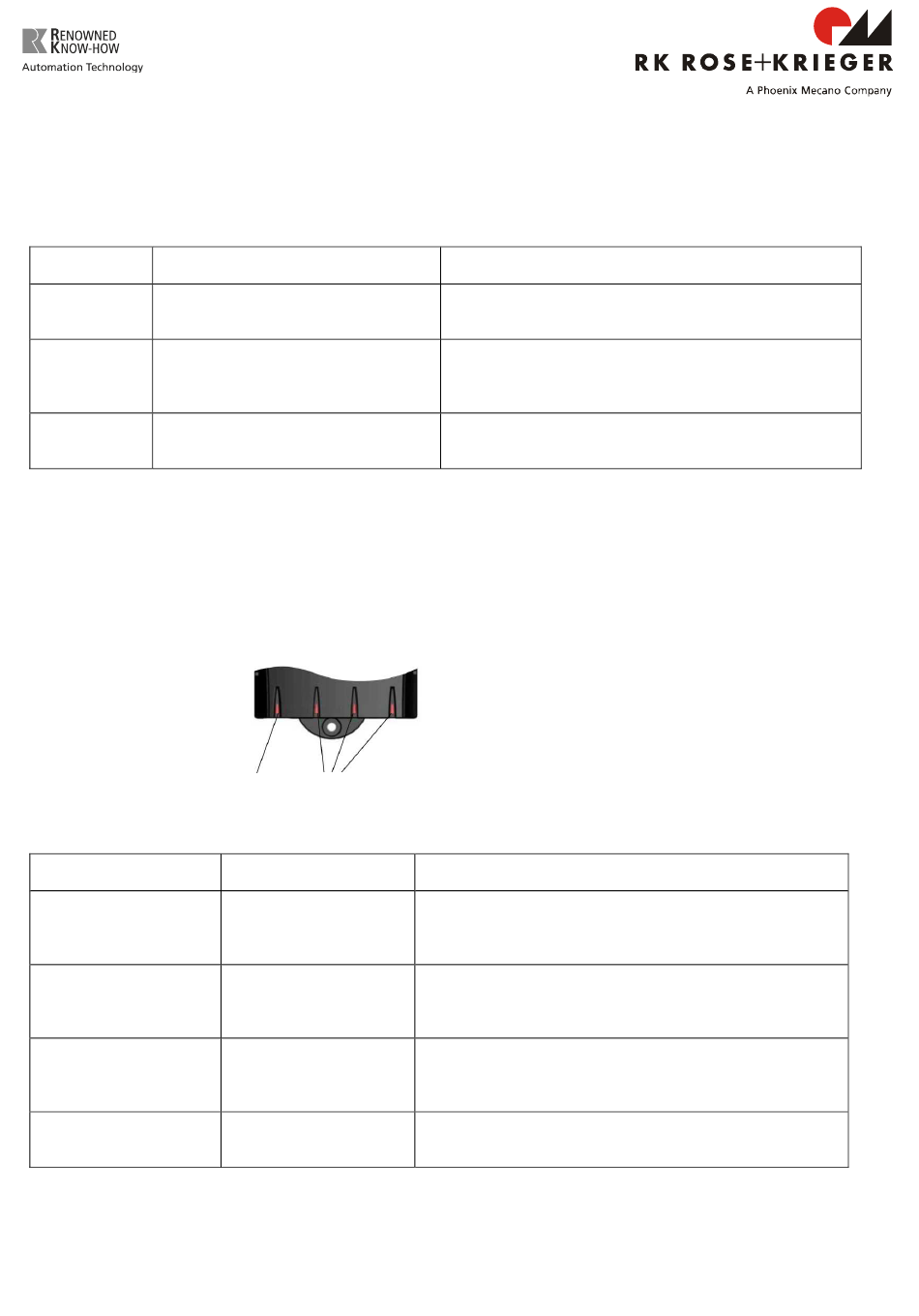

5. Error indication with Click codes
When the control unit is switched on the user gets an acoustic signal (click) sent by the control unit which gives a
state-information about the system.
The table below shows which number of clicks corresponds to certain information.
Number of
clicks
2x
Normal operation
1x
Emergency operation
Last shutdown incomplete/
3x – 6x
forced reset
6. Error indication with LEDs
Depending on the version, the COMPACT-e-EU is equipped with LEDs to indicate errors even if a handswitch
without display is used. These LEDs are placed on the housing top over the handswitch socket and each motor
socket.
Control box LED
Error code
A Motor channel LED is
blinking
Control box LED is on
A Motor channel LED is
blinking
A Motor channel LED is
on
Motor channel LEDs
Description
Internal Error
Reset necessary
Kurzschluss im
Motorkanal
(die LED über dem
betroffenen Kanal blinkt)
Motor is missing
(the LED over the
affected channel is on)
State information
No problems detected
The system is in Safe-State, movement is not possible.
Check LED indication and/or error codes on the display of
the handswitch.
Check LED indication and/or error codes on the display of
the handswitch.
Remedy
Unplug power cord and plug it in again after a few
seconds. Make a manual reset.
If the error is still indicated unplug power cord and
contact the customer service.
Make a manual reset
Note: The LED is still on while the reset movement or if
reset is not completed. It is deactivated when the reset
is finished.
Unplug the control unit
Fix the external short circuit
Start the control unit again
Plug in the correct motor to the motor socket that
shows the error
Reset all motors
Bestell-Nr. 99425 Ausgabe 11.2014 Version 1-0
