1. Connecting the multilifts
Up to two Multilifts can be connected to the slots (slots 1 and 2)
marked on the Compact-e-3-EU and moved synchronously.
With the special versions, up to 3 Multilifts (slots 1, 2 and 3)
can be connected.
Depending on the special version, the Multilifts can be moved
synchronously, "2+1" or "1+1".

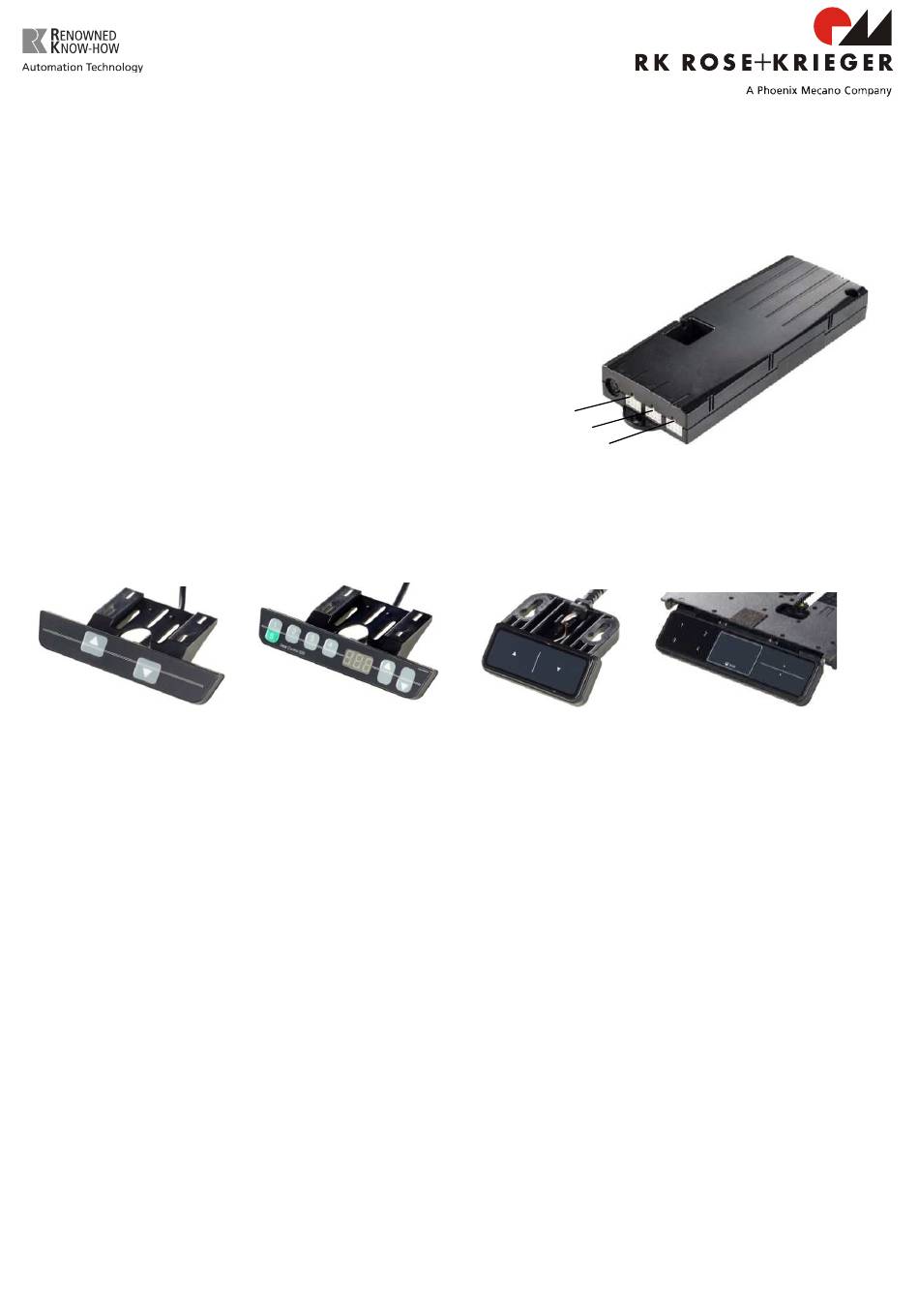

Manual control switch
2.
All manual control switches have an Up button (arrow upwards) and a Down button (arrow
downwards). Manual control switches with a display also have buttons 1, 2, 3, 4 and S.
HSU-OD-2
(Two buttons
membrane key)
3. Commissioning
When supplied, the controllers are initialised, allowing you to connect and move the Multilifts
immediately.
If this is not possible, an initialisation run must be performed.
To perform an initialisation run, move the Multilifts to the lowest position by pressing the Down button.
Let go of the Down button. For initialising, the Down button must be pressed again for at least 2-3
seconds and be kept pressed during the entire initialisation run.
During the initialisation run, the Multilifts are moved to the lowest position at half speed and not
synchronously. A relay click sounds once at the lowest position, then the drives are extended to the
"bottom software end position" synchronously. The system is initialised and can be used.
4. Resetting the controller to the factory settings
When changing the drive or system configuration (e.g., cascading several controllers), it is necessary to reset
to the factory settings:
For this purpose, press the buttons 1, 2 and the Up button simultaneously. Keep this button combination
pressed for approx. 3 seconds. On the display, S and a number, e.g, S 5, are shown. Keep pressing the Up or
Down button until S 0 is shown on the display. Now press the S button. The controller clicks twice and the 000
indicator flashes on the display. The controller is now in the commissioning status. Now perform the
initialisation run (see section 3).
Compact-e-3-EU for Multilift II and
Multilift Teleskop
HSU-MDF-4M22
(Six buttons membrane
key memory)
1
2
3
TOUCHbasic UD
(Two buttons TOUCH)
Bestell-Nr. 99425 Ausgabe 11.2014 Version 1-0
TOUCH UD
(Six buttons memory TOUCH retractable)
