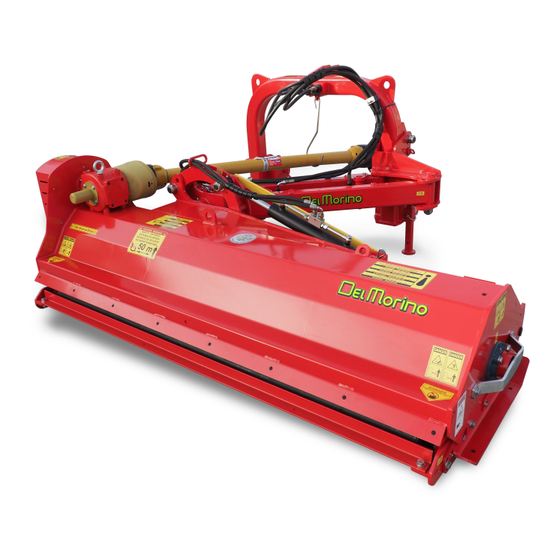

- Page 1 Del Morino srl , v. Caroni di Sotto 19, I-52033 Caprese Michelangelo AR Italy Ph: +39-575-791059 Fax: +39-575-791210 E. mail: export@del-morino.it http://www.del-morino.it USE AND MAINTENANCE MANUAL FLAIL MOWER MODEL LEVANTE SUPER LevanteSuper-e-01 Use and maintenance manual: Levante Super...
- Page 2 PREFACE This manual is an integral part of the machine It must always accompany the machine and be kept within reach of the operator. The mentioned attachments are an integral part of this manual. Purpose of the manual This manual provides the information necessary for the proper and safe use of the machine. The user must read the manual carefully before each use.
-
Page 3: Performance Limits
DESCRIPTION IELD OF USE The hydraulic adjustment system allows the machine to perform several functions, such us cutting grass, stalks, prunings and edges. The use of a technical constructive concept aimed at reaching high performances, reliability and durability improves the efficiency in terms of power/tractor consumption ratio, thanks to the rigidity of the machine frame, to the shape of the tools, to the perfect dynamic balancing of the rotor and to many others original technical solutions. -
Page 4: Technical Features
TECHNICAL FEATURES EATURES PER MODEL Model Type Vers. Power Working Weight N° N° RPM width tools Rotor N° Inch Lbs. 2250 80-120 44-88 1364 LEVANTE 2250 80-120 44-88 1445 SUPER 2250 80-120 44-88 1526 2250 80-120 44-88 1364 LEVANTE 2250 80-120 44-88 1445... -
Page 5: Safety Information
SAFETY INFORMATION ENERAL REQUIREMENTS Work only during daytime. To prevent damage due to the launch of objects or parts of blades, before starting to work, be sure that no persons or animals are within a radius of 50 meters from the machine. Wear long trousers and heavy shoes. - Page 6 SAFETY SIGNALS ON THE MACHINE In this section, the safety signs of the machine are reproduced and explained. 1. Read the manual. 2. Unplug the key from the control panel of the tractor before performing maintenance or repairs. 3. Do not remove the protections. 4.
- Page 7 CHECK THE LENGTH OF THE CARDAN SHAFT 1. After connecting the machine to the 3-point hitch, verify that the tool is in level and centered in relation to the tractor through the adjusting devices. 2. Fit the cardan shaft between the PTO of the tractor and the flail mower. 3.
- Page 8 HOW TO SHORTEN THE CARDAN SHAFT Picture 1 1. Through the hydraulic lift, bring the machine at the minimum distance from the tractor. 2. In this position, block the lift and turn off the engine. 3. Pull out the two parts of the cardan shaft completely. 4.
-
Page 9: First Start
INSTRUCTIONS FOR USE IRST START Unpack the machine and place it on a flat and hard surface. Put the machine next to the rear side of the tractor. ATTENTION: the machine must be connected to an agricultural tractor with power between 80 and 120 HP, with 4 hydraulic connections on the back. -
Page 10: Before Starting To Work
According to the needs of the customer, it is possible to adjust the speed of the hydraulic cylinder of both the side-shifting and rotating system, with the regulator mounted on the connection between the hydraulic tube and the bottom plate of each cylinder. After eliminating the air from the hydraulic system, rotate the machine upwards and downwards. - Page 11 OVING AROUND THE WORKING AREA c) After attaching the machine to the tractor, set it up for transportation as follows: 1. Rotate the machine to the vertical position and shift it towards the center of the tractor. 2. Position the rotation blocking pin "A" as shown in the picture then block it with the safety pin. 3.
- Page 12 TART WORKING d) Set up the machine as follows: 1. Remove the rotation blocking pin "A", position it as shown in the picture then block it with the safety pin. 2. Remove the side-shift blocking pin "B", position it in the corresponding support "B1", then block it with the safety pin.
-
Page 13: A T The End Of The Work
T THE END OF THE WORK a) Stop the tractor and wait for at least 30 seconds until the rotor is completely stopped. b) Lift the machine from the ground. c) Disconnect the PTO. d) Disconnect the cardan shaft from the PTO of the tractor. e) Lift the machine completely. - Page 14 MAINTENANCE INSTRUCTIONS Maintenance operations and their corresponding deadlines are listed in the sheet "A". The noncompliance of the scheduled deadlines compromises the proper functioning of the machine, thus voiding the guarantee. HEET "A" SCHEDULED MAINTENANCE END OF FIRST EVERY EVERY END OF BEGINNING AFTER 10 H...
- Page 15 REASING Grease the 18 points from "A" to "U" as indicated in the sheet "A". Greasing points are equipped with a hydraulic greaser model "A" UNI 7663. Use only multifunctional lithium-based oil type NLGI 2. List of greasers: "A": right support of the roller n. 1 "B": right support of the rotor n.
-
Page 16: Oil Level - Oil Change
IL LEVEL - OIL CHANGE Check the oil level in the gear box or replace it as indicated in sheet "A". To top up the oil, use only SAE 90 OIL. Capacity gearbox: 1,5 l. a) To check the oil level in the gear box, proceed as follows: 1. -
Page 17: Tools Replacement
OOLS REPLACEMENT a) To replace the tools, proceed as follows: 1. Unscrew the nut and remove the fixing screw "B". 2. Remove the tools "A" with the corresponding bushes. 3. If the machines is equipped with hammers, there are no bushes. 4. -
Page 18: Troubleshooting
b) To replace the transmission belts, proceed as follows: 1. Remove the protection "A" unscrewing the 4 screws "B". 2. Remove the carter "C" unscrewing the 7 screws "D". 3. Unscrew the locknut "F", loosen the 2 nuts "E" and unscrew completely the adjustment screw "G". 4. -
Page 19: Warranty
TRANSPORTATION Outside its normal field of use, the machine must be moved with the transmission disconnected. <Important>: Proceed at moderate speed avoiding holes and rough grounds. <Note>: On the road, abide by the traffic laws. On the rear side of the machine, exhibit signs indicating the contour of the machine. -
Page 20: Work And Maintenance Sheet
WORK AND MAINTENANCE SHEET Every user should register the facts about the life of the machine (both work and maintenance) on this sheet, to attest its conditions. DATE HOURS OF MAINTENANCE NOTES OPERATOR WORK... - Page 21 SPARTS AND ACCESSORIES...
- Page 22 SHEETS...
- Page 23 MECHANISMS...
-
Page 24: Point Hitch
3-POINT HITCH... -
Page 25: Hydraulic System
HYDRAULIC SYSTEM... - Page 26 GENERAL INDEX PREFACE ................................2 DESCRIPTION ................................ 3 FIELD OF USE ..............................3 PERFORMANCE ..............................3 PERFORMANCE LIMITS ............................. 3 STANDARD EQUIPMENT ........................... 3 VARIATIONS & OPTIONS ........................... 3 TECHNICAL FEATURES ............................4 SAFETY INFORMATION ............................5 GENERAL REQUIREMENTS ..........................5 RESTRICTIONS OF USE FOR SAFETY ......................
