MANUAL OF USE AND MAINTENANCE

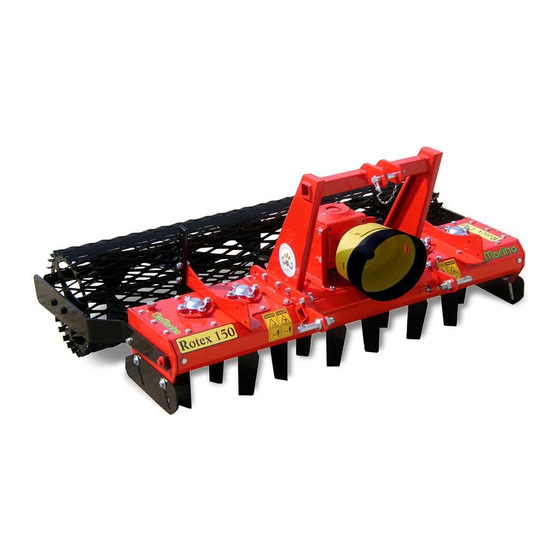

ROTARY HARROW ROTEX
Rotex-e-06 Manual of use and maintenance : Rotex

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotex 90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Del Morino Rotex 90

Summary of Contents for Del Morino Rotex 90

  • Page 1 Del Morino srl , v.Caroni di Sotto 19, I-52033 Caprese Michelangelo AR Italy Ph: +39-575-791059 Fax: +39-575-791210 E.mail: export@del-morino.it http://www.del-morino.it MANUAL OF USE AND MAINTENANCE ROTARY HARROW ROTEX Rotex-e-06 Manual of use and maintenance : Rotex...
  • Page 2 PREFACE This manual is an integral part of the machine. It must always accompany the machine and be kept within reach of the operator. The enclosures mentioned are on integral part of this manual. The purpose of this manual. This manual gives information for the correct and safe use of the machine. The owner must read this manual carefully before work with the machine.
  • Page 3 DESCRIPTION FUNCTION OF USE The machine, thanks to the large range of types models and versions all configurable through many available variants according to specific requirement, carries out all the function related with tools rotation in various work environment (open field, vineyards, orchards, flower gardens, parks, vegetable gardens), in all type of ground whatever its composition (sandy soil, medium mixture, clay) and consistency (crumbly, hard, semi- plastic) may be.

  • Page 4: Techinical Specifications

    TECHINICAL SPECIFICATIONS CHARACTERISTICS FOR MODEL Model Type Power Working width Weight Maximum working Total width N° of tools depth inch lbs. inch inch n° n° rotors teeth 18-35 13-26 198 455 37,5 20-40 15-30 211 465 45,3 25-45 18-33 226 498 53,1 30-50 22-38...

  • Page 5: Safety Information

    SAFETY INFORMATION ENERAL REGULATIONS  Only work in daylight.  To prevent damage due to lunch of objects or parts of blades, before to start job be sure that any persons or animals should be in the radius of 50 meters from the machine. ...

  • Page 6: Safety Signs On The Machine

    SAFETY SIGNS ON THE MACHINE In this section, the safety signs on the machine are reproduced and explained. 1. Read the operator manual. 2. Disconnect the tractor key before maintenance and repair operations. 3. Stay at safety distance from blades when machine is moving. 1.

  • Page 7: Before Beginning Work

    INSTRUCTIONS FOR USE EFORE BEGINNING WORK a) Connect the machine to the tractor as follows : 1. Insert the lifting arms of the tractor in the lower attachment points of the machine, lock by safety pin. 2. Connect the tractor linkage to the 3° point hitch of the machine (triangle vertex), insert the pin and lock with safety pin.

  • Page 8: Seeder Set Up

    SEEDER EEDER SET UP To empty the hopper, move lever “4” from position “C” to position “A”. After discharge of all seed move again lever “4” to position “C”. Fill the hopper with seed, now it is necessary to make set up of the machine considering how many Kg of seed you want to sow each hectare.
  • Page 9 To verify weight in Kg that will be sow (generally the weight in Kg per hectare related to each type of seed is showed on technical sheet of the seed) operate as follow: Picture 1 Picture 2 Model Wheel turns Factor K Lift the seeder till the two wheels “W”...
  • Page 10 MAINTENANCE INSTRUCTIONS On diagram "A" the maintenances are indicated with their terms to effect on the machine. Not follow the scheduled terms can compromise the functionality of the machine and in this case the warranty is not applicable. IAGRAM "A" SCHEDULED MAINTENANCE AFTER FIRST EVERY...

  • Page 11: Oil Level - Oil Replacement In Gearbox

    At the scheduled time on diagram “A” verify the level and replace oil in the gearbox. To fill oil use only OIL SAE 140 EP. Gearbox capacity: 1,1 L (Rotex 90-110-130-150), 2,5 L (Rotex 170-190-230-250). a) To check the oil level in gear box, operate as follows : 1.

  • Page 12: Tools Replacement

    c) To check the oil in the transmission, operate as follows: 1. With the machine on level unscrew the plug "B" and check that oil touches lower hole rim. 2. If the level is ok, lock the plug "B". 3. If the level is low, fill oil. 4.

  • Page 13: Problems Solving

    PROBLEMS SOLVING TROUBLES CAUSES AND SOLUTIONS -Decrease the forwarding speed Insufficient working depth -Tools are not sharpened or damaged -Broken or damaged tools -Check the tools assembling Tools don’t penetrate -Foreign objects between hoes - clean Rotary harrow bounces on the round and vibrates -Decrease the forwarding speed -Soil too dry and hard -Soil too wet...

  • Page 14: Information On Demolition

    TRANSPORT Except when working, moving the machine takes place when the machine is standing still and the transmission is disconnected. <Important>: keep speed low avoiding holes and ground roughness. <Note> when on the road, obey existing traffic laws. Exhibit the signal signs on the rear ends. Respect any local laws there may be.

  • Page 15: Work And Maintenance Sheet

    WORK AND MAINTENANCE SHEET Every user should register on this sheet the facts about the life of the machine (both work and maintenance), so as to attest its conditions. DATE WORKING MAITENANCE NOTE USER HOURS...

  • Page 16: Spare Part And Accessories

    SPARE PART AND ACCESSORIES...
  • Page 17 ROTEX MECHANISMS 90-110-130-150...
  • Page 18 ROTEX MECHANISMS 170-190...
  • Page 19 ROTEX MECHANISMS 230-250...
  • Page 20 ROTEX SHEET 90-110-130-150...
  • Page 21 ROTEX SHEETS 170-190...
  • Page 22 ROTEX SHEETS 230-250...
  • Page 23 LEVELLING BLADE ROTEX 90-110-130 LEVELLING BLADE ROTEX 150 LEVELLING BLADE ROTEX 170-190-230-250...

  • Page 24: Rotex Wire Roller

    ROTEX ROLLER LIFTING 110-130-150-170-190-230-250 ROTEX WIRE ROLLER...

  • Page 25: Rotex Cage Roller

    ROTEX CAGE ROLLER ROTEX SPIKED ROLLER...

  • Page 26: Seeder Holder

    SEEDER HOLDER...

  • Page 27: Spare Parts List Rotex

    SPARE PARTS LIST ROTEX Quantity Code Description 42000002 GEARBOX 42000027 GEARBOX 42400008 UCFC 206 SUPPORT 42400009 UCFC 208 SUPPORT 42400010 UCFC 209 SUPPORT 41000038 BEARING 6307 41000039 BEARING 6208 41100013 OIL SEAL 80x45x10 41100014 OIL SEAL 80x55x10 41200008 ORING 330 ERP165D SEAL ERP449D...
  • Page 28 Quantity Code Description ERP052DVD COVER 150 ERP052EVD COVER 170 ERP052FVD COVER 190 ERP052GVD COVER 230 ERP052HVD COVER 250 ERP436VD LEFT TAIL BOARD ERP417VD RIGHT TAIL BOARD ERP056VD SUPPORT ERP322VD LOWER HITCH ERP055VD GEARBOX SUPPORT ERP341VD GEARBOX COVER ERP053VD III POINT HITCH ERP054VD III POINT HITCH ERP057AVD...
  • Page 29 Quantity Code Description ERP333VD BLADE ARM HOLDFAST ERP363VD BLADE LEFT SUPPORT ERP465VD BLADE LEFT SUPPORT ERP364VD BLADE RIGHT SUPPORT ERP466VD BLADE RIGHT SUPPORT ERP061VD BLADE ARM HITCH ERP442VD REAR TIR ROD HITCH ERP086VD LEFT TIE ROD FRONT HITCH ERP074VD LEFT TIE ROD FRONT HITCH ERP087VD RIGHT TIE ROD FRONT HITCH ERP075VD...
  • Page 30 Quantity Code Description ERP434CVD SCRAPERS BEAM 130 ERP434DVD SCRAPERS BEAM 150 ERP434EVD SCRAPERS BEAM 170 ERP434FVD SCRAPERS BEAM 190 ERP434GVD SCRAPERS BEAM 230 ERP434HVD SCRAPERS BEAM 250 ERP431ZD SCRAPER HOL214D ROLL STOPPER 40100197 SCREW M10x45 UNI5739 40300003 WASHER Ø10 UNI 6592 40100102 SCREW M12x50 UNI 5737 40300004...
  • Page 31 Quantity Code Description ERP460VD REAR LEFT TIE ROD HITCH WIRE ROLER INT060BVD SEEDER FRAME INT060CVD SEEDER FRAME INT060DVD SEEDER FRAME INT060EVD SEEDER FRAME ERP091BVD FRAME 110 ERP091CVD FRAME 130 ERP091DVD FRAME 150 ERP091EVD FRAME 170 ERP091FVD FRAME 190 ERP091GVD FRAME 230 ERP091HVD FRAME 250 ERP090BVD...

  • Page 32: Seeder Frame

    SEEDER FRAME...

  • Page 33: Seeder Mechanism

    SEEDER MECHANISM...
  • Page 34 INDEX PREFACE ................................2 DESCRIPTION ..............................3 FUNCTION OF USE ............................3 PERFORMANCES ............................3 PERFORMANCE LIMITS ..........................3 STANDARD ............................3 FEATURES VARIANT & ACCESSORI ..........................3 TECHINICAL SPECIFICATIONS ........................4 SAFETY INFORMATION ...........................5 GENERAL REGULATIONS ..........................5 SAFETY RESTRICTIONS ..........................5 SAFETY SIGNS ON THE MACHINE .........................6 INSTRUCTIONS FOR USE ..........................7 BEFORE BEGINNING WORK ........................7 BEGINNING WORK ............................7 AT THE END OF WORK ..........................7...
  • Page 35 ROTEX SHEETS 230-250 ..........................22 LEVELLING BLADE ROTEX 90-110-130 .......................23 LEVELLING BLADE ROTEX 150 ........................23 LEVELLING BLADE ROTEX 170-190-230-250 ....................23 ROTEX ROLLER LIFTING 110-130-150-170-190-230-250 ................24 ROTEX WIRE ROLLER ...........................24 ROTEX CAGE ROLLER ..........................25 ROTEX SPIKED ROLLER ..........................25 SEEDER HOLDER ............................26 SPARE PARTS LIST ROTEX ..........................27 SEEDER FRAME .............................32...

This manual is also suitable for:

Rotex 150Rotex 110Rotex 130Rotex 170Rotex 190Rotex 230 ... Show all

Table of Contents
