MANUAL OF USE AND MAINTENANCE

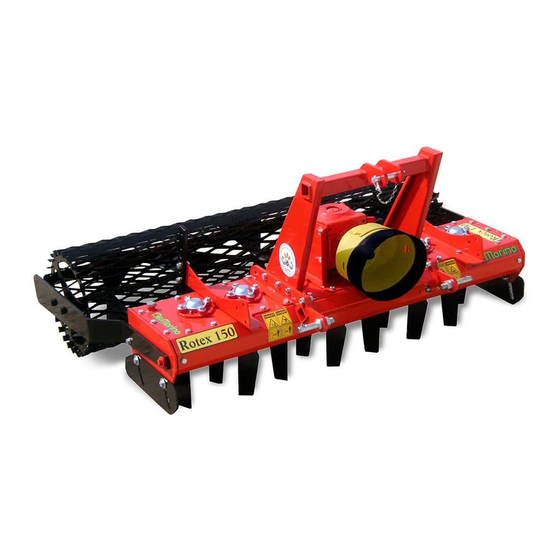

ROTARY HARROW ROTEX
Rotex-e-06 Manual of use and maintenance : Rotex

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROTEX 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Del Morino ROTEX 90

Summary of Contents for Del Morino ROTEX 90

  • Page 1 All manuals and user guides at all-guides.com Del Morino srl , v.Caroni di Sotto 19, I-52033 Caprese Michelangelo AR Italy Ph: +39-575-791059 Fax: +39-575-791210 E.mail: export@del-morino.it http://www.del-morino.it MANUAL OF USE AND MAINTENANCE ROTARY HARROW ROTEX Rotex-e-06 Manual of use and maintenance : Rotex...
  • Page 2 All manuals and user guides at all-guides.com PREFACE This manual is an integral part of the machine. It must always accompany the machine and be kept within reach of the operator. The enclosures mentioned are on integral part of this manual. The purpose of this manual.
  • Page 3 All manuals and user guides at all-guides.com DESCRIPTION FUNCTION OF USE The machine, thanks to the large range of types models and versions all configurable through many available variants according to specific requirement, carries out all the function related with tools rotation in various work environment (open field, vineyards, orchards, flower gardens, parks, vegetable gardens), in all type of ground whatever its composition (sandy soil, medium mixture, clay) and consistency (crumbly, hard, semi- plastic) may be.

  • Page 4: Techinical Specifications

    All manuals and user guides at all-guides.com TECHINICAL SPECIFICATIONS CHARACTERISTICS FOR MODEL Model Type Power Working width Weight Maximum working Total width N° of tools depth inch lbs. inch inch n° n° rotors teeth 18-35 13-26 198 455 37,5 20-40 15-30 211 465 45,3...

  • Page 5: Safety Information

    All manuals and user guides at all-guides.com SAFETY INFORMATION ENERAL REGULATIONS  Only work in daylight.  To prevent damage due to lunch of objects or parts of blades, before to start job be sure that any persons or animals should be in the radius of 50 meters from the machine. ...

  • Page 6: Safety Signs On The Machine

    All manuals and user guides at all-guides.com SAFETY SIGNS ON THE MACHINE In this section, the safety signs on the machine are reproduced and explained. 1. Read the operator manual. 2. Disconnect the tractor key before maintenance and repair operations. 3.

  • Page 7: Before Beginning Work

    All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE EFORE BEGINNING WORK a) Connect the machine to the tractor as follows : 1. Insert the lifting arms of the tractor in the lower attachment points of the machine, lock by safety pin. 2.

  • Page 8: Seeder Set Up

    All manuals and user guides at all-guides.com SEEDER EEDER SET UP To empty the hopper, move lever “4” from position “C” to position “A”. After discharge of all seed move again lever “4” to position “C”. Fill the hopper with seed, now it is necessary to make set up of the machine considering how many Kg of seed you want to sow each hectare.
  • Page 9 All manuals and user guides at all-guides.com To verify weight in Kg that will be sow (generally the weight in Kg per hectare related to each type of seed is showed on technical sheet of the seed) operate as follow: Picture 1 Picture 2 Model...
  • Page 10 All manuals and user guides at all-guides.com MAINTENANCE INSTRUCTIONS On diagram "A" the maintenances are indicated with their terms to effect on the machine. Not follow the scheduled terms can compromise the functionality of the machine and in this case the warranty is not applicable.

  • Page 11: Oil Level - Oil Replacement In Gearbox

    At the scheduled time on diagram “A” verify the level and replace oil in the gearbox. To fill oil use only OIL SAE 140 EP. Gearbox capacity: 1,1 L (Rotex 90-110-130-150), 2,5 L (Rotex 170-190-230-250). a) To check the oil level in gear box, operate as follows : 1.

  • Page 12: Tools Replacement

    All manuals and user guides at all-guides.com c) To check the oil in the transmission, operate as follows: 1. With the machine on level unscrew the plug "B" and check that oil touches lower hole rim. 2. If the level is ok, lock the plug "B". 3.

  • Page 13: Problems Solving

    All manuals and user guides at all-guides.com PROBLEMS SOLVING TROUBLES CAUSES AND SOLUTIONS -Decrease the forwarding speed Insufficient working depth -Tools are not sharpened or damaged -Broken or damaged tools -Check the tools assembling Tools don’t penetrate -Foreign objects between hoes - clean Rotary harrow bounces on the round and vibrates -Decrease the forwarding speed -Soil too dry and hard...

  • Page 14: Information On Demolition

    All manuals and user guides at all-guides.com TRANSPORT Except when working, moving the machine takes place when the machine is standing still and the transmission is disconnected. <Important>: keep speed low avoiding holes and ground roughness. <Note> when on the road, obey existing traffic laws. Exhibit the signal signs on the rear ends. Respect any local laws there may be.
  • Page 15 All manuals and user guides at all-guides.com WORK AND MAINTENANCE SHEET Every user should register on this sheet the facts about the life of the machine (both work and maintenance), so as to attest its conditions. DATE WORKING MAITENANCE NOTE USER HOURS...

  • Page 16: Spare Part And Accessories

    All manuals and user guides at all-guides.com SPARE PART AND ACCESSORIES...
  • Page 17 All manuals and user guides at all-guides.com ROTEX MECHANISMS 90-110-130-150...
  • Page 18 All manuals and user guides at all-guides.com ROTEX MECHANISMS 170-190...
  • Page 19 All manuals and user guides at all-guides.com ROTEX MECHANISMS 230-250...
  • Page 20 All manuals and user guides at all-guides.com ROTEX SHEET 90-110-130-150...
  • Page 21 All manuals and user guides at all-guides.com ROTEX SHEETS 170-190...
  • Page 22 All manuals and user guides at all-guides.com ROTEX SHEETS 230-250...
  • Page 23 All manuals and user guides at all-guides.com LEVELLING BLADE ROTEX 90-110-130 LEVELLING BLADE ROTEX 150 LEVELLING BLADE ROTEX 170-190-230-250...

  • Page 24: Rotex Wire Roller

    All manuals and user guides at all-guides.com ROTEX ROLLER LIFTING 110-130-150-170-190-230-250 ROTEX WIRE ROLLER...

  • Page 25: Rotex Cage Roller

    All manuals and user guides at all-guides.com ROTEX CAGE ROLLER ROTEX SPIKED ROLLER...

  • Page 26: Seeder Holder

    All manuals and user guides at all-guides.com SEEDER HOLDER...

  • Page 27: Spare Parts List Rotex

    All manuals and user guides at all-guides.com SPARE PARTS LIST ROTEX Quantity Code Description 42000002 GEARBOX 42000027 GEARBOX 42400008 UCFC 206 SUPPORT 42400009 UCFC 208 SUPPORT 42400010 UCFC 209 SUPPORT 41000038 BEARING 6307 41000039 BEARING 6208 41100013 OIL SEAL 80x45x10 41100014 OIL SEAL 80x55x10 41200008...
  • Page 28 All manuals and user guides at all-guides.com Quantity Code Description ERP052DVD COVER 150 ERP052EVD COVER 170 ERP052FVD COVER 190 ERP052GVD COVER 230 ERP052HVD COVER 250 ERP436VD LEFT TAIL BOARD ERP417VD RIGHT TAIL BOARD ERP056VD SUPPORT ERP322VD LOWER HITCH ERP055VD GEARBOX SUPPORT ERP341VD GEARBOX COVER ERP053VD...
  • Page 29 All manuals and user guides at all-guides.com Quantity Code Description ERP333VD BLADE ARM HOLDFAST ERP363VD BLADE LEFT SUPPORT ERP465VD BLADE LEFT SUPPORT ERP364VD BLADE RIGHT SUPPORT ERP466VD BLADE RIGHT SUPPORT ERP061VD BLADE ARM HITCH ERP442VD REAR TIR ROD HITCH ERP086VD LEFT TIE ROD FRONT HITCH ERP074VD LEFT TIE ROD FRONT HITCH...
  • Page 30 All manuals and user guides at all-guides.com Quantity Code Description ERP434CVD SCRAPERS BEAM 130 ERP434DVD SCRAPERS BEAM 150 ERP434EVD SCRAPERS BEAM 170 ERP434FVD SCRAPERS BEAM 190 ERP434GVD SCRAPERS BEAM 230 ERP434HVD SCRAPERS BEAM 250 ERP431ZD SCRAPER HOL214D ROLL STOPPER 40100197 SCREW M10x45 UNI5739 40300003 WASHER Ø10 UNI 6592...
  • Page 31 All manuals and user guides at all-guides.com Quantity Code Description ERP460VD REAR LEFT TIE ROD HITCH WIRE ROLER INT060BVD SEEDER FRAME INT060CVD SEEDER FRAME INT060DVD SEEDER FRAME INT060EVD SEEDER FRAME ERP091BVD FRAME 110 ERP091CVD FRAME 130 ERP091DVD FRAME 150 ERP091EVD FRAME 170 ERP091FVD FRAME 190...

  • Page 32: Seeder Frame

    All manuals and user guides at all-guides.com SEEDER FRAME...

  • Page 33: Seeder Mechanism

    All manuals and user guides at all-guides.com SEEDER MECHANISM...
  • Page 34 All manuals and user guides at all-guides.com INDEX PREFACE ................................2 DESCRIPTION ..............................3 FUNCTION OF USE ............................3 PERFORMANCES ............................3 PERFORMANCE LIMITS ..........................3 STANDARD ............................3 FEATURES VARIANT & ACCESSORI ..........................3 TECHINICAL SPECIFICATIONS ........................4 SAFETY INFORMATION ...........................5 GENERAL REGULATIONS ..........................5 SAFETY RESTRICTIONS ..........................5 SAFETY SIGNS ON THE MACHINE .........................6 INSTRUCTIONS FOR USE ..........................7 BEFORE BEGINNING WORK ........................7...
  • Page 35 All manuals and user guides at all-guides.com ROTEX SHEETS 230-250 ..........................22 LEVELLING BLADE ROTEX 90-110-130 .......................23 LEVELLING BLADE ROTEX 150 ........................23 LEVELLING BLADE ROTEX 170-190-230-250 ....................23 ROTEX ROLLER LIFTING 110-130-150-170-190-230-250 ................24 ROTEX WIRE ROLLER ...........................24 ROTEX CAGE ROLLER ..........................25 ROTEX SPIKED ROLLER ..........................25 SEEDER HOLDER ............................26...
