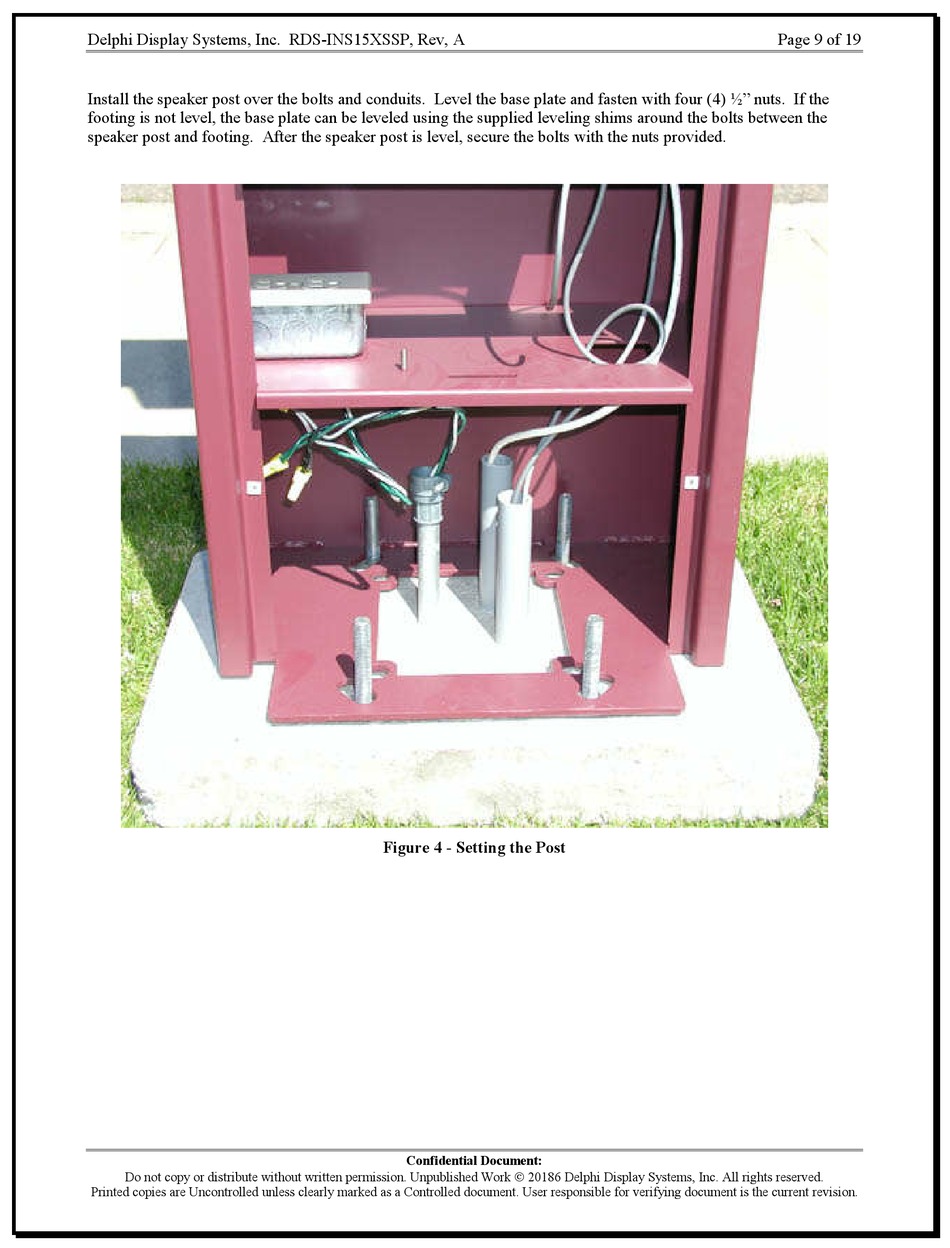

Install the speaker post over the bolts and conduits. Level the base plate and fasten with four (4) ½" nuts. If the
footing is not level, the base plate can be leveled using the supplied leveling shims around the bolts between the
speaker post and footing. After the speaker post is level, secure the bolts with the nuts provided.

Figure 4 - Setting the Post
