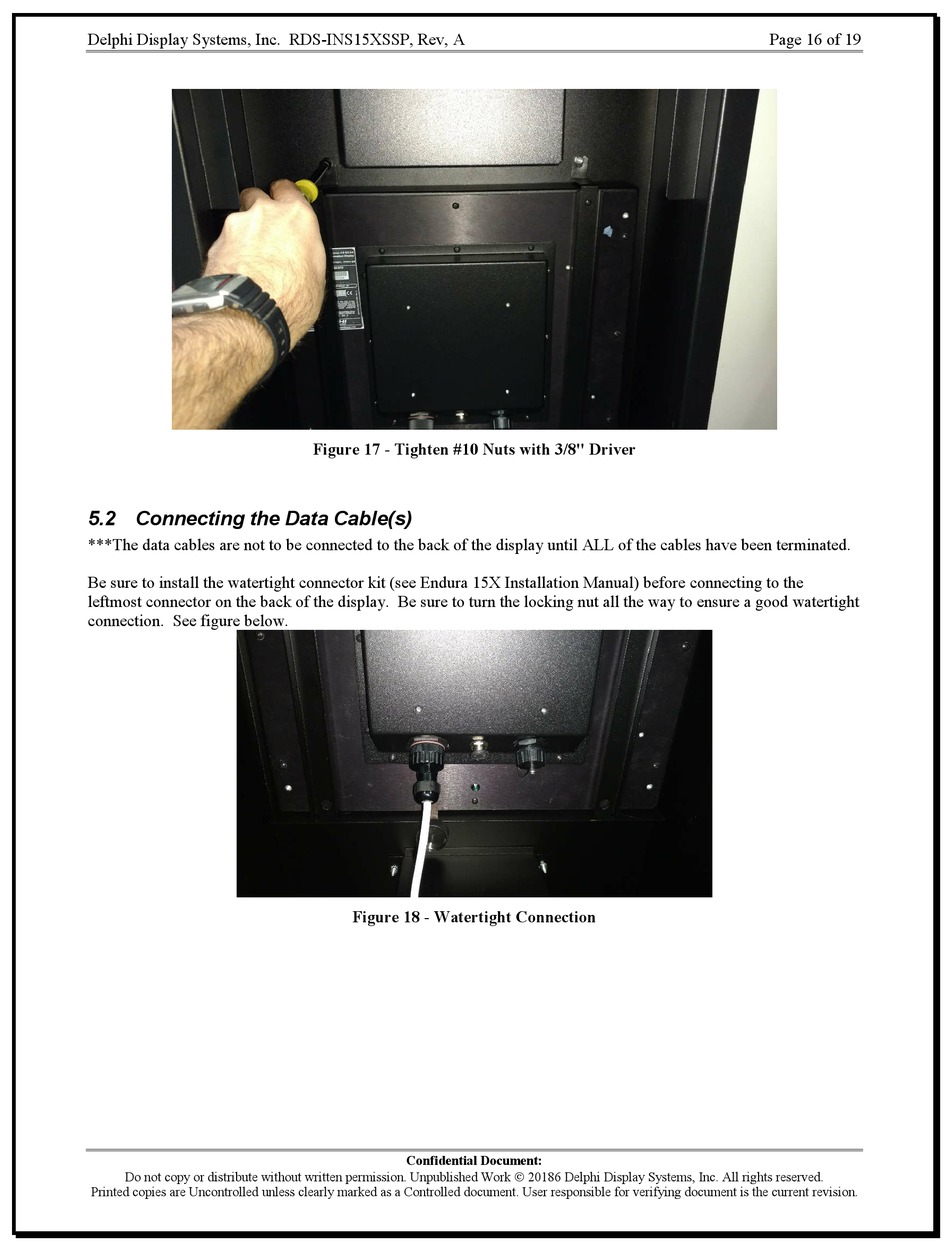

Delphi Display Systems, Inc. RDS-INS15XSSP, Rev, A Page 16 of 19
Figure 17 - Tighten #10 Nuts with 3/8" Driver

5.2 Connecting the Data Cable(s)

***The data cables are not to be connected to the back of the display until ALL of the cables have been terminated.
Be sure to install the watertight connector kit (see Endura 15X Installation Manual) before connecting to the
leftmost connector on the back of the display. Be sure to turn the locking nut all the way to ensure a good watertight
connection. See figure below.

Figure 18 - Watertight Connection
