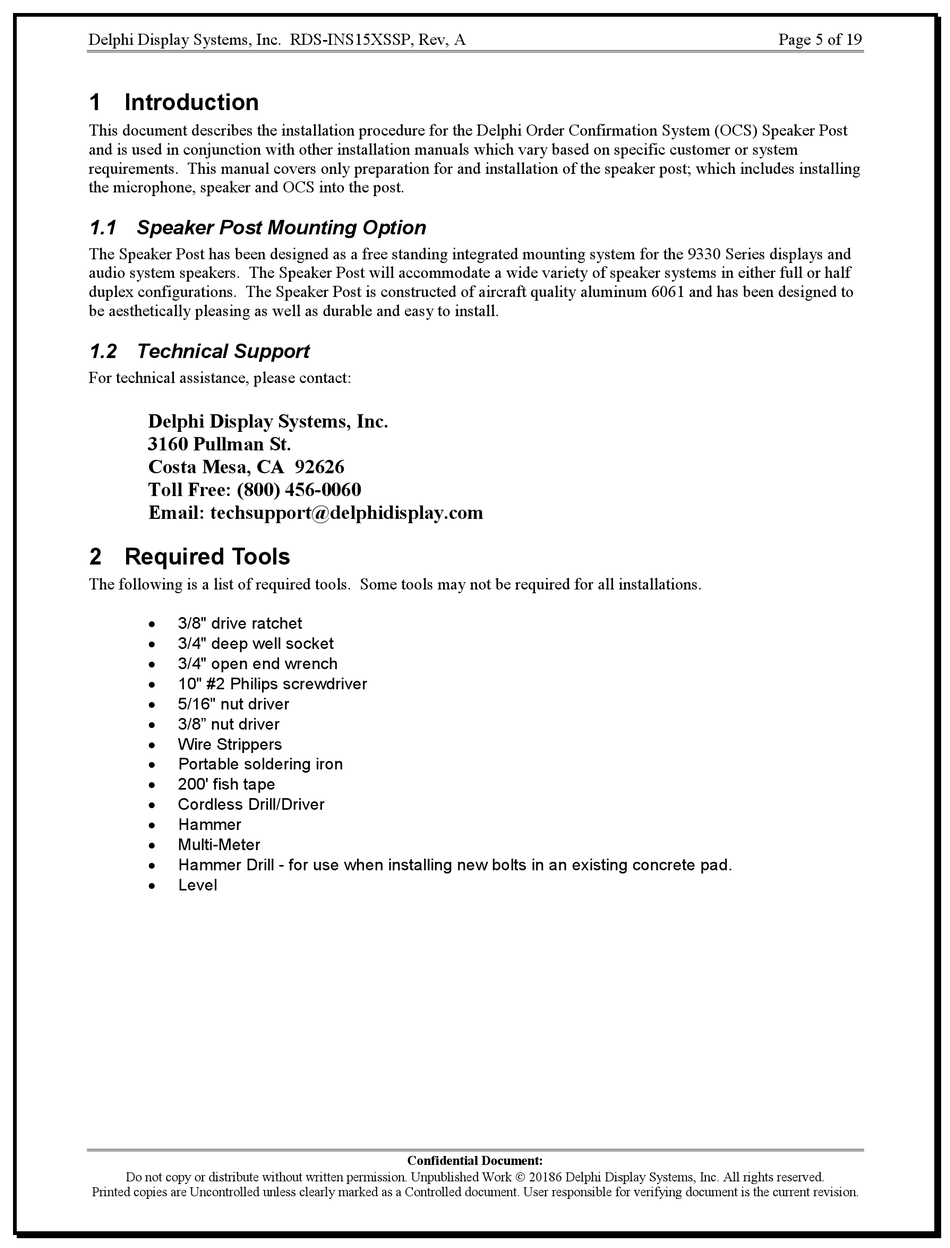

1 Introduction

This document describes the installation procedure for the Delphi Order Confirmation System (OCS) Speaker Post
and is used in conjunction with other installation manuals which vary based on specific customer or system
requirements. This manual covers only preparation for and installation of the speaker post; which includes installing
the microphone, speaker and OCS into the post.

1.1 Speaker Post Mounting Option

The Speaker Post has been designed as a free standing integrated mounting system for the 9330 Series displays and
audio system speakers. The Speaker Post will accommodate a wide variety of speaker systems in either full or half
duplex configurations. The Speaker Post is constructed of aircraft quality aluminum 6061 and has been designed to
be aesthetically pleasing as well as durable and easy to install.

1.2 Technical Support

For technical assistance, please contact:
Delphi Display Systems, Inc.
3160 Pullman St.
Costa Mesa, CA 92626
Toll Free: (800) 456-0060
Email: techsupport@delphidisplay.com

2 Required Tools

The following is a list of required tools. Some tools may not be required for all installations.
 3/8" drive ratchet
 3/4" deep well socket
 3/4" open end wrench
10" #2 Philips screwdriver

5/16" nut driver

3/8" nut driver

Wire Strippers

Portable soldering iron

 200' fish tape
 Cordless Drill/Driver
 Hammer
 Multi-Meter
Hammer Drill - for use when installing new bolts in an existing concrete pad.

Level

