Delphi Display Systems, Inc. RDS-INS15XSSP, Rev, A Page 14 of 19

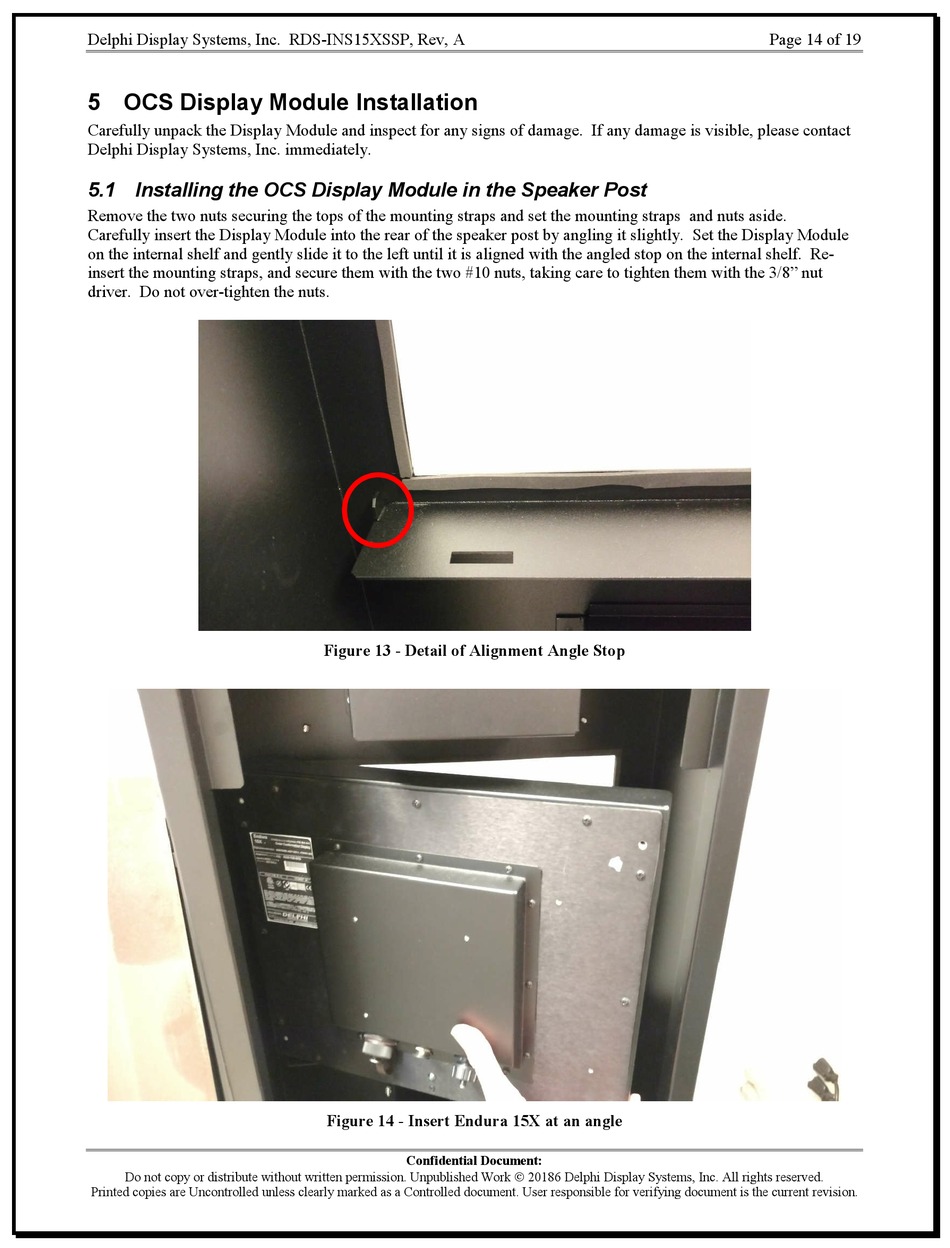

5 OCS Display Module Installation

Carefully unpack the Display Module and inspect for any signs of damage. If any damage is visible, please contact
Delphi Display Systems, Inc. immediately.

5.1 Installing the OCS Display Module in the Speaker Post

Remove the two nuts securing the tops of the mounting straps and set the mounting straps and nuts aside.
Carefully insert the Display Module into the rear of the speaker post by angling it slightly. Set the Display Module
on the internal shelf and gently slide it to the left until it is aligned with the angled stop on the internal shelf. Re-
insert the mounting straps, and secure them with the two #10 nuts, taking care to tighten them with the 3/8" nut
driver. Do not over-tighten the nuts.

Figure 13 - Detail of Alignment Angle Stop

Figure 14 - Insert Endura 15X at an angle
