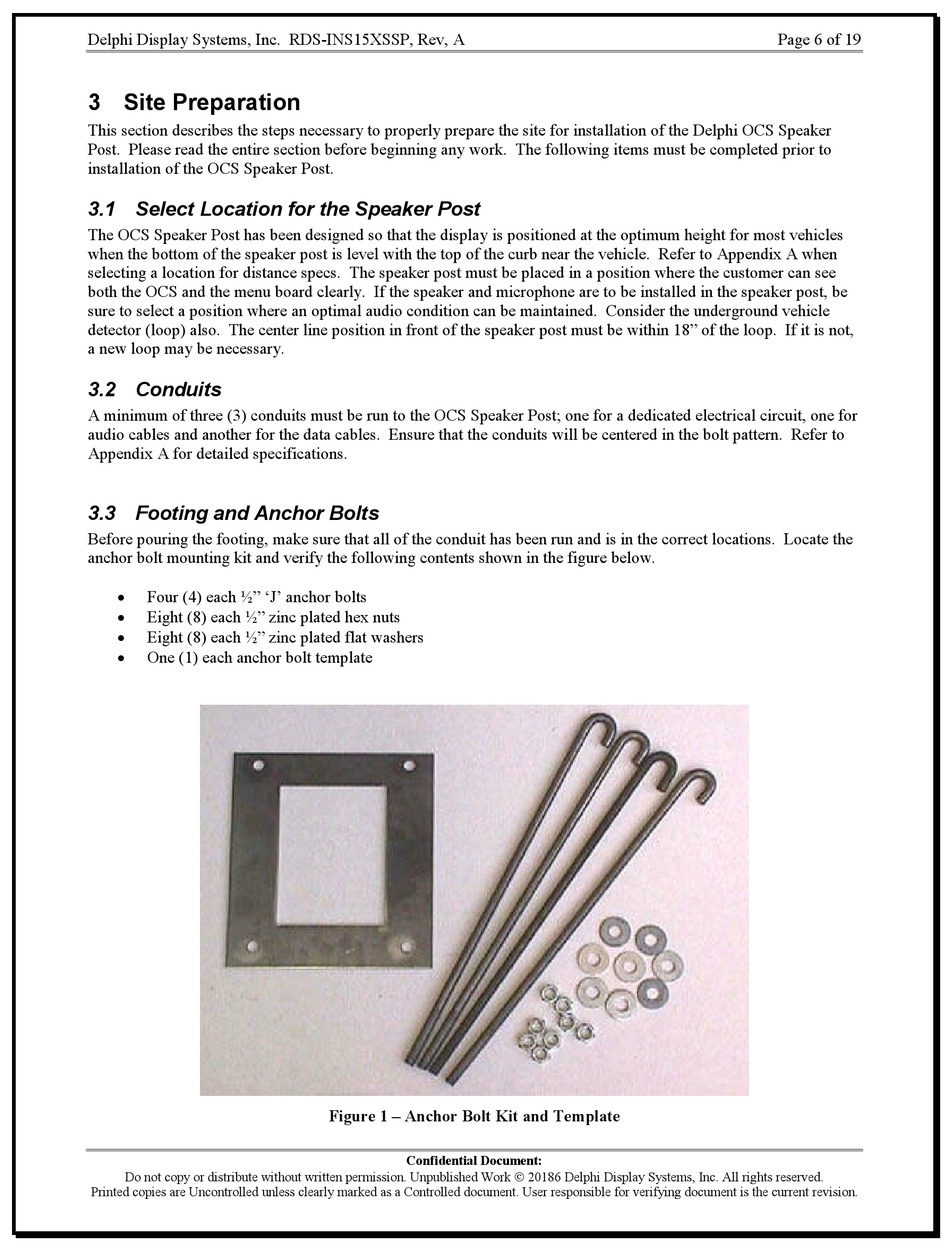

3 Site Preparation

This section describes the steps necessary to properly prepare the site for installation of the Delphi OCS Speaker
Post. Please read the entire section before beginning any work. The following items must be completed prior to
installation of the OCS Speaker Post.

3.1 Select Location for the Speaker Post

The OCS Speaker Post has been designed so that the display is positioned at the optimum height for most vehicles
when the bottom of the speaker post is level with the top of the curb near the vehicle. Refer to Appendix A when
selecting a location for distance specs. The speaker post must be placed in a position where the customer can see
both the OCS and the menu board clearly. If the speaker and microphone are to be installed in the speaker post, be
sure to select a position where an optimal audio condition can be maintained. Consider the underground vehicle
detector (loop) also. The center line position in front of the speaker post must be within 18" of the loop. If it is not,
a new loop may be necessary.

3.2 Conduits

A minimum of three (3) conduits must be run to the OCS Speaker Post; one for a dedicated electrical circuit, one for
audio cables and another for the data cables. Ensure that the conduits will be centered in the bolt pattern. Refer to
Appendix A for detailed specifications.

3.3 Footing and Anchor Bolts

Before pouring the footing, make sure that all of the conduit has been run and is in the correct locations. Locate the
anchor bolt mounting kit and verify the following contents shown in the figure below.
 Four (4) each ½" 'J' anchor bolts
 Eight (8) each ½" zinc plated hex nuts
 Eight (8) each ½" zinc plated flat washers
 One (1) each anchor bolt template
Do not copy or distribute without written permission. Unpublished Work  20186 Delphi Display Systems, Inc. All rights reserved.
Printed copies are Uncontrolled unless clearly marked as a Controlled document. User responsible for verifying document is the current revision.
Figure 1 – Anchor Bolt Kit and Template
