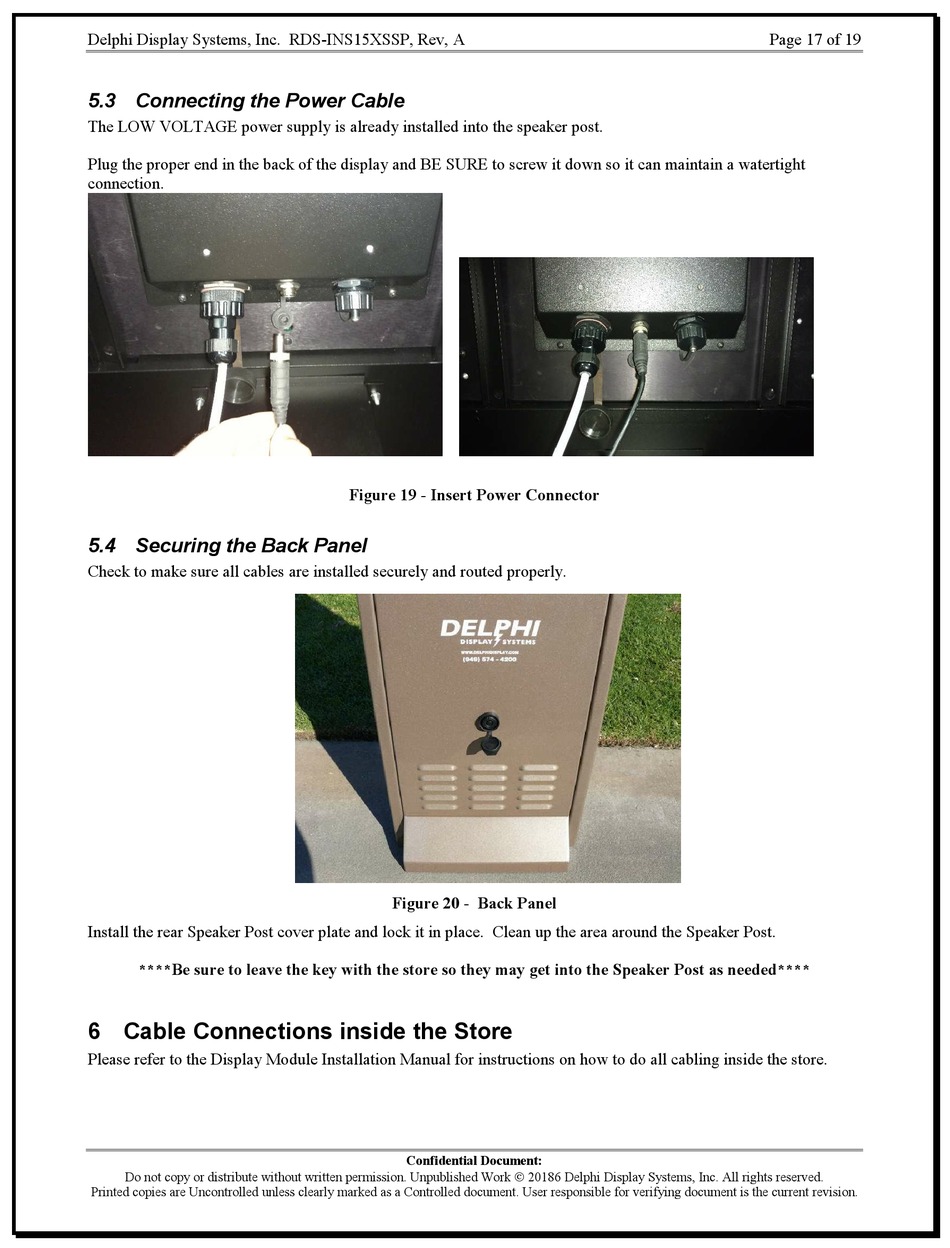

Delphi Display Systems, Inc. RDS-INS15XSSP, Rev, A Page 17 of 19

5.3 Connecting the Power Cable

The LOW VOLTAGE power supply is already installed into the speaker post.
Plug the proper end in the back of the display and BE SURE to screw it down so it can maintain a watertight
connection.

Figure 19 - Insert Power Connector

5.4 Securing the Back Panel

Check to make sure all cables are installed securely and routed properly.

Figure 20 - Back Panel

Install the rear Speaker Post cover plate and lock it in place. Clean up the area around the Speaker Post.
****Be sure to leave the key with the store so they may get into the Speaker Post as needed****

6 Cable Connections inside the Store

Please refer to the Display Module Installation Manual for instructions on how to do all cabling inside the store.
