3.5 Running the Electrical Wiring – New Installation
The OCS Speaker Post must be wired to a dedicated circuit on an isolated ground with the Point of Sale (POS)
system. Pull the electrical wiring in accordance with NEC and local building codes. Terminate the electrical wiring
with a standard single-gang junction box.
3.6 Running the Data and Audio Cables – New Installation
The data cable is provided by Delphi Display Systems and is pre-terminated on the OCS end with a weather proof
connector. Pull the data cable through the appropriate conduit starting at the OCS end. Leave five (5) feet of cable
protruding from the end of the conduit. This will allow enough cable to route up through the speaker post and
connect to the back of the display module. Do not under any circumstances leave any more than 5' of data
cable inside of the speaker post.

4 Mounting the Speaker Post

Remove the back panel of the Speaker Post by using the supplied key to unlock the back panel.
Do not copy or distribute without written permission. Unpublished Work  20186 Delphi Display Systems, Inc. All rights reserved.
Printed copies are Uncontrolled unless clearly marked as a Controlled document. User responsible for verifying document is the current revision.
Lock on back of post.

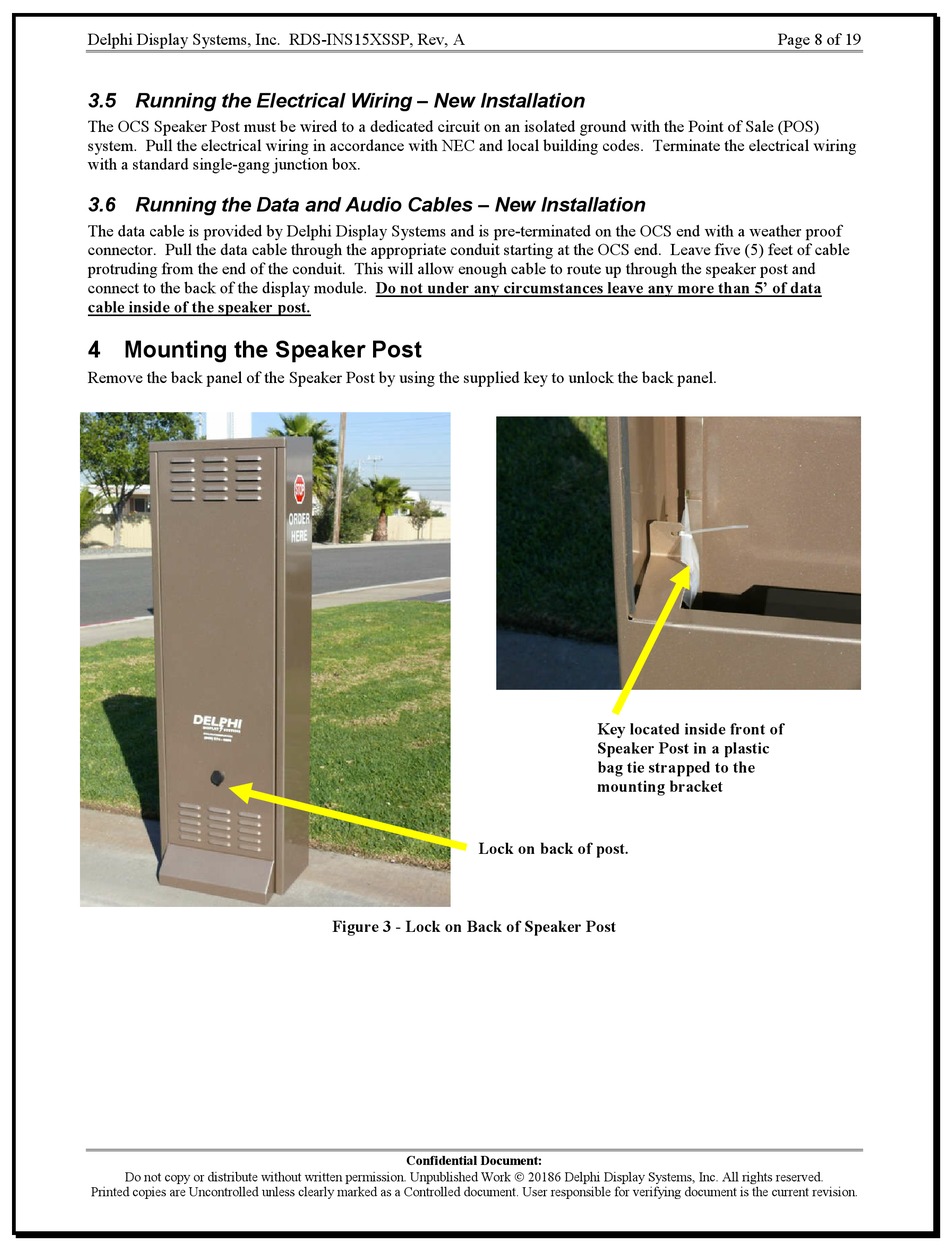

Figure 3 - Lock on Back of Speaker Post

Confidential Document:
Key located inside front of
Speaker Post in a plastic
bag tie strapped to the
mounting bracket
