Summary of Contents for Telstra TG797n V3

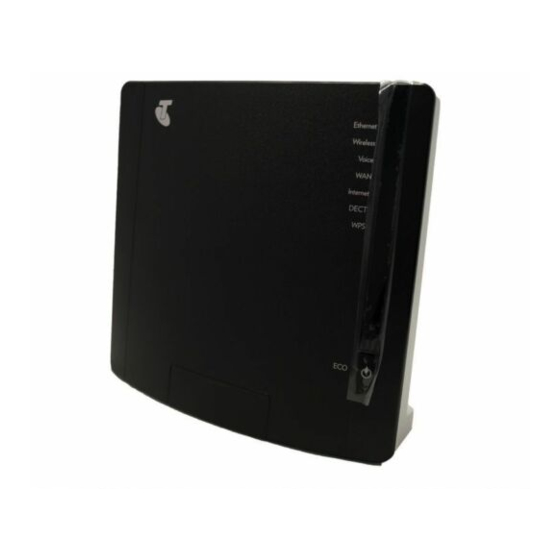

- Page 1 GettinG ConneCted Installation Instructions for your Home Network Gateway (HNG) tG797n • IMPORTANT: BEFORE YOU START Read all safety instructions and notices provided by the manufacturer before commencing installation...
- Page 2 2 GettinG ConneCted GettinG ConneCted 3 This guide is designed to help you get started with your new Home Plug the Power Supply Adaptor into the HNG power inlet port on the back of the HNG, then plug the adaptor into a general purpose power outlet and push the ON/OFF button on the Network Gateway (HNG).
- Page 3 4 GettinG ConneCted GettinG ConneCted 5 Only one type of voice service can operate on the HnG at a time, if you are not Check the status of the LED indicators on the Home Network Gateway sure your service is VoiCe (delivered via the HnG and the UNI-D port of the ntd) (Note: it can take up to 3 minutes after powering the HNG for a connection to be established).
-
Page 4: Additional Information
6 GettinG ConneCted BUTTONS ON THE HNG 7 ADDITIONAL INFORMATION To connect to your BROADBAND access: Connect your computer to the HNG via one of the following methods: ADVANCED SET UP AND CONFIGURATION A. WIRED - Recommended for desktop computers You can access and edit the HNG settings via its confi... - Page 5 8 HNG CONFIGURATIONS HNG CONFIGURATIONS 9 HNG CONFIGURATIONS STANDALONE BROADBAND BROADBAND AND VOICE UNI-D Port UNI-D Port NBN Co’s NTD NBN Co’s NTD POWER POWER RESET RESET WAN (Red) port WAN (Red) port of the HnG of the HnG LAN (Yellow) port of LAN (Yellow) port of (Green) phone port of the HNG or via Wi-Fi...
- Page 6 10 HNG CONFIGURATIONS HNG CONFIGURATIONS 11 STANDALONE ANALOGUE VOICE BROADBAND & ANALOGUE VOICE UNI-V Port UNI-D Port (HNG will function as a DECT cordless base-station only – cordless handset is NBN Co’s NTD not provided) UNI-V Ports POWER RESET Connect the HNG directly to the relevant UNI-V port or alternately to a phone NBN Co’s NTD socket already connected to the UNI-V...
- Page 7 SUPPORT: 1300 739 331...
