Marshall Amplification Kilburn II User Manual

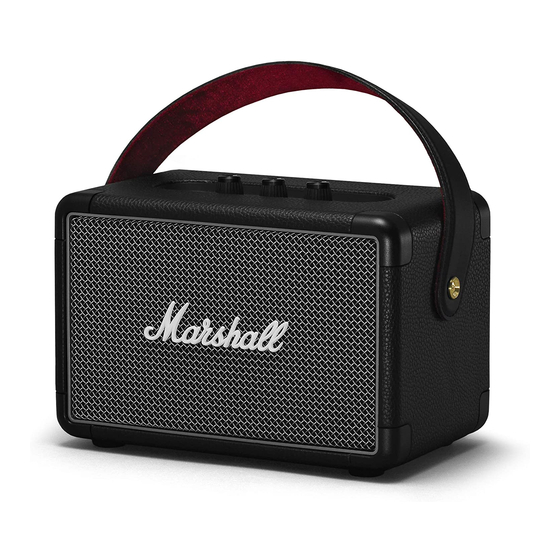

Portable stereo loudspeaker
Hide thumbs Also See for Kilburn II:

Advertisement

Table of Contents

KILBURN II - PORTABLE STEREO LOUDSPEAKER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kilburn II and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification Kilburn II

Summary of Contents for Marshall Amplification Kilburn II

  • Page 1 KILBURN II - PORTABLE STEREO LOUDSPEAKER USER MANUAL...
  • Page 2 LEGAL & TRADEMARK NOTICE • Design of device and packaging are intellectual properties of Zound Industries International AB and Marshall Amplification Plc. © All Rights Reserved. Zound Industries International AB is hereinafter referred to as “Zound Industries” or “manufacturer”. •...

  • Page 3: Table Of Contents

    LEGAL & TRADEMARK NOTICE 002. DISCLAIMER BOX CONTENTS 004. GENERAL DESCRIPTION 005. CHARGING THE INTERNAL BATTERY 007. 008. TURNING THE KILBURN II ON/OFF 009. MANY WAYS TO CONNECT 010. CONNECTING VIA BLUETOOTH (PAIRING) 011. CONNECTING VIA AUX INPUT 012. BATTERY LEVEL INDICATOR 013.
  • Page 4 BOX CONTENTS 001. Marshall Kilburn II portable stereo loudspeaker 002. Quick start guide 003. Important safety instructions 004. Power cord 001. 003. 002. 004. 004.

  • Page 5: General Description

    GENERAL DESCRIPTION 001. Bluetooth button 002. Power/volume knob 003. Bass knob 004. Treble knob 005. Battery level indicator 002. 001. 004. 003. 005. 005.
  • Page 6 GENERAL DESCRIPTION CONTINUED 006. Detachable carry strap 007. Rear driver 008. Bass port 009. Backplate 010. Aux input for 3.5 mm plug 011. Power jack 012. Power cord 006. 007. 008. 009. 010. Note: date code and serial number sticker located here.

  • Page 7: Charging The Internal Battery

    Important: Always ensure that the power cable, plug and speaker are compatible with your mains supply and wall socket. The Kilburn II is equipped with an internal battery with a playing time for more than 20 hours at mid volume. Charging the battery from empty to full charge takes approximatly 2.5 hours.

  • Page 8: Turning The Kilburn Ii On/Off

    TURNING THE KILBURN II ON/OFF The volume knob doubles as an on/off knob. 001. Turn the volume knob clockwise to the desired volume and the speaker turns on. 002. The battery level indicator shows the battery charge. 003. Turn the volume knob fully counter-clockwise until you hear a click to turn off the speaker.

  • Page 9: Many Ways To Connect

    MANY WAYS TO CONNECT There are many ways to connect to your Kilburn II. The connection can be wireless via Bluetooth or by using a cable with a 3.5 mm stereo plug. Caution: Make sure that the volume is set to low on both...

  • Page 10: Connecting Via Bluetooth (Pairing)

    004. Press play on your audio device. Kilburn II can be connected to two Bluetooth devices at the same time. Playing a connected Bluetooth device will make it the selected audio source. If second Bluetooth device was playing at that time, it is paused.

  • Page 11: Connecting Via Aux Input

    001. Connect a 3.5 mm stereo plug to the input labelled AUX on the back of speaker. 002. Connect the other end of the cord to the audio output on your audio device. 003. Press play on your audio device. 002. 001. Note: Audio cables are not included in the Kilburn II. 011.

  • Page 12: Battery Level Indicator

    BATTERY LEVEL INDICATOR The battery level indicator shows the battery charge of the Kilburn II. The indicator is dimmed during normal operation to save battery power. Turning any knob will make the indicator light up. When charging the battery, the indicator displays the battery charge with a rising animation.

  • Page 13: Adjusting The Volume/Bass/Treble

    ADJUSTING THE VOLUME/BASS/TREBLE The Kilburn II has three knobs for adjusting the audio. 001. Volume knob 002. Bass knob 003. Treble knob 001. 002. 003. 001. 002. 003. Note: The volume knob is also the on/off switch. 013.

  • Page 14: Standby Mode

    STANDBY MODE If the Kilburn II is left unused for 10 minutes the speaker saves battery charge by going into standby. In this mode all indicators are off and the speaker does not respond to Bluetooth connection. 001. Push the Bluetooth button to wake the speaker from standby mode.

  • Page 15: Technical Information

    TECHNICAL INFORMATION Acoustic specification • Portable stereo loudspeaker with bass reflex system • Digital class D amplifiers: 2 X 8 W + 1 X 20 W • Tweeters: 2 X 20 mm dome tweeters • Woofer: 1 X 4" woofer •...

  • Page 16: Troubleshooting

    ACTION The Kilburn II does The battery is discharged. Connect the power cord to the not turn on. Kilburn II and a working wall socket. There is no audio The wrong audio source is Ensure that the device is selected.
  • Page 17 There is a strong electric field Items such as microwave surrounding the Kilburn II. ovens, wireless network adapters, fluorescent lights and gas cookers use the same frequency range as the Bluetooth device.
  • Page 18 Too much bass/treble on the Lower the bass/treble on the speaker. speaker. Erratic Interference from another Move the Kilburn II to another performance electronic device. spot. Turn off or move the interfering electronic device. Notes: A Bluetooth device could cause audio-related or technical faults, depending on use, in the following cases: •...
  • Page 19 WWW.MARSHALLHEADPHONES.COM 019.
