Summary of Contents for Loctite ZETA 7401

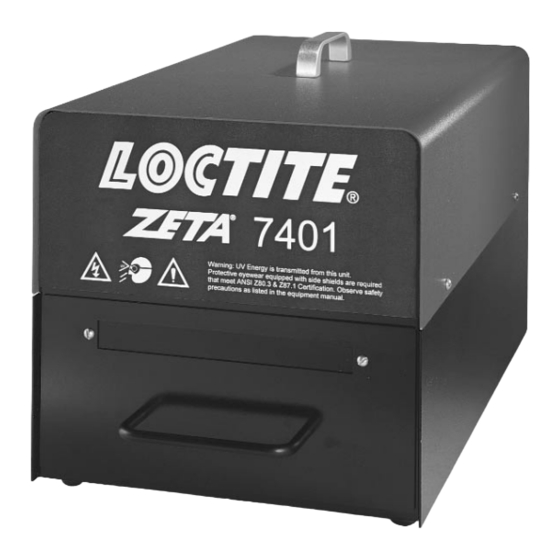

- Page 1 ® EQUIPMENT O P E R A T I O N M A N U A L Loctite ® ZETA ® 7401 UV Chamber 98039...
-
Page 2: Table Of Contents
Contents Page No. Please observe the following ........1 Emphasized Sections . -
Page 3: Please Observe The Following
UV safety is the responsibility of the user, especially when operating the model ZETA ® 7401 in a non-standard configuration. When in doubt about UV safety, consult a Loctite technical specialist at 1-800-LOCTITE (562-8483). List of Parts Supplied • UV Chamber •... -
Page 4: Description
Because of its reliability and simplicity, it is well suited for most production operations. The system irradiates medium power, long wave, ultraviolet light over an 8 x 8 inch work area. An optional visible light enhanced lamp is also available for use with Loctite ® visible light curing products (refer to spare parts list, Section 8.2 ). -
Page 5: Technical Data
Any damage should be reported immediately to the carrier. Refer to the list of supplied parts (section 1.3) compare contents received to list of parts supplied. Report any missing parts promptly to the Loctite customer service department at 1-800-LOCTITE (562-8483). Installation and Start-up The Loctite ®... -
Page 6: Operation
Reducing the amount of time the part is in the drawer will limit the part heating. The UV power should be monitored regularly using a radiometer (Loctite ®... -
Page 7: Troubleshooting
Troubleshooting Symptom Corrective Action/Possible Cause Lamp does not light, power switch 1. Make sure the system is plugged in. does not light, and fans do not start. 2. Check the fuse in the power cord receptacle. Lamp does not light, power 1. -
Page 8: Care And Maintenance
Inspect the lamp sockets when installing a new lamp and replace if corroded. Heat generated by poor connections can reduce lamp life. Lamp should be replaced as required. It is recommended that the lamp output be monitored regularly with a radiometer to insure that the product is being completely cured. The Loctite ® Zeta ®... -
Page 9: Documentation
Documentation Wiring Diagram Lamp B L N Lamp use mechanical Ballast crimp to hold wires together before inserting and tightening screw. Chassis Nut Connection Use Crimp caps for unused inputs and tywrap together. Crimp connector Black Fuse Hourmeter Power Chassis White Figure 2... -
Page 10: Spare Parts List
Documentation (continued) Spare Parts Item Part Number UV Enhanced Metal Halide Lamp 97246 Visible Light Enhanced Metal Halide Lamp 983050 UV Safety Glasses 97210 Pair of Cotton Gloves 984070 Adhesive-Backed Work Surface Pad 985298 ZETA ® 7401 Manual 985274 Lamp Ignitor 988174 Lamp Holder Socket 980872... -
Page 11: Warranty
Warranty Loctite expressly warrants that all products referred to in this Instruction Manual for the ZETA ® 7401 UV Curing Flood System (hereafter called “Products”) shall be free from defects in materials and workmanship. Liability for Loctite shall be limited, as its option, to replacing those... - Page 12 Av. Prof. Vernon Krieble, 91 06690-11-Itapevi São Paulo-Brazil www.loctite.com Loctite is a trademark of Loctite Corporation, U.S.A. © Copyright 2001. Loctite Corporation. All rights reserved. Data in this manual is subject to change without notice. P/N: 985274 Rev B, 08/2007 Company...
