2.0 Electrical installation

6
Unit installation
1. Plug in power cable (and fit the plug type
that suits your requirement, included in unit
package).
2. Plug in communication cable between
communication module and air unit: the cable
can not be incorrectly fitted.
Important:
If the communication module is mounted on
a different floor to the wireless remote, please
check if the deck construction contains elements
that will reduce transmission/receiving strength
(i.e. aluminum foil clad insulation material, or
Communication module can also be
connected to USB or ethernet.
VIEWA102
metal grid, if deck is cast in concrete). If any such
disturbances are present, the communication
module should be placed on same floor as thr
wireless remote control.
If an ethernet connection is already available in
the vicinity of the air unit, place the communi-
cation module close to this, to allow for future
connection to PC.

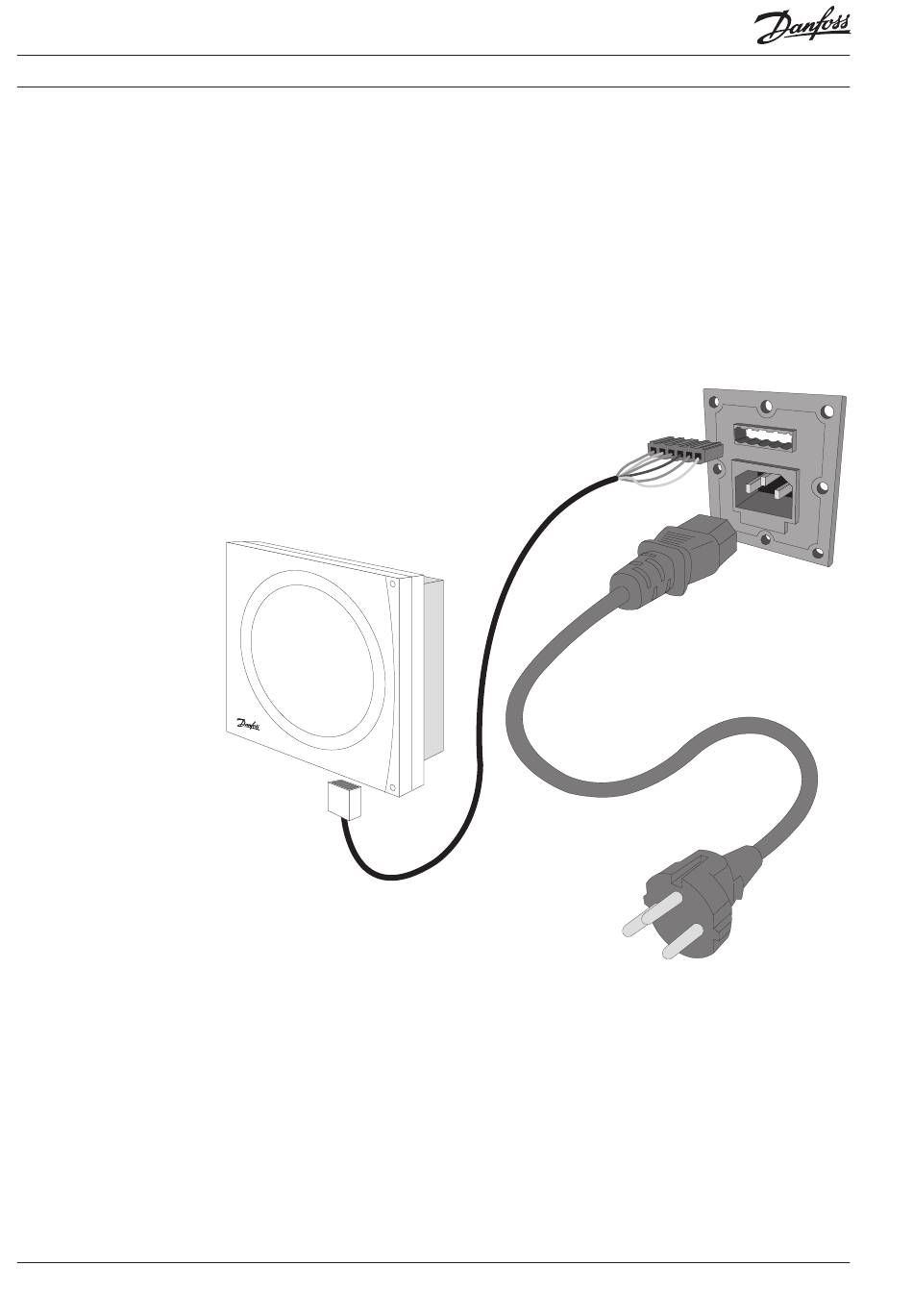

Communication cable
Power cable
Connection board
(located on under-
side of wall units, or
in end of attic units)
