Unit installation
Instructions for wall-mounted air units w
Place the wall mounting bracket on wall in
desired position, 75 mm from the bottom of the
bracket to the top of the unit, mark up- and drill
holes. Use screws suitable for the wall surface
(screws are not included).
Important:
Check alignment with spirit level.
Now hang unit onto wall
bracket, attach adhesive
foam parts to lower rear
location on unit backplate
(absorbs potential vibrations
from unit to wall). Mount the siphon on the wall
below the unit.
Now fit the hose from the siphon onto the 3/4"
drain connecting piece using the attached hose
clip. Lead the connected drain hose to the drain,
allowing for a min. slope of 1 cm/meter. The
condensate line must be insulated where risk of
freezing occurs.
Important: Remove front panel, and foam
front panel. Fill condensate tray, check drainage
visually and re-assemble.

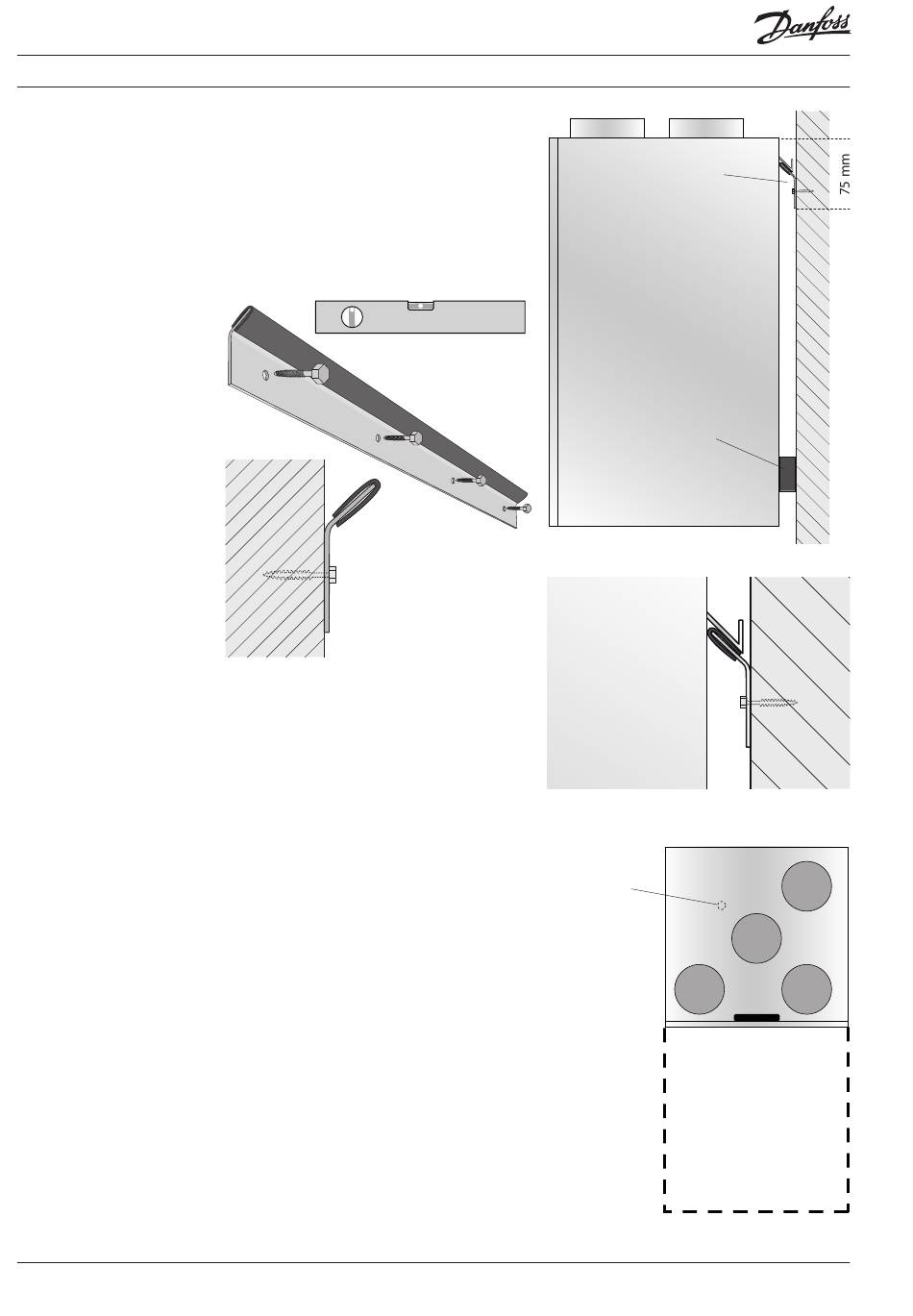

VIEWA102
& w
1 2
+
Detail A
Wall unit top view
Condensate
connection
located here
(below unit)
Important
Allow for 60 cm
free space in
front of unit, to
allow for service
access.
A
Foam part
