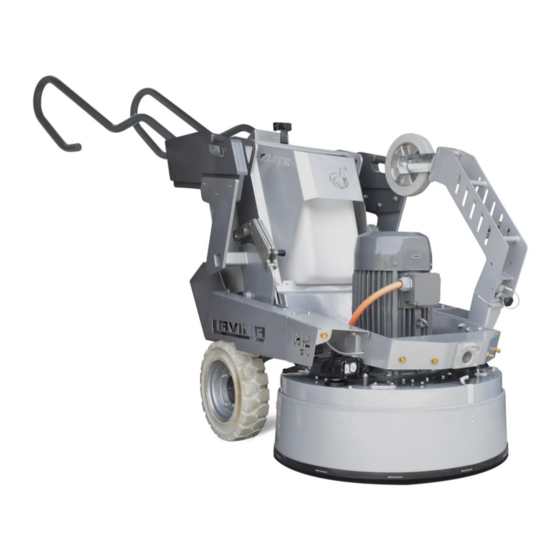

LAVINA ELITE L3213EB
User Manual
Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAVINA ELITE L3213EB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Superabrasive LAVINA ELITE L3213EB

Summary of Contents for Superabrasive LAVINA ELITE L3213EB

  • Page 1 LAVINA ELITE L3213EB User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
  • Page 2 ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB /3213EBHV 1/2022...

  • Page 3: Warranty And Returns

    Е machines may be returned, subject to the following terms: The Lavina In no case, a machine is to be returned to Superabrasive Inc. for credit or repair without prior authorization. Please contact Superabrasive Inc. or your local distributor for an authorization and issuance of a return authorization number.

  • Page 4: Table Of Contents

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB /3213EBHV 1/2022 WARRANTY AND RETURNS ............... 3 8.5 SEPARATING THE HEAD FROM THE CARRAGE........23 1. GENERAL INFORMATION ..............5 8.6 REPLACING THE MOTOR ..............24 MANUFACTURER ..................5 8.7 FAULT DIAGNOSIS INVERTER YASKAWA V1000 ....... 25 GENERAL DESCRIPTION ................

  • Page 5: General Information

    Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.

  • Page 6: Electrical Connection

    Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). CUSTOMER SERVICE For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at: www.superabrasive.com, where you can download a copy of this manual.

  • Page 7: Safety Istructions

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 2. SAFETY ISTRUCTIONS RECOMMENDED USE NOTE: In order to reduce all consequences of the The Lavina® machine is designed and manufactured to above-mentioned risks, advise that machine grind and polish concrete, terrazzo and natural stone floors.

  • Page 8: Operator

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 All personnel in the immediate work area must wear safety Always wear safety gloves when changing the tools. glasses with side shields. Always wear clothes suitable for the work environment.

  • Page 9: Handling The Guard

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 3.4 HANDLING WEIGHTS The machine has two built in weights. Each one could stay in four different positions (Fig. 3.6) Put the weights in pos.1 when the machine is in position to change the working tools.

  • Page 10: Dismounting The Guard

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 3.5.1 DISMOUNTING THE GUARD After dismounting the guard the machine could pass through 32 inch (815 mm) wide doors. 1. Unscrew the two bolts about 1-1.5 turn /Fig. 3.9-2; Fig.

  • Page 11: Lifting

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 3.7 LIFTING Lifting the machine by crane is possible by using the handles of the carriage (fig. 3.11). The design is rated only for the weight of the machine. Do not lift any other loads on the machine.

  • Page 12: Adjusting And Mounting Tools

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 Figure 4.3 Figure 4.4 Figure 4.5 4.3 ADJUSTING AND MOUNTING TOOLS The Holder A64 in the LAVINA® E can work with either 3 or 6 rubber buffers, which will alter its elasticity (3 will be more flexible than 6).

  • Page 13: Control Board

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 4.5 CONTROL BOARD 1. Emergency button used to stop the motor in case of 6. LED lights switch emergency 2. STOP button which stops the motor. 7. QR code. When you scan it with your phone for 3.

  • Page 14: Alarm

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 4.9 ALARM The Alarm light ((Fig.4.9 -15) will light if the inverter goes in alarm mode. The most common failure is motor overload. To reset the mode, push the reset button ((Fig.4.9-14).
  • Page 15 Exceptional flexibility with a thick layer of flexible foam. Quick and easy magnetic attachment directly to the grinding heads. Offered in 9” and 13” – compatible with lavina grinders and trowels Use Only Superabrasive’s Recommended Tools. For More Tooling Options, Visit www.superabrasive.com...

  • Page 16: Maintenance And Inspection

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 7. MAINTENANCE AND INSPECTION Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they cause damage to the machine. Most importantly, check and clean the tool plate connections, power cord and plugs, vacuum hoses and water tank.

  • Page 17: Lavina®32Eb Electrical Schemes With Yaskawa Inverter 200-240 Volt

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 LAVINA®32EB ELECTRICAL SCHEMES WITH YASKAWA INVERTER 200-240 VOLT The motor is connected in “Delta” (triangle) 230 Volt, reminder for the wire connection of the motor.
  • Page 18 ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 Control circuit Inputs and Outputs...

  • Page 19: Lavina ® 32Ebhv Electrical Schemes With Yaskawa Inverter 380-480 Volt

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 ® LAVINA 32EBHV ELECTRICAL SCHEMES WITH YASKAWA INVERTER 380-480 VOLT The motor is connected in “Star” 380 Volt, reminder for the wire connection of the motor.
  • Page 20 ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 Control circuit Inputs and Outputs...

  • Page 21: Troubleshooting

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 8.1 REPLACING POWER CORD AND PLUGS When replacing the power cord or plugs, always use cords and plugs with the same specifications as the original ones.

  • Page 22: Disassembling And Mounting Tool Holders To Changing Buffers And Elastic Element

    When the tool holder and adapter are dismounted, you can change the top key transmitting the movement to the planetary chain. Figure 8.3.9 Figure 8.3.10 8.4 DISASSEMBLING AND MOUNTING TOOL HOLDERS TO CHANGING BUFFERS AND ELASTIC ELEMENT When the TOOL HOLDER is disassembled you can change defective parts – elastic element, buffers, etc. Lift the locking pin (Fig.8.4.1) to dismount the retaining washer (Fig.8.4.2).

  • Page 23: Separating The Head From The Carrage

    Superabrasive Owner’s Manual Original Language – Lavina ® 3213EB/3213EBHV 1/2022 part of the holder in case of broken buffers and elastic element will not function! You can change the butterfly of the holder without dismounting the holder of the machine.

  • Page 24: Replacing The Motor

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 6. Unscrew the four bolts with nuts /pos.1/ to remove the bridge with mist nozzles and holders for third wheel. 7. Unscrew the two nuts /pos.2, Fig. 8.5.7 /. Now it is possible to separate the head by removing the bolts. This will require two people: one person holds the carriage while the other pulls the bolts.

  • Page 25: Fault Diagnosis Inverter Yaskawa V1000

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8.7 FAULT DIAGNOSIS INVERTER YASKAWA V1000 Pages are referring to Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual...
  • Page 26 ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022...

  • Page 27: Correcting Sag Of Used Planetary Chain

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8.8 CORRECTING SAG OF USED PLANETARY CHAIN Unscrew the bolts and nuts of the maintenance window (see Fig.8.8.1,pos.1;pos.2) from the front of the main head and lift the machine into tool-changing position. Manually turn the holders in order to turn the main head, stop when the chain link and the chain tensioner can be seen through the window.

  • Page 28: Mounting New Planetary Chain

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8.9 MOUNTING NEW PLANETARY CHAIN The planetary chain is replaced with new one when the step/drive of the chain tensioner is finished or there is a loss of integrity of the chain. Take off the maintenence window (see Fig.8.8.1) from the front of the main head (Fig.8.8.2)

  • Page 29: Tensioning And Replacing The Transmission Belt

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8.11TENSIONING AND REPLACING THE TRANSMISSION BELT The transmission machine maintenance-free timing belt. change the belt, remove all holders Figure 8.11.2 and dismount their adaptors. Dismount sealing. Carefully check the friction...

  • Page 30: Replacing The Pulleys

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 8.12 REPLACING THE PULLEYS Fully loosen the belt and remove (see the previous section). After removing the belts, unscrew the four bolts of the pulleys on top of the disc (Fig. 8.12.1) and replace.

  • Page 31: Disposal

    1/2022 9. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 10. MANUFACTURER’S CONTACTS If you need to contact Superabrasive Inc.

  • Page 32: Spare Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 11.1 LAVINA®3213E GENERAL PARTS Item No. Description L3213EB10.00.00 Main Head L3213EBHV10.00.00 Main Head L32E10.00.23 Bush L32-00.00.00.00.02 Bolt 30301240134 Nut M12DIN6923 L32E20.00.00 Carriage L32EHV20.00.00 Carriage A50.00.00.00...

  • Page 33: Lavina®3213E Third Wheel

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.2 LAVINA®3213E THIRD WHEEL Item No. Description Pcs. L32RE04.10.00 Frame 30312000053 Wheel 30301230049 Screw M10x30DIN912 30301221005 Washer M10DIN125A 30301240092 Nut M10DIN985 11.3 LAVINA®32EB FRONT FRAME PARTS Item No. Description Pcs.
  • Page 34 ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022...

  • Page 35: Lavina3213Eb Carriage

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.4 LAVINA3213EB CARRIAGE Item No. Description Pcs. Item No. Description Pcs. L32EB24.00.00 Control board assembly L32E20.30.00 Right Weight Support L32EBHV24.00.00 Control board assembly 21.1 30329000008 Knob BO751-107-25M08 30301210051 Bolt M6X16DIN6921 L32E20.40.00...

  • Page 36: Lavina®3213Eb Frame And Steering Bracket Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.5 LAVINA®3213EB FRAME AND STEERING BRACKET PARTS Item No. Description Item No. Description Pcs. Spring L32B- L32E23.20.00 Left Bracket 30317000010 02.03.00.00.02 L32B- Sprocket L32C.23.00.21 Housing 02.03.00.00.01-01 30329000000 Swivel Bolt GN212.3-28-M12-E...

  • Page 37: Top Cover L32Eb Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.9 TOP COVER L32EB PARTS Item No. Description Pcs. L32ЕB10.70.00 Gard Assembly L32Е10.03.00 Vacuum Hose D76X350PU Soft Vacuum Hose L32EB19.00.00 Top Cover Assembly L32E10.06.00 Rear Top Cover Base Set Bolt М8X16DIN6921 30301210072 Bolt М6X12DIN6921...

  • Page 38: Top Cover L32Eb

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.11 TOP COVER L32EB Item No. Description Pcs. L32EB19.10.00-K Top Cover Washer D35x1.4 30301221022 30301210051 BoltM6X16DIN6921 30329000041 Knob Bolt M6X16 Sealer L32E19.00.11 11.12 LAVINA® 3213E PLANETARY CHAIN PARTS Item No.

  • Page 39: Lavina® 3213E Bottom Cover Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.13 LAVINA® 3213E BOTTOM COVER PARTS Item No. Description Pcs. A64.00.00 Tool Holder A64 A42.03.00 Adaptor Bolt М8х16DIN6921 30301210072 30309000000 Felt Ring 30302000005 V-Ring Type A Bolt М6х16DIN6921 30301210051 L3213E10.08.00 Bottom Cover Assembly L3213E10.08.01...

  • Page 40: Lavina® 3213E Transmission Belt Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.15 LAVINA® 3213E TRANSMISSION BELT PARTS Item no. Description Pcs. Item no. Description Pcs. 30308000148 Timing Belt 28008MHL70 L32C-14.20.04 30301210019 Bolt M16X35DIN933 30301240099 Nut M10DIN934 L3213E11.10.00 Central Pulley Assembly L38G-10.00.07 Support Bolt М8х25DIN6921...

  • Page 41: Lavina® 3213E Central Shaft Bearning Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.16 LAVINA® 3213E CENTRAL SHAFT BEARNING PARTS Item No. Description Pcs. 30301230002 Screw M6X16DIN7991 L32D-11.00.03 30303000012 Roller Assembly 6013 L32D-11.00.05-K Extension Shaft L32D-11.00.02 Central bushing L32D 30303000009 Roller Assembly 3208 Retaining Ring А80DIN472...

  • Page 42: Lavina®32E Motor Fan Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.19 LAVINA®32E MOTOR FAN PARTS Item No. Description Pcs. 30305000309 Fan Cover 30305000310 30301210009 Bolt M6X12DIN933 30301221003 Washer M6DIN125A...

  • Page 43: Lavina®3213Eb; 3213Ebhv Control Board Assembly

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.20 LAVINA®3213EB; 3213EBHV CONTROL BOARD ASSEMBLY Item No. Description Pcs. Item No. Description Pcs. L3213EB24.10.00 Control board assembly 30311000700 Button L3213EBHV24.10.00 Control board assembly 30311000730 Button 30313000173 USB charger 30313000153...

  • Page 44: Lavina®3213Eb Control Box

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.21 LAVINA®3213EB CONTROL BOX Item No. Description Pcs. Item No. Description Pcs. L32EB25.10.01 Metal box (only) L32E25.20.02 Rail L=180 H=7,5 L32E25.20.01 Metal plate (only) 11.1 L16EU21.12.02 Rail L=50 H=7,5 30311000401 Cable gland M16x1,5 L20EB25.51.00...

  • Page 45: Lavina®3213Ebhv Control Box

    ® Superabrasive Owner’s Manual Original Language – Lavina 3213EB/3213EBHV 1/2022 11.22 LAVINA®3213EBHV CONTROL BOX Item No. Description Pcs. Item No. Description Pcs. L32EB25.10.01 Metal box (only) 10.2 30311000613 Circuit breaker 1P 6A L32EHV.25.20.01 Metal plate (only) L20EB25.51.00 Cable X1 30311000401 Cable gland M16x1.5...
